HIKVISION DS-7608NI-E1 User Manual

Network Video Recorder User Manual
17

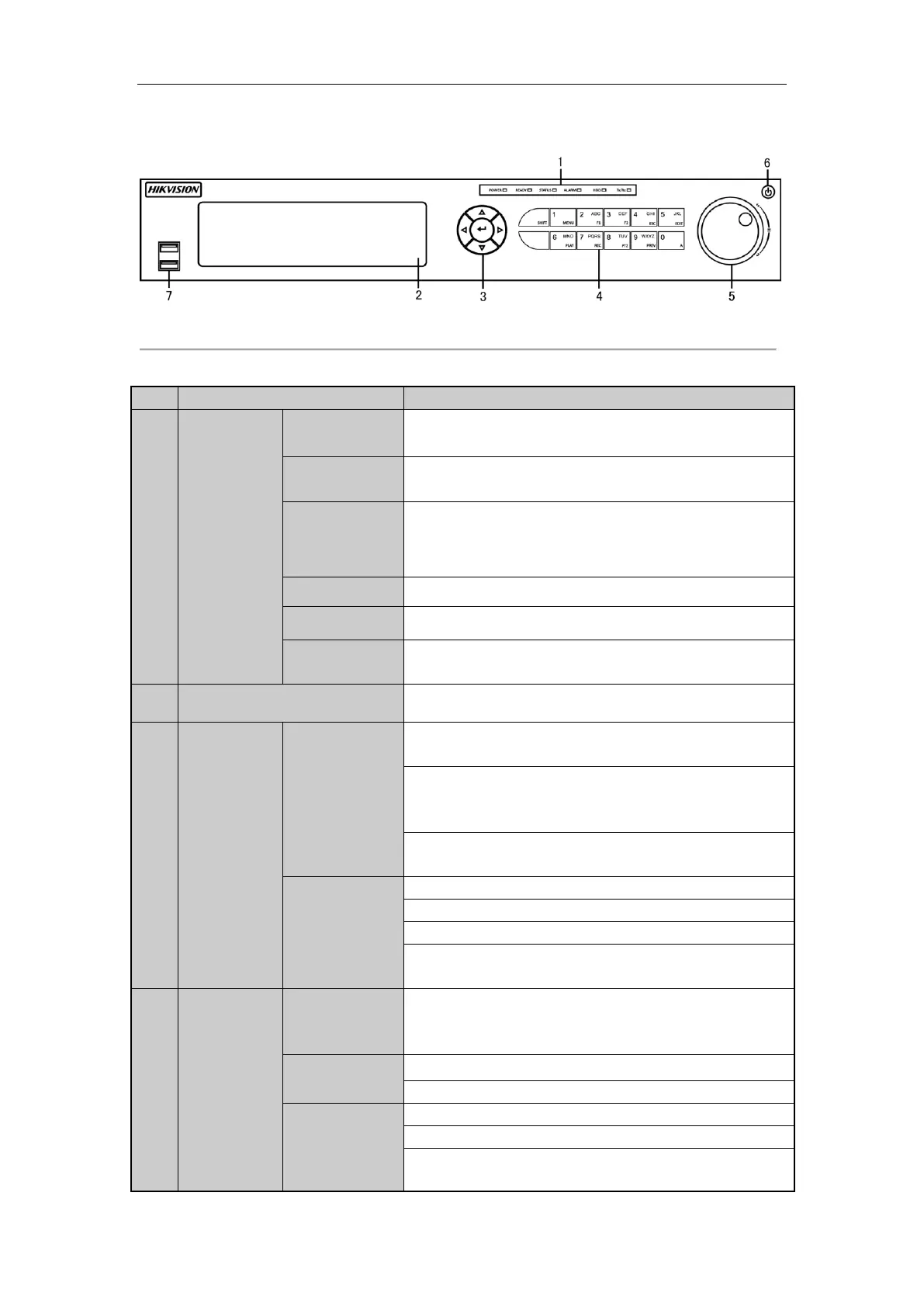

DS-7700NI-E4 Series
Figure 1. 2 DS-7700NI-E4 Series
Table 1. 2 Description of Control Panel Buttons
No.
Name
Function Description
1
Status
Indicators
POWER
Turns green when NVR is powered up.
READY
Turns green when the device is running normally.
STATUS
Turns green when the IR remote control is enabled;
Turns red when the function of the composite keys (SHIFT) are
used.
ALARM
Turns red when there is an alarm occurring.
HDD
Flickers red when HDD is reading/writing.
Tx/Rx
Flickers green when network connection is functioning normally.
2
DVD-R/W
Slot for DVD-R/W.
3
Control
Buttons
DIRECTION
Navigates between different fields and items in menus.
In the playback mode, use the Up and Down buttons to speed up
and slow down recorded video. Use the Left and Right buttons to
select the next and previous video files.
Cycles through channels in live view mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame playback
mode.
4
Composite
Keys
SHIFT
Switches between the numeric or letter input and functions of the
composite keys. (Input letter or numbers when the light is out;
Realize functions when the light is red.)
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button in a list field to select all items.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
