Network Video Recorder User Manual
83
5.7 Configuring Holiday Recording
Purpose:
Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for
recording on holiday.
Steps:
1. Enter the Record setting interface.
Menu > Record > Holiday

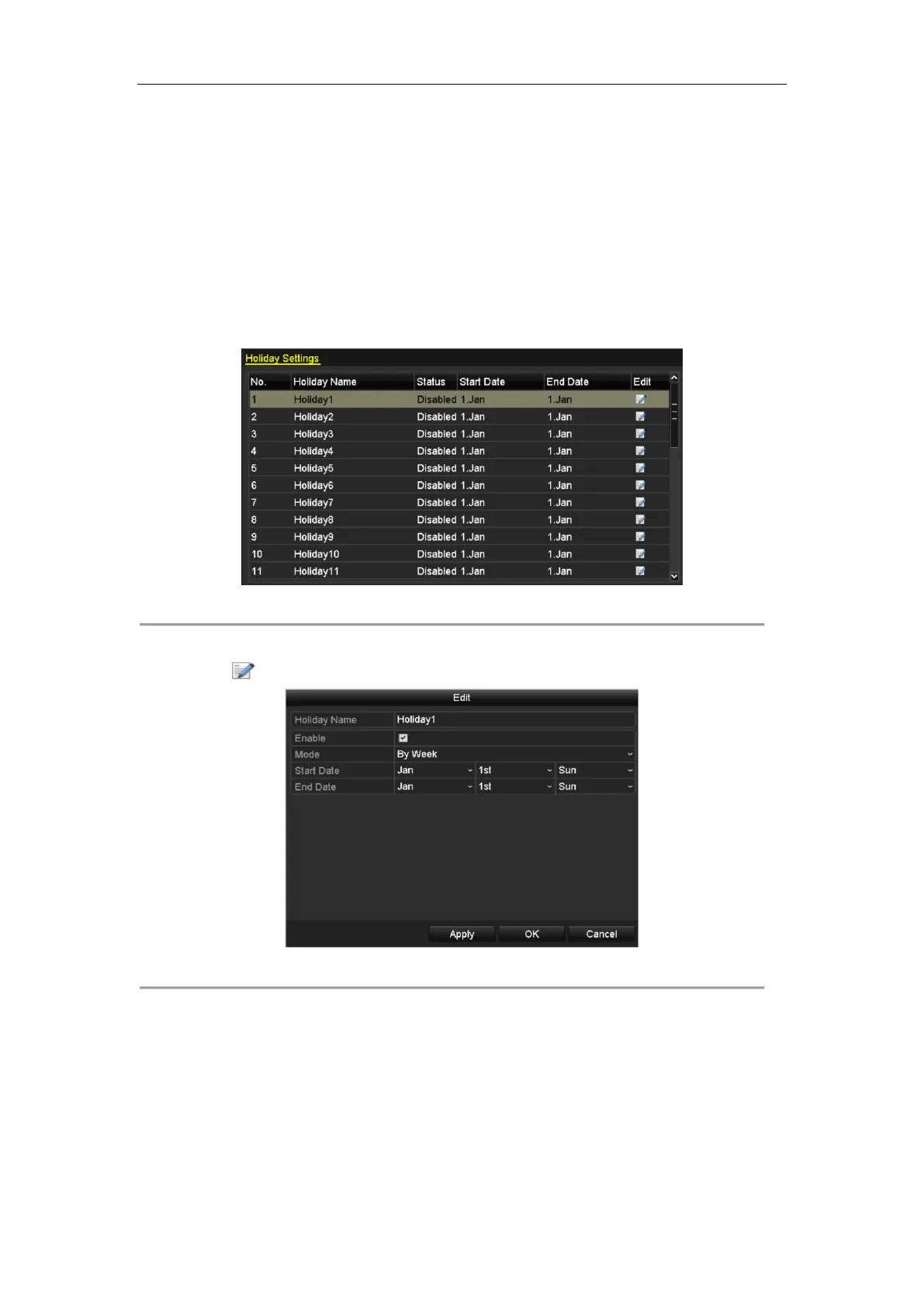

Figure 5. 20 Holiday Settings
2. Enable Edit Holiday schedule.
1) Click to enter the Edit interface.
Figure 5. 21 Edit Holiday Settings
2) Check the checkbox after Enable Holiday.
3) Select Mode from the dropdown list.
There are three different modes for the date format to configure holiday schedule.
4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.
3. Enter Record Schedule settings interface to edit the holiday recording schedule. See Chapter 5.2 Configuring
Recording Schedule.

HIKVISION DS-7608NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	16 channels
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Supported graphics resolutions	1024 × 768, 1280 × 1024, 1920 × 1080
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1000 g
