HIKVISION DS-7608NI-E2/8P Quick Operation Guide

Quick Operation Guide of Network Video Recorder
21

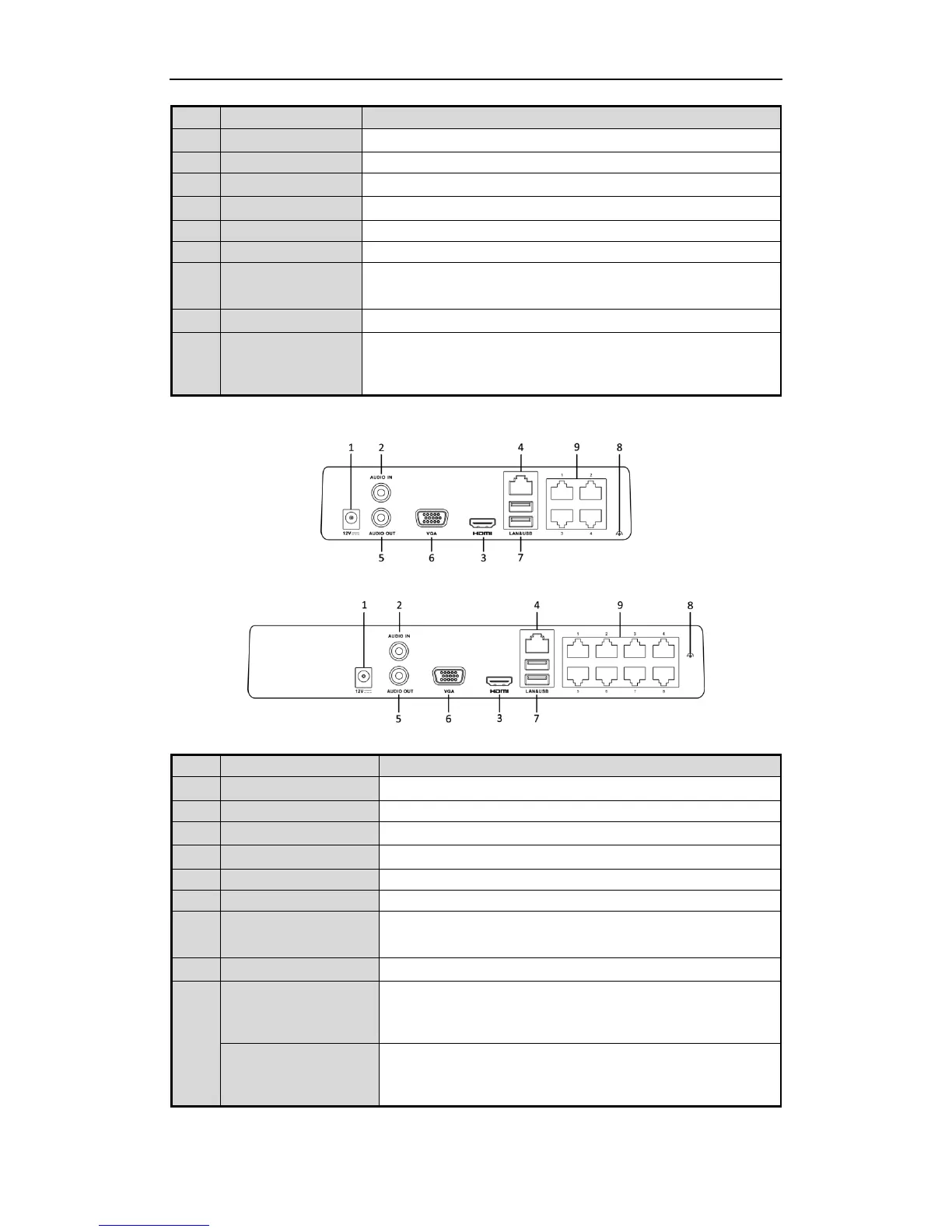

No.
Item
Description
1
Power Supply
12VDC power supply.
2
Audio In
RCA connector for two-way audio input.
3
HDMI Interface
HDMI video output connector.
4
Network Interface
Connector for LAN (Local Area Network).
5
Audio Out
RCA connector for audio output.
6
VGA Output
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB mouse
and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Antenna Interface
(for DS-7100NI-SL/W
only)
Needs to be connected with antenna if you want to configure and get
connection via WLAN.
DS-7100NI-SN/N and DS-7100NI-SN/P
DS-7104NI-SN/N, DS-7104NI-SN/P
DS-7108 & 7116NI-SN/N, DS-7108 & 7116NI-SN/P
No.
Item
Description
1
Power Supply
12VDC power supply.
2
Audio In
RCA connector for two-way audio input.
3
HDMI Interface
HDMI video output connector.
4
Network Interface
Connector for LAN (Local Area Network).
5
Audio Out
RCA connector for audio output.
6
VGA Output
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Network Interfaces with
switch function
(for DS-7100NI-SN/N)
Network interface for the cameras.
Network Interfaces with
PoE function (for
DS-7100NI-SN/P )
Network interface for the cameras and to provide power over Ethernet.

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
