HIKVISION DS-7608NI-I2/8P User Manual

Network Video Recorder User Manual
202

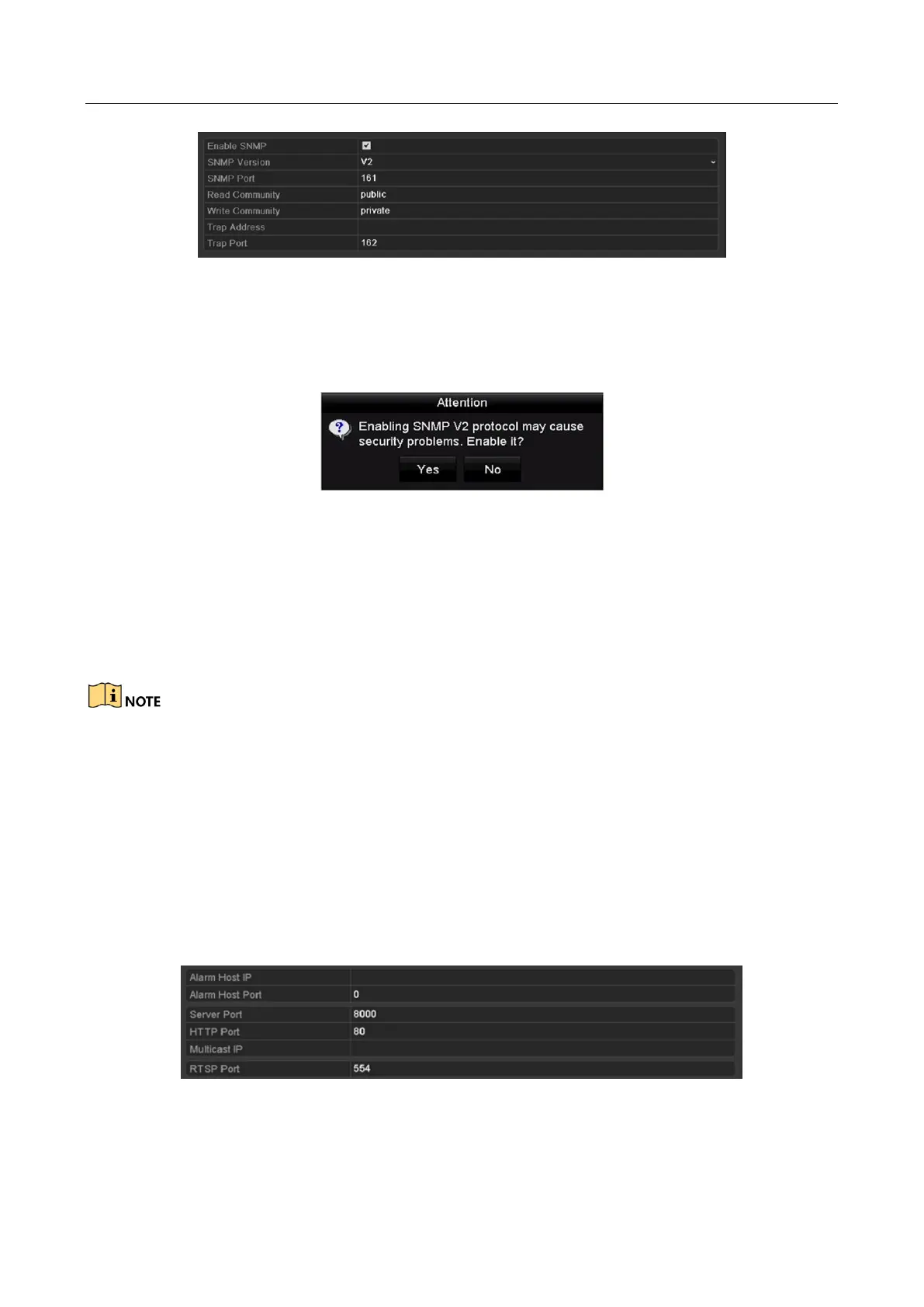

Figure 12-9 SNMP Settings Interface
Step 3 Check the SNMP checkbox to enable this feature.
Step 4 The enabling of SNMP may cause security problems. Click Yes to continue or No to cancel
the operation.
Figure 12-10 SNMP Settings Interface
Step 5 When you choose the Yes option in step4, configure the following SNMP settings:
Trap Address: IP Address of SNMP host.
Trap Port: Port of SNMP host.
Step 6 Click the Apply button to save and exit the interface.
Before setting the SNMP, please download the SNMP software and manage to receive the device
information via SNMP port. By setting the Trap Address, the NVR is allowed to send the alarm
event and exception message to the surveillance center.
12.2.5 Configuring More Settings
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the More Settings tab to enter the More Settings interface.
Figure 12-11 More Settings Interface
Step 3 Configure the remote alarm host, server port, HTTP port, multicast, RTSP port.

HIKVISION DS-7608NI-I2/8P Specifications

General

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Number of fans	1 fan(s)
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format system	NTSC, PAL
Resolution at capture speed	1920x1080@60fps
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
