HIKVISION DS-7608NI-I2/8P User Manual

Network Video Recorder User Manual
205
3) Click OK to save the settings.
OPTION 2: Create the authorized certificate
1) Click the Create button to create the certificate request.
2) Download the certificate request and submit it to the trusted certificate authority for
signature.
3) After receiving the signed valid certificate, import the certificate to the device.
Step 6 There will be the certificate information after you successfully create and install the
certificate.

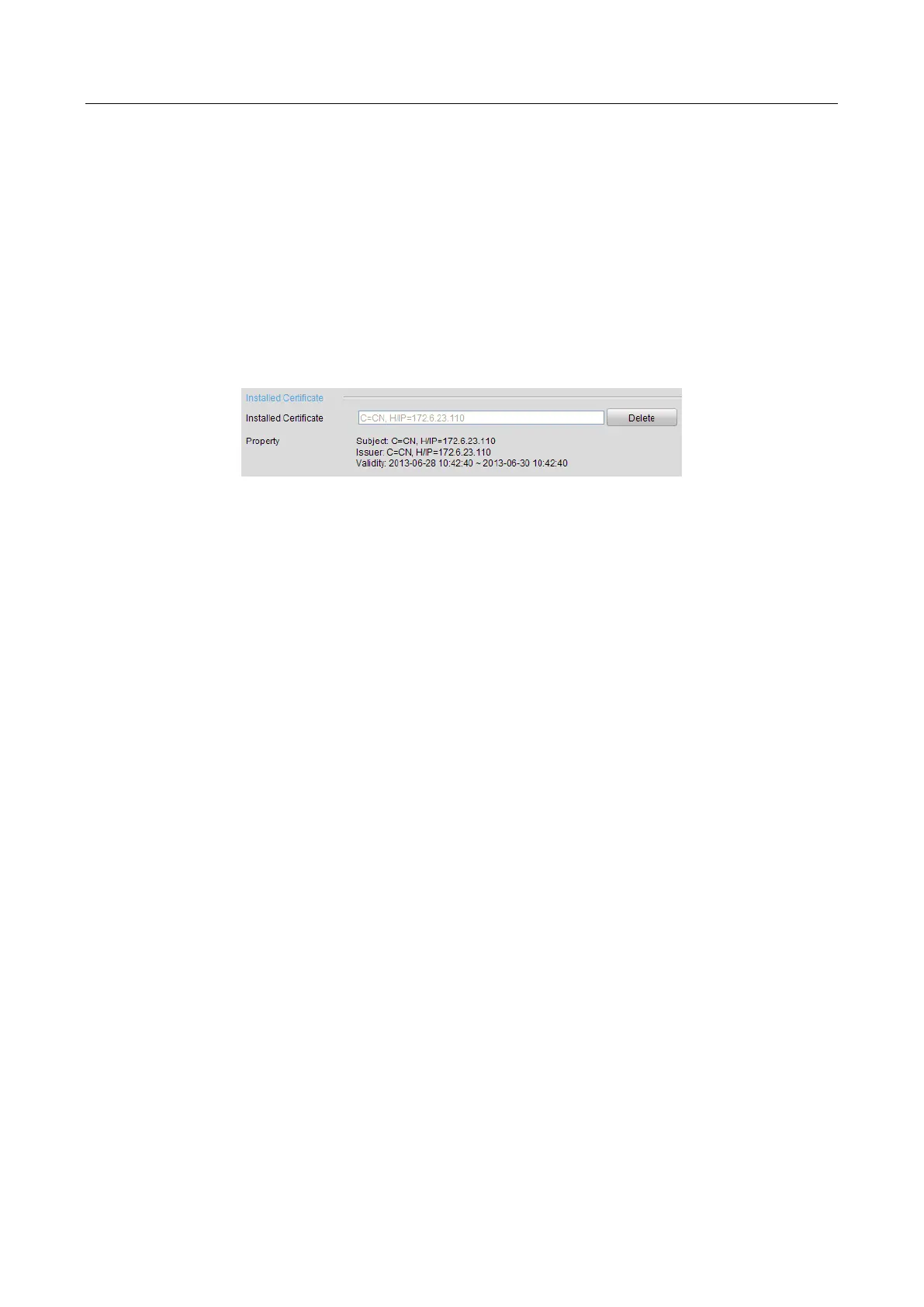

Figure 12-15 Installed Certificate Property
Step 7 Check the checkbox to enable the HTTPS function.
Step 8 Click the Save button to save the settings.
12.2.7 Configuring Email
Purpose:
The system can be configured to send an Email notification to all designated users if an alarm
event is detected, etc., an alarm or motion event is detected or the administrator password is
changed.
Before configuring the Email settings, the NVR must be connected to a local area network (LAN)
that maintains an SMTP mail server. The network must also be connected to either an intranet or
the Internet depending on the location of the e-mail accounts to which you want to send
notification.
Step 1 Enter the Network Settings interface.
Menu >Configuration> Network
Step 2 Set the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the
Network Settings menu, as shown in Figure 12-16.

HIKVISION DS-7608NI-I2/8P Specifications

General

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Number of fans	1 fan(s)
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format system	NTSC, PAL
Resolution at capture speed	1920x1080@60fps
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
