Network Video Recorder User Manual
50

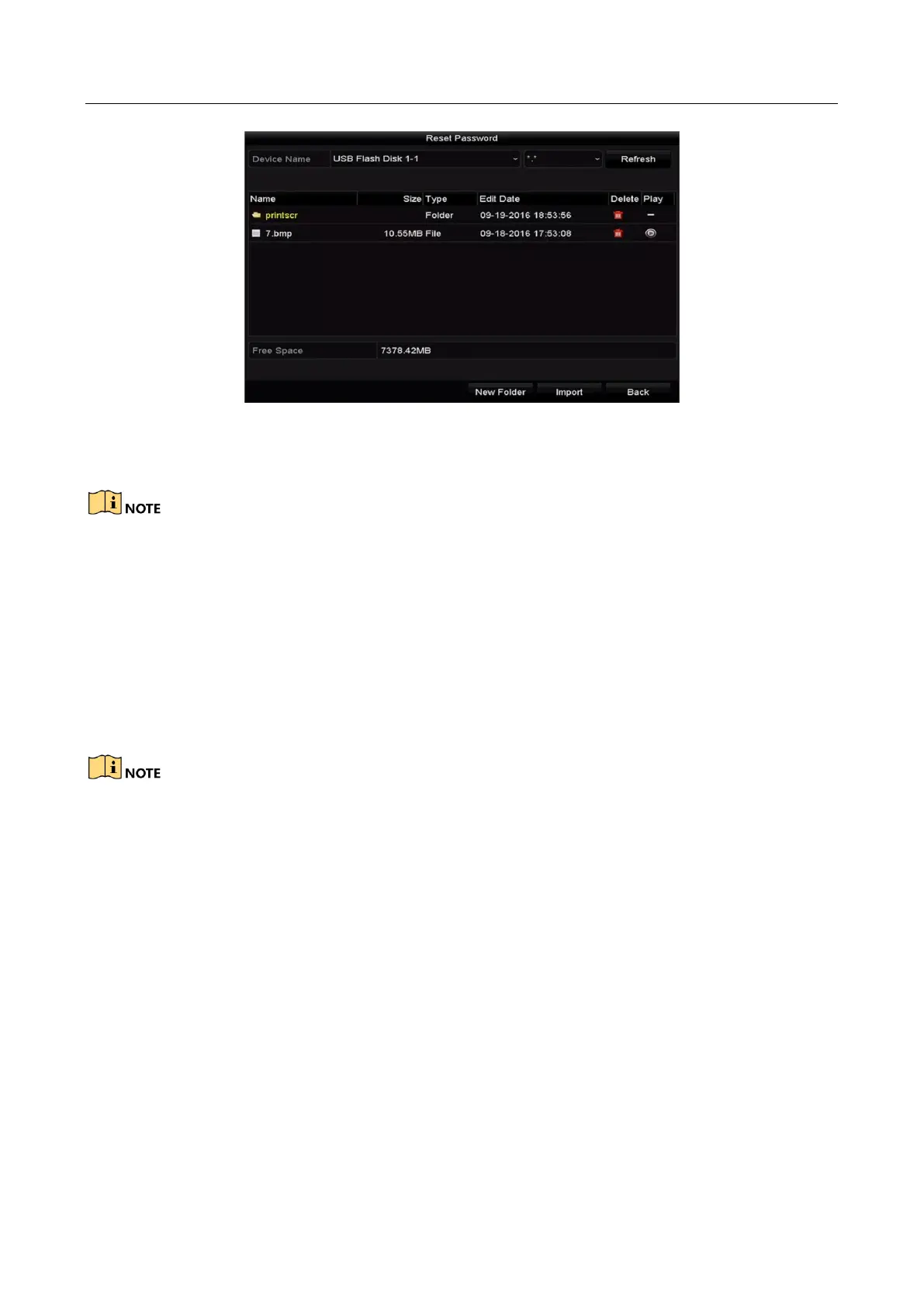

Figure 2-14 Reset Password
Step 2 Select the GUID file from the U flash disk and click Import to import the file to the device.
If you have imported the wrong GUIE file for 7 times, you will be not allowed to reset the password
for 30 minutes.
Step 3 After the GUID file is successfully imported, enter the reset password interface to set the
new admin password. Refer to Chapter 2.1.2 Activating Your Device for details.
Step 4 Click OK to set the new password. You can export the new GUID file to the U flash disk for
future password resetting.
When the new password is set, the original GUID file will be invalid. The new GUID file should be
exported for future password resetting. You can also enter the User>User Management interface to
edit the admin user and export the GUID file.
2.2 Using Wizard for Basic Configuration
By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure 2-15.

Table of Contents

Other manuals for HIKVISION DS-7608NI-I2/8P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7608NI-I2/8P and is the answer not in the manual?

HIKVISION DS-7608NI-I2/8P Specifications

General IconGeneral
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)15 W
Total Power over Ethernet (PoE) budget120 W
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity1
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports9
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity8
Number of fans1 fan(s)
Input bandwidth80 Mbit/s
Number of users64 user(s)
Output bandwidth256 Mbit/s
Maximum resolution3840 x 2160 pixels
Alarm input channels4
Video input channels8 channels
Video formats supportedH.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format systemNTSC, PAL
Resolution at capture speed1920x1080@60fps
HDD capacity0 GB
HDD interfaceSerial ATA
Maximum storage capacity12 TB
Number of HDDs installed0
Number of HDDs supported2
CertificationFCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product colorBlack, Silver
Rack capacity1U
Wi-FiNo
Weight and Dimensions IconWeight and Dimensions
Depth315 mm
Width385 mm
Height52 mm
Weight3000 g
