HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
146
With the configured VCA detection, the NVR supports the VCA search for the behavior analysis, face capture,
people counting and heat map results.
The DS-7600 series NVR supports the behavior search only.
10.1 Face Search
Purpose:
When there are detected face picture captured and saved in HDD, you can enter the Face Search interface to search
the picture and play the picture related video file according to the specified conditions.
Before you start:
Please refer to Section 9.1 Face Detection for configuring the face detection.
Steps:
1. Enter the Face Search interface.
Menu>VCA Search> Face Search
2. Select the camera (s) for the face search.

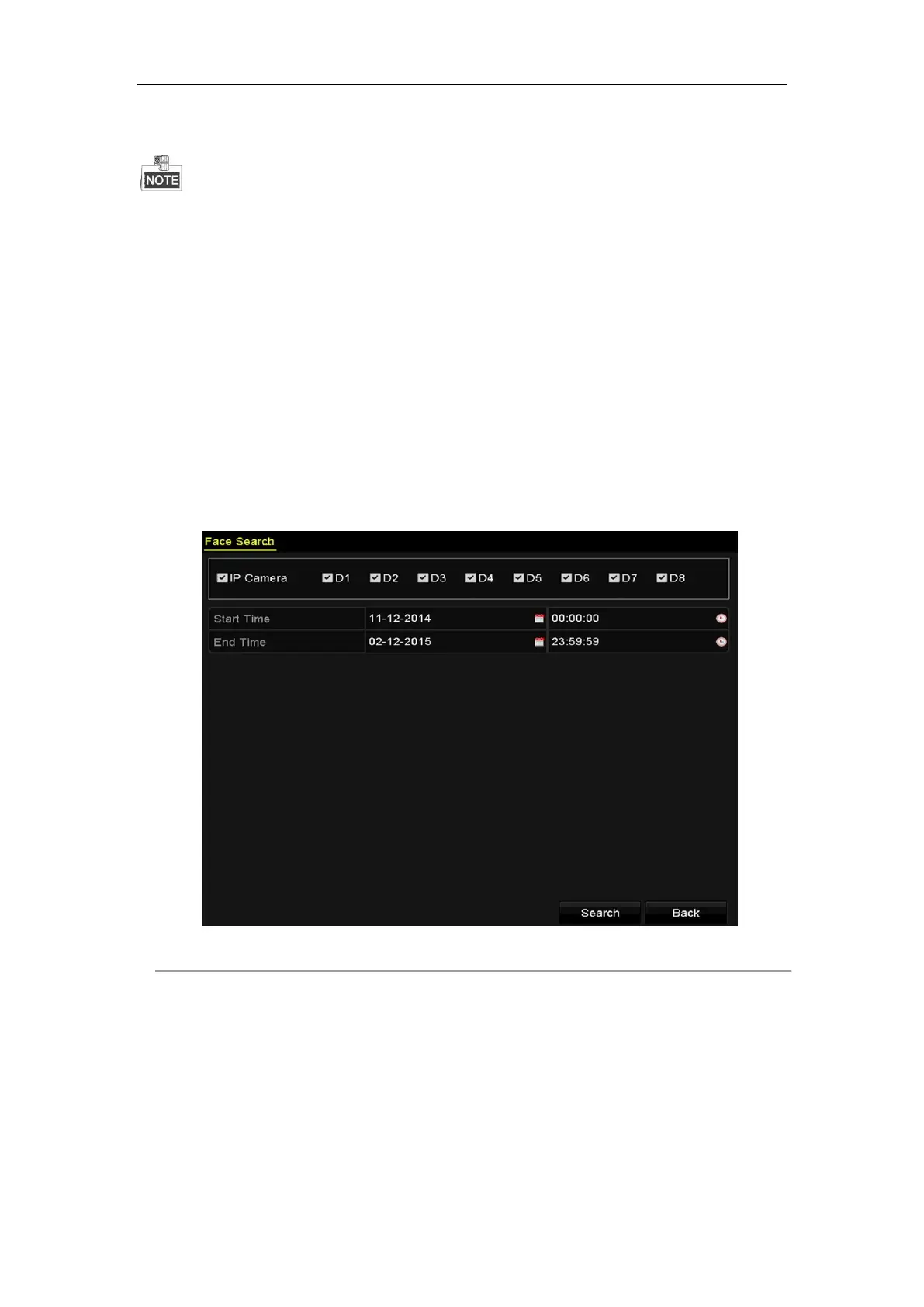

Figure 10. 1 Face Search
3. Specify the start time and end time for search the captured face pictures or video files.
4. Click Search to start searching. The search results of face detection pictures are displayed in list or in chart.

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
