HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
214

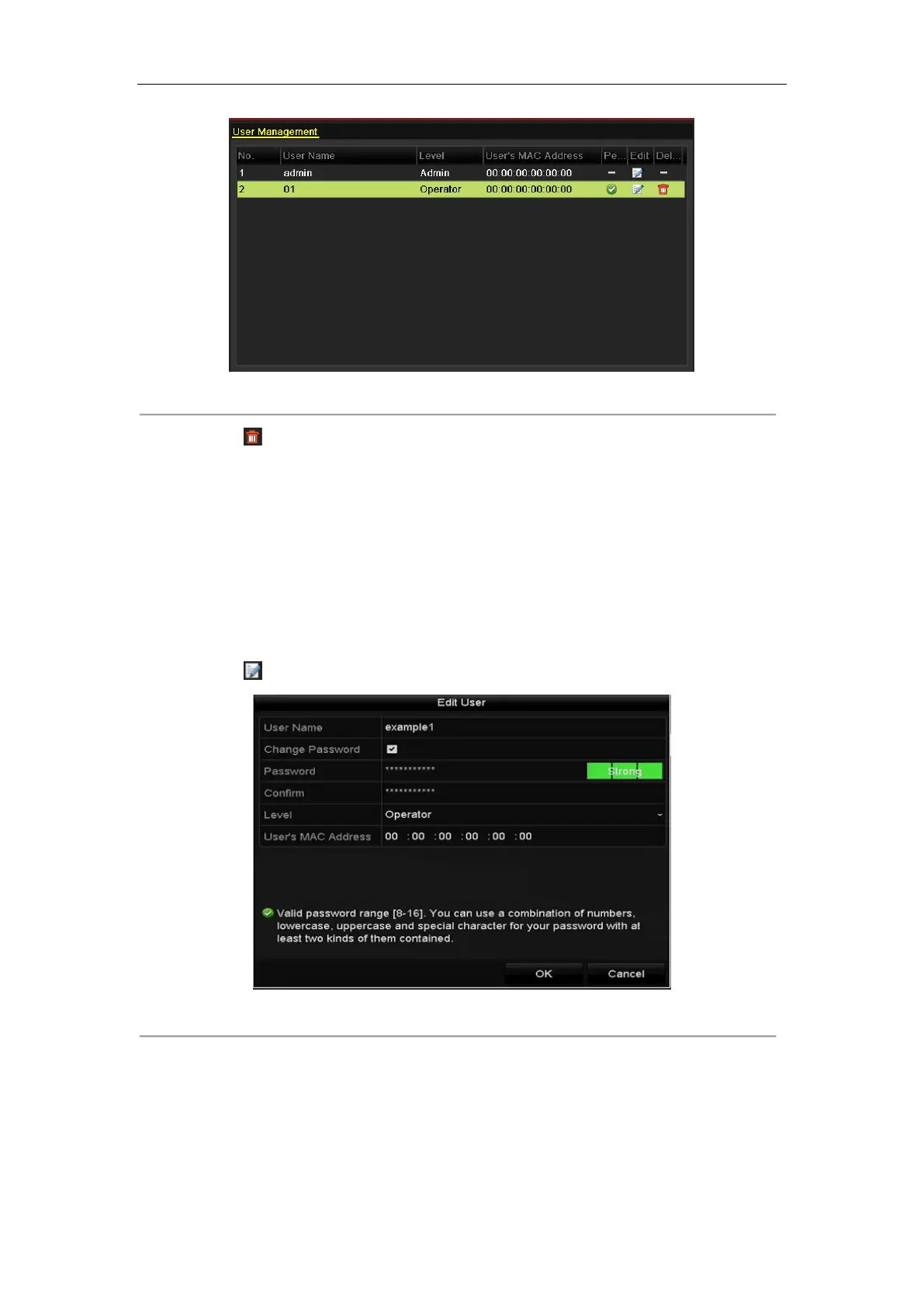

Figure 15. 10 User List
3. Click the icon to delete the selected user account.
15.5.3 Editing a User
For the added user accounts, you can edit the parameters.
Steps:
1. Enter the User Management interface.
Menu >Configuration>User
2. Select the user to be edited from the list, as shown in Figure 15. 10.
3. Click the icon to enter the Edit User interface, as shown in Figure 15.11.
Figure 15. 11 Edit User (Operator/Guest)

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
