HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
33

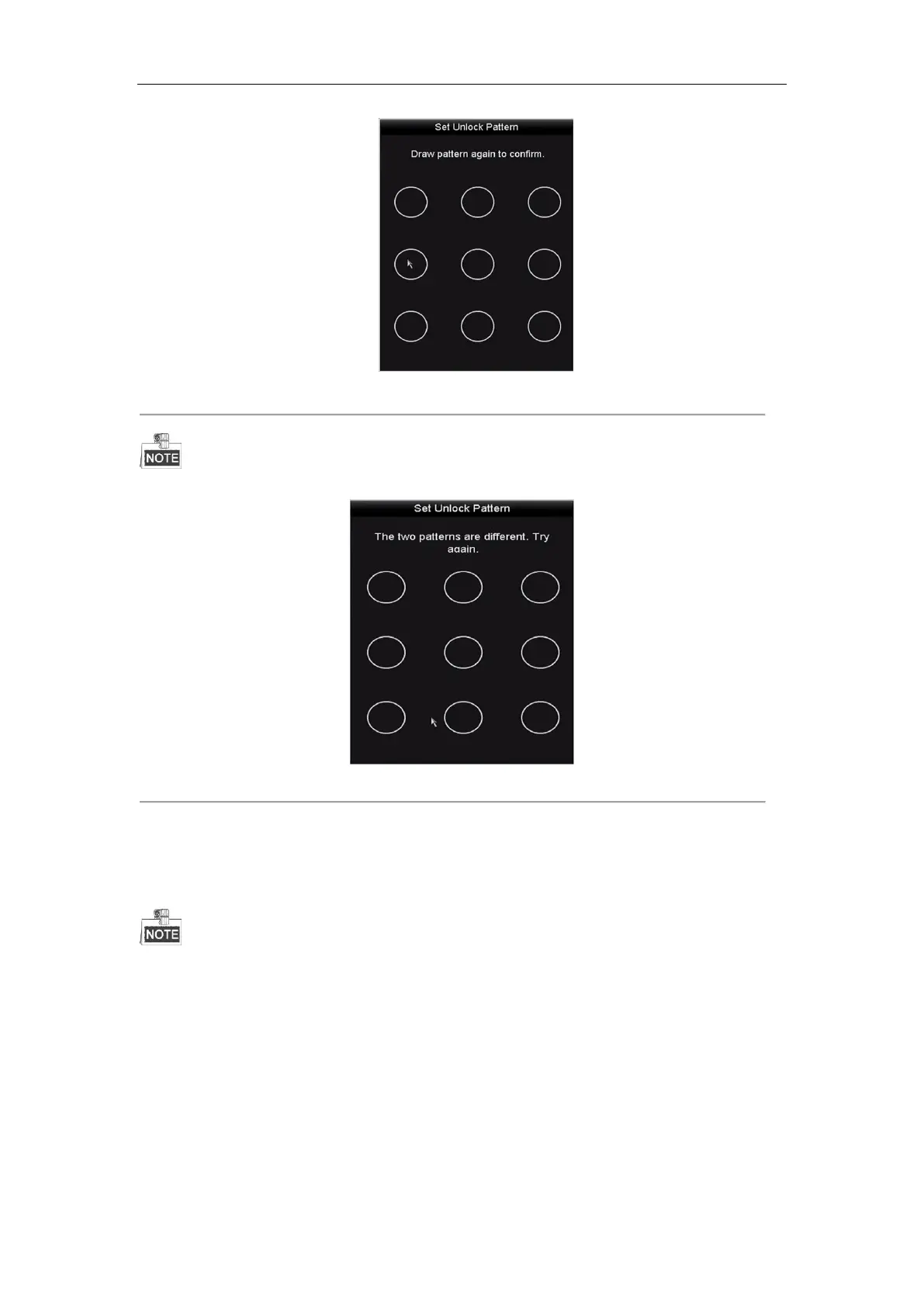

Figure 2. 7 Confirm the Pattern
If the two patterns are different, you must set the pattern again.
Figure 2. 8 Re-set the Pattern
2.3.2 Logging in via Unlock Pattern
 Only the admin user has the permission to unlock the device.
 Please configure the pattern first before unlocking. Please refer to Configuring the Unlock Pattern
Steps:
1. Right click the mouse on the screen and select the menu to enter the interface as shown in Figure 2.8.

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
