HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
211
15.5 Managing User Accounts
Purpose:
There is a default account in the NVR: Administrator. The Administrator user name is admin and the password is
set when you start the device for the first time. The Administrator has the permission to add and delete user and
configure user parameters.
15.5.1 Adding a User
Steps:
1. Enter the User Management interface.
Menu >Configuration>User

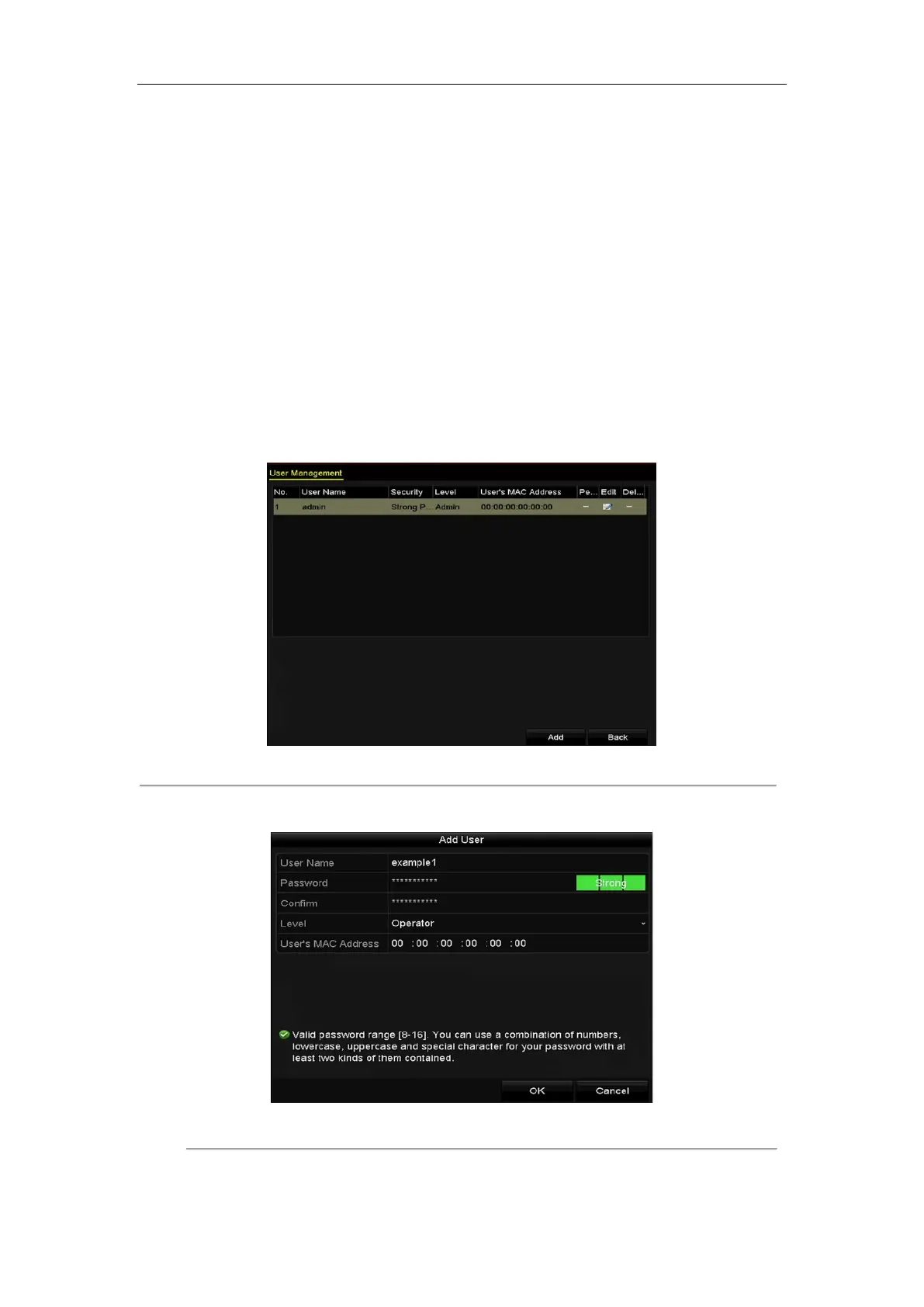

Figure 15. 6 User Management Interface
2. Click the Add button to enter the Add User interface.
Figure 15. 7 Add User Menu
3. Enter the information for new user, including User Name, Password, Confirm, Level and User’s MAC

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
