HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
34

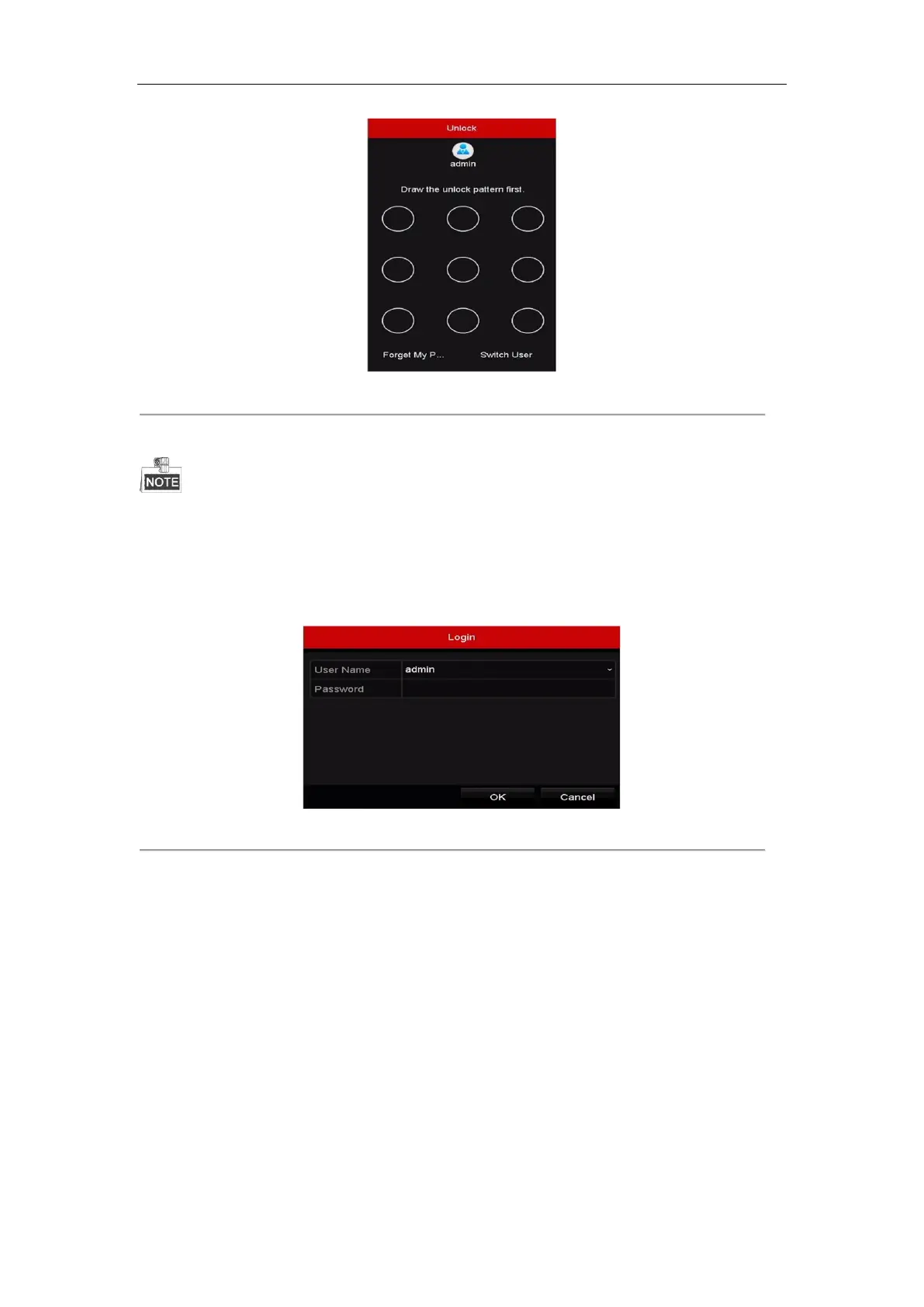

Figure 2. 9 Draw the Unlock Pattern
2. Draw the pre-defined pattern to unlock to enter the menu operation.
 If you have forgotten your pattern, you can select the Forget My Pattern or Switch User option to enter the
normal login dialog box.
 When the pattern you draw is different from the pattern you have configured, you should try again.
 If you have drawn the wrong pattern for more than 5 times, the system will switch to the normal login mode
automatically.
Figure 2. 10 Normal Login Dialog Box
2.4 Using the Wizard for Basic Configuration
Purpose:
After admin password is set, the setup wizard pops up automatically. It can walk you through some basic settings
of the NVR.

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
