HIKVISION DS-7732NI-E4 User Manual

Network Video Recorder User Manual
197
14.2 Searching & Export Log Files
Purpose:
The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and
exported at any time.
Steps:
1. Enter the Log Search interface.
Menu > Maintenance > Log Information

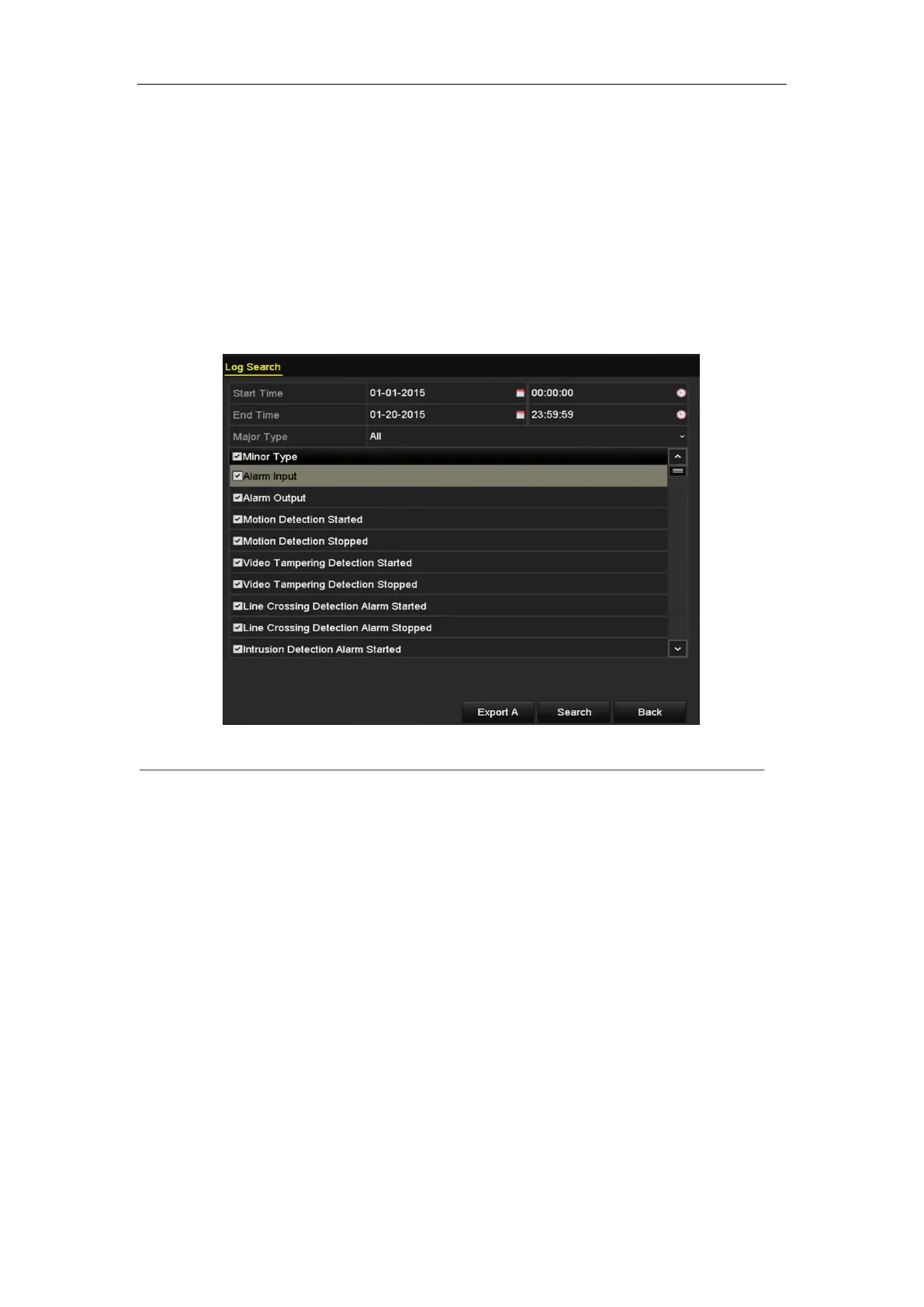

Figure 14. 2 Log Search Interface
2. Set the log search conditions to refine your search, including the Start Time, End Time, Major Type and
Minor Type.
3. Click the Search button to start search log files.
4. The matched log files will be displayed on the list shown below.

HIKVISION DS-7732NI-E4 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
HDMI output	Yes
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
HDD interface	Serial ATA
Maximum storage capacity	24 TB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
