HIKVISION DS-96128NI-I24 User Manual

Network Video Recorder User Manual
15
1.1 Front Panel
1.1.1 DS-96000NI-I16 Series

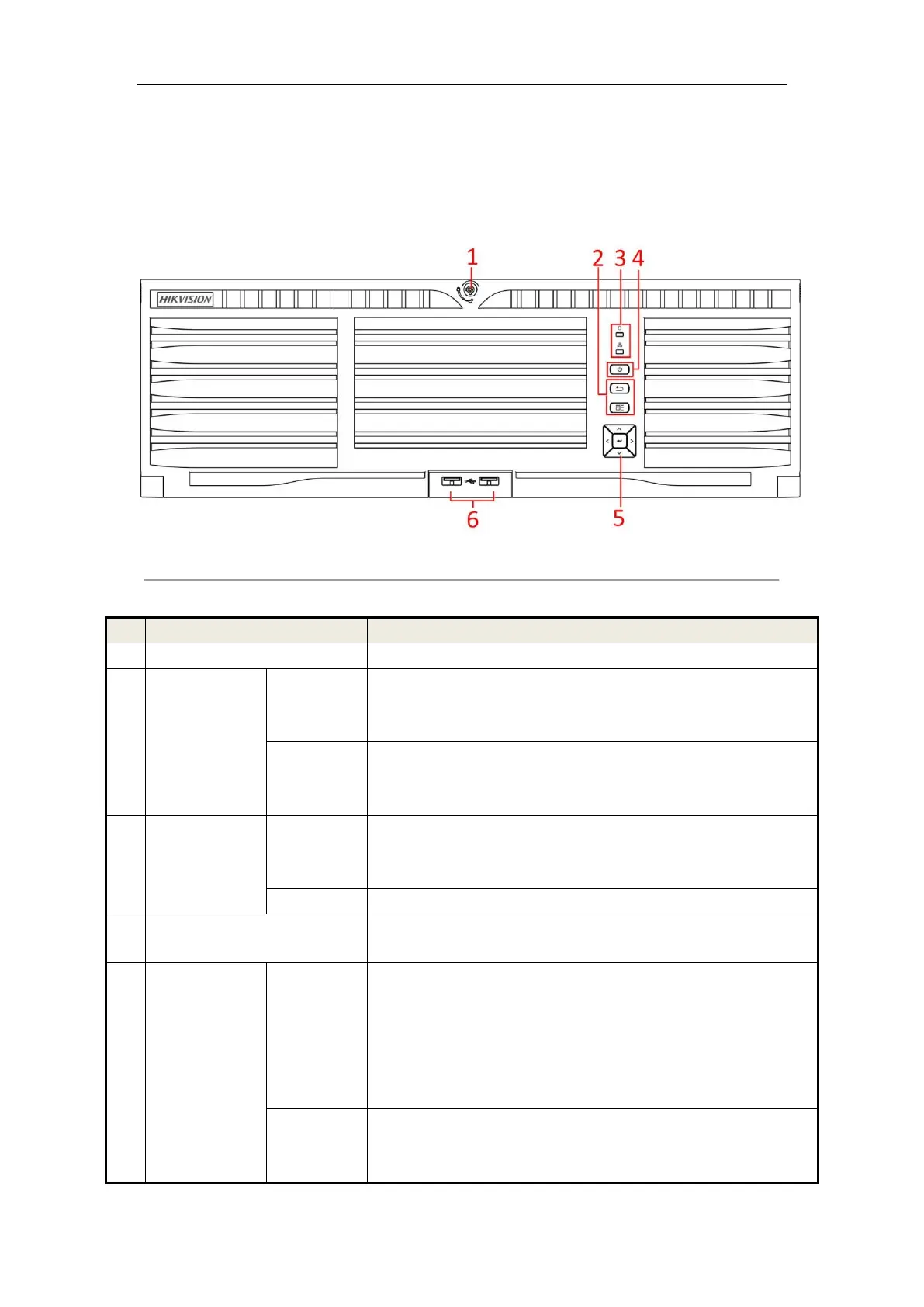

Figure 1. 1 DS-96000NI-I16 Series
Table 1. 1 Description
No.
Name
Description
1
Panel lock
Locks or unlocks the panel by the key.
2
Shortcut buttons
Exit
● Returns to the previous menu.
● Press it twice quickly to switch the main and auxiliary port.
● In live view mode, press it to enter PTZ control interface.
Menu
● Press it to pop up main menu.
● Hold it for 5 seconds to turn on/off button sound.
● During playback, press it to show/hide control panel.
3
Status indicator
HDD
● Solid red: at least one HDD is installed
● No lit: No HDD is detected.
● Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is normal.
4
Power switch
Powers on/off device. Solid blue indicates device is powered on. Solid red
indicates device is shut down.
5
Control buttons
ENTER
● Confirms selection in any of the menu modes.
● Checks the checkbox fields.
● Switches on/off status.
● Plays or pauses the video playing in playback mode.
● Advances the video by a single frame in single-frame playback mode.
● Stops/starts auto switch in auto-switch mode.
DIRECTION
● Navigates between different fields and items in menus.
● In the playback mode, use the Up and Down buttons to speed up and
slow down recorded video. Use the Left and Right buttons to select the

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
