HIKVISION DS-96128NI-I24 User Manual

Network Video Recorder User Manual
16
No.
Name
Description
next and previous video files.
● Cycles through channels in live view mode.
● Controls the movement of the PTZ camera in PTZ control mode.
6
USB interfaces
Universal Serial Bus (USB) ports for additional devices such as USB mouse
and USB Hard Disk Drive (HDD).
1.1.2 DS-96000NI-I24 Series

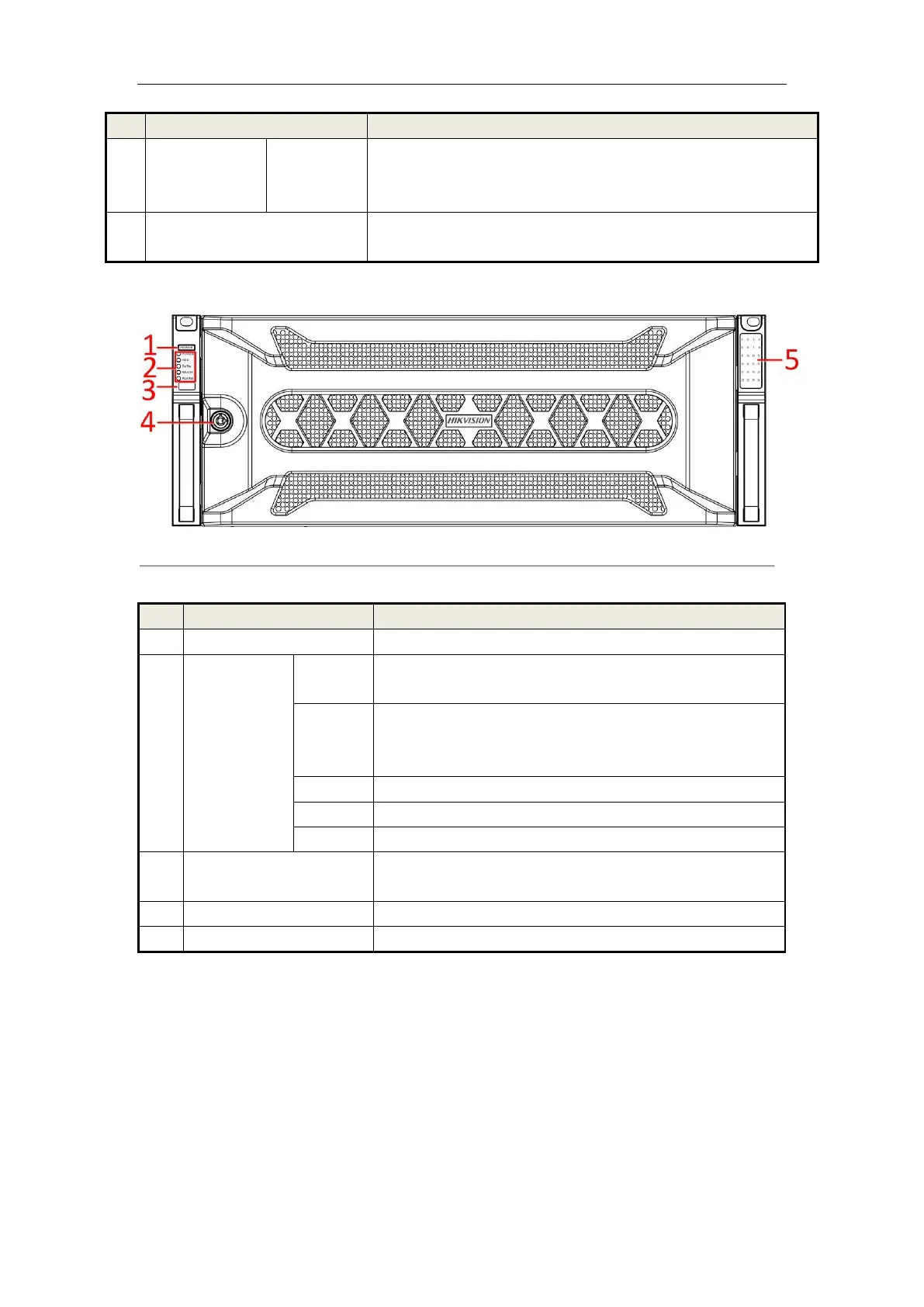

Figure 1. 2 DS-96000NI-I24 Series
Table 1. 2 Panel Description
No.
Name
Description
1
Power switch
Powers on/off device.
2
Status indicator
Power
Solid blue indicates device is powered on. Solid red indicates device
is shut down.
HDD
● Solid red: at least one HDD is installed
● No lit: No HDD is detected.
● Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is normal.
Ready
Solid blue indicates device runs properly.
Alarm
Solid red indicates alarm occurs.
3
USB interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
4
Panel lock
Locks or unlocks the panel by the key.
5
HDD sequence indicator
Shows the HDD installation slot.

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
