Face Recognition Terminal User Manual
12

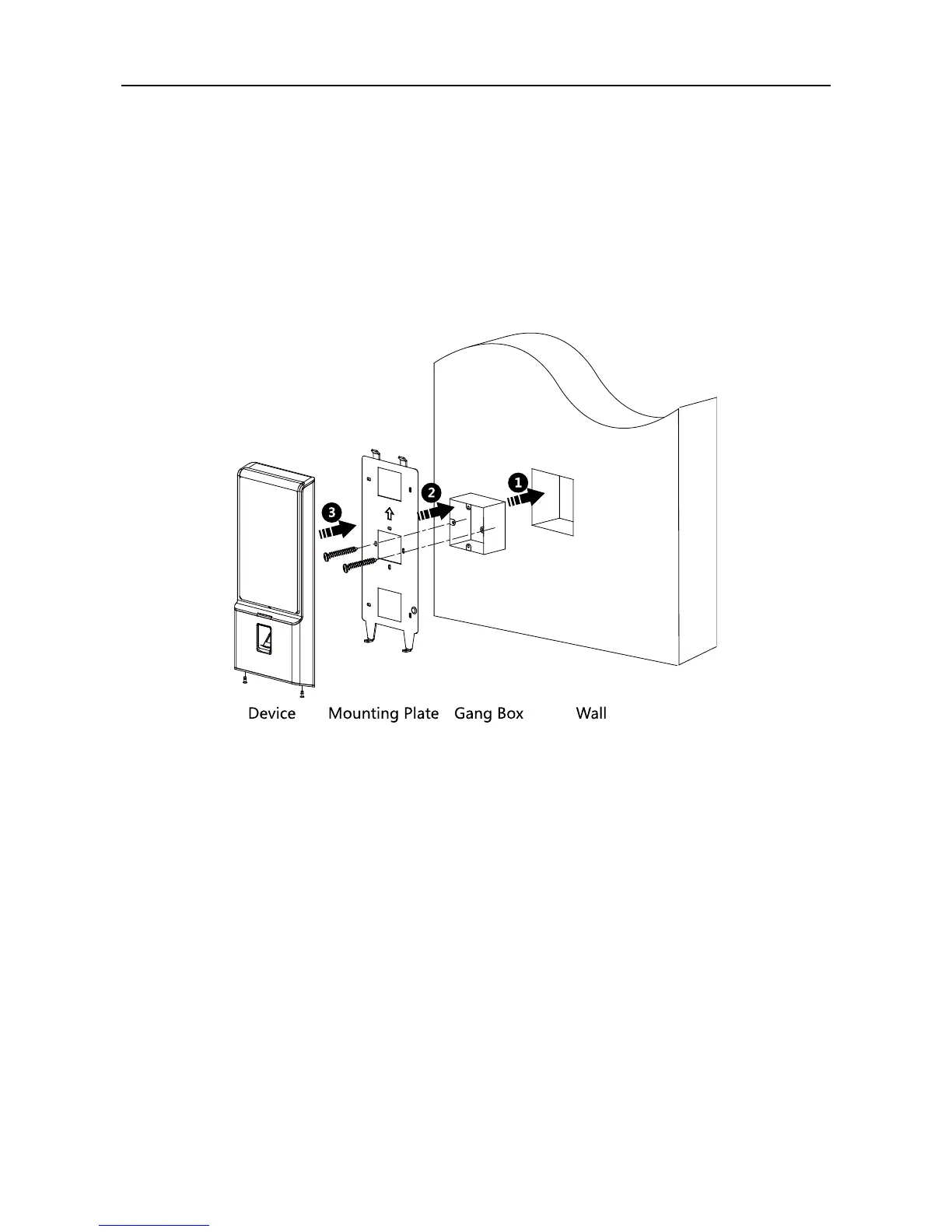

5. Remove the screw at the bottom of the device.
6. Align the terminal with the mounting plate and buckle them together.
7. Use a hex wrench to fasten the screw at the bottom.
Notes:
The installation height here is the recommended height. You can change it according to your
actual needs.
For easy installation, drill holes on mounting surface according to the supplied mounting
template.
3.2 Installing without Gang Box
Steps:
1. According to the basline on the mounting template, stick the mounting template on the wall or
other surface, 1.4 meters higher than the ground.
