Access Control Terminal·User Manual
10
Chapter 4 External Device Wiring

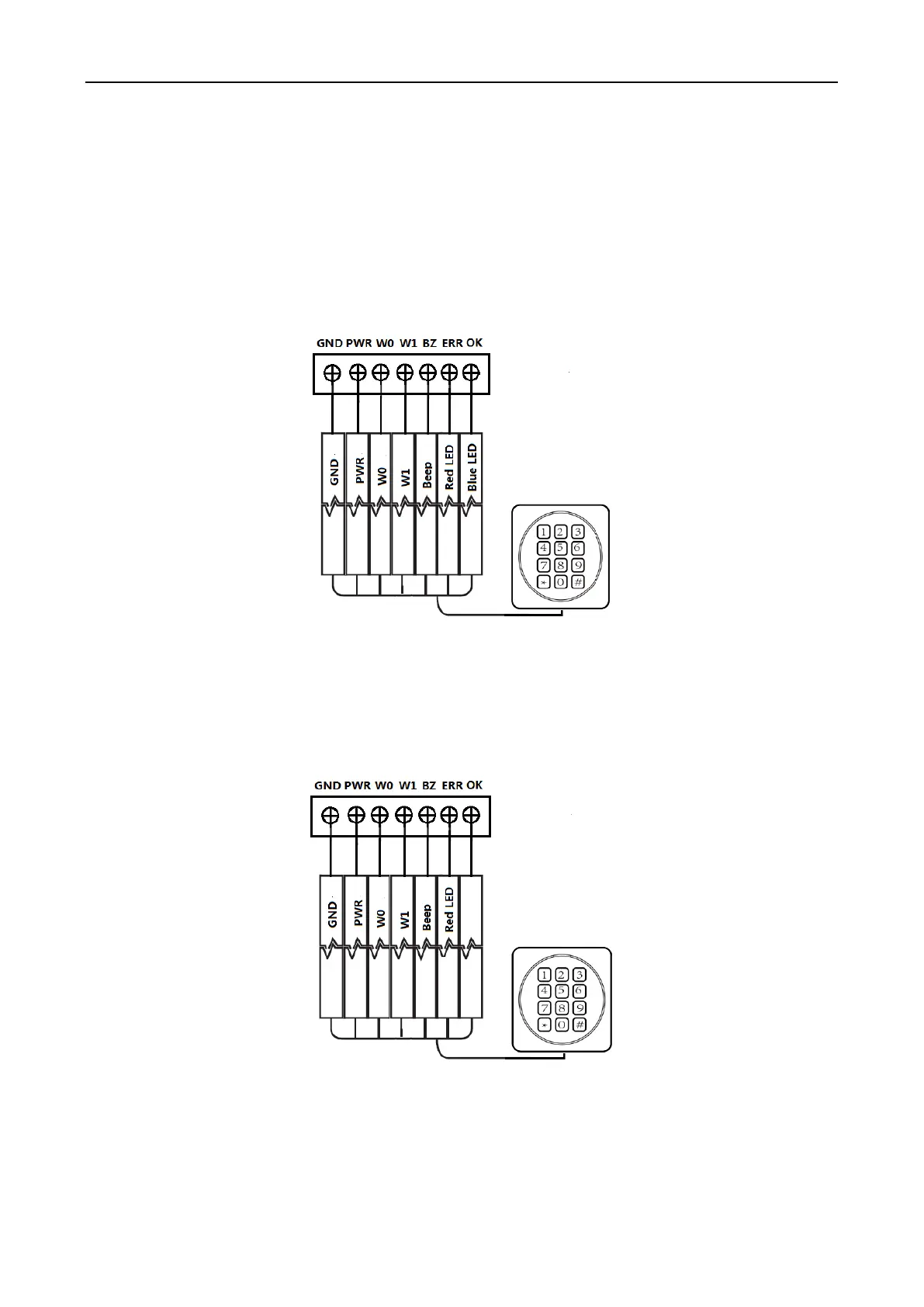

4.1 Card Reader Wiring
4.1.1 Wiegand Card Reader Wiring
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader
Note: You must connect the OK/ERR/BZ, if using access controller to control the LED and buzzer of
the Wiegand card reader.
4.1.2 DS-K1800 Series Card Reader Wiring
Yellow
Blue
Black
Red
GND
VCC
WG-D0
WG-D1
WG_BEEP
WG_ERR
WG_OK
Controller
Card Reader
LED
4.2 DS-K2801 External Terminals
