Access Control Terminal·User Manual
47
7.4.7 Wiegand Settings
Purpose:
You can set the Wiegand channel and the communication mode.
Select the device in the device list, and click Modify to pop up the modifying device information
window.
Click Wiegand-485 Settings tab to enter the Wiegand settings interface.
Note: The Wiegand Settings should be supported by the device.
Steps:

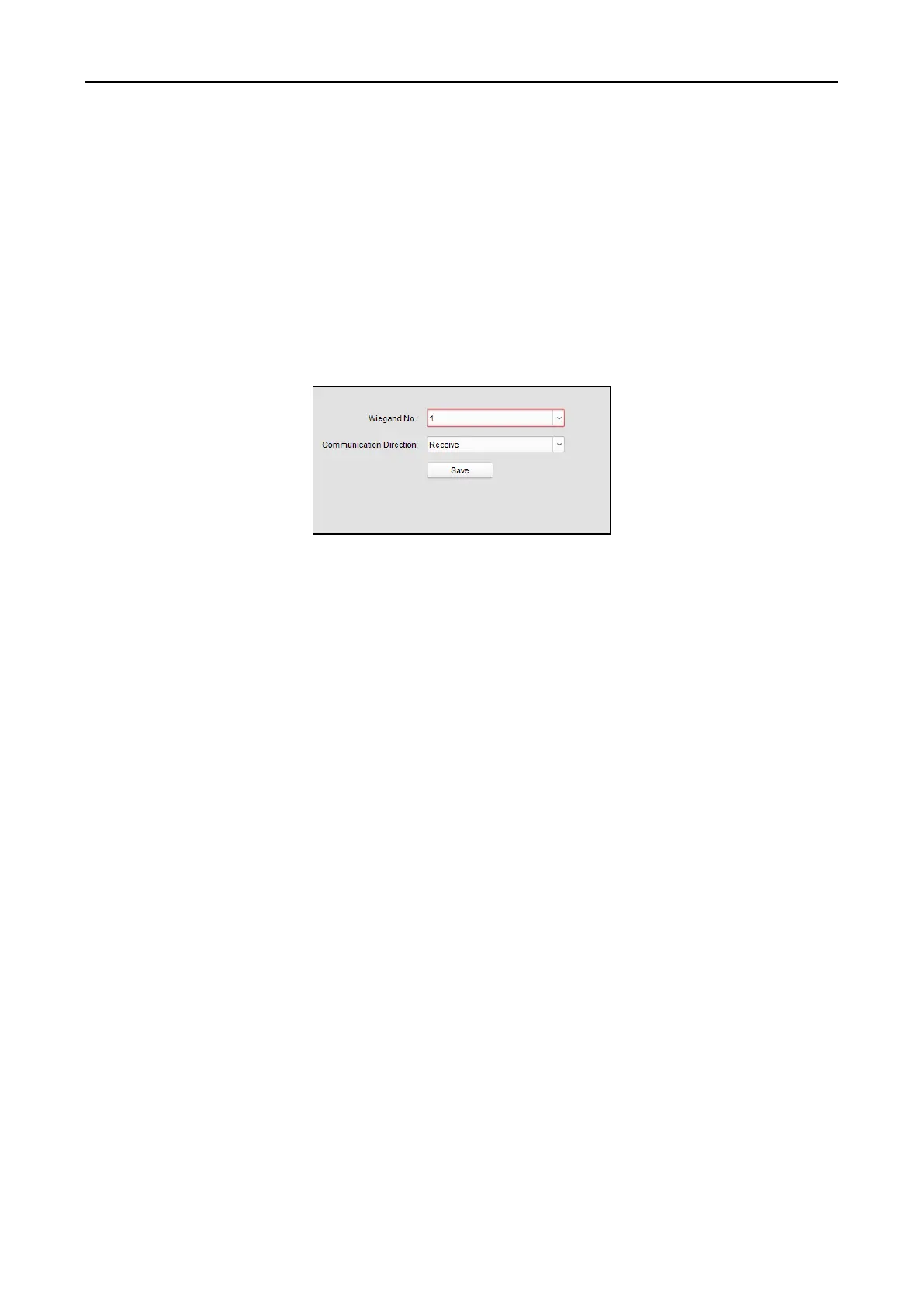

1. Click the Wiegand Settings tab to enter the Wiegand Settings interface.
2. Select the Wiegand channel No. and the communication mode in the dropdown list.
If you set the Communication Direction as Send, you are required to set the Wiegand Mode as
Wiegand 26 or Wiegand 34.
3. Click Save to save the settings and the configured parameters will be applied to the device
automatically.
Note: After changing the communication direction, the device will be rebooted. A prompt will be
popped up after changing the communication direction.
7.4.8 M1 Card Encryption
The M1 Card Encryption function increases the authentication security level, which should be
applied together with the card enrollment station of our company via the client software or the
web client. After issuing the card, you can set the M1 card encryption function on the controller.
Notes:
 The function should be supported by the device.
 For details about issuing card, refer to Adding Person (Card) in 7.5.2 Person Management.
Select the device in the device list, and click Modify to pop up the modifying device information
window.
Click M1 Card Encryption tab to enter the M1 Card Encryption interface.
Steps:
1. In the M1 Card Encryption interface, check Enable checkbox to enable the M1 card encryption
function.

HIKVISION DS-K2802 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
