HIKVISION DS-K2802 User Manual

Access Control Terminal·User Manual
43

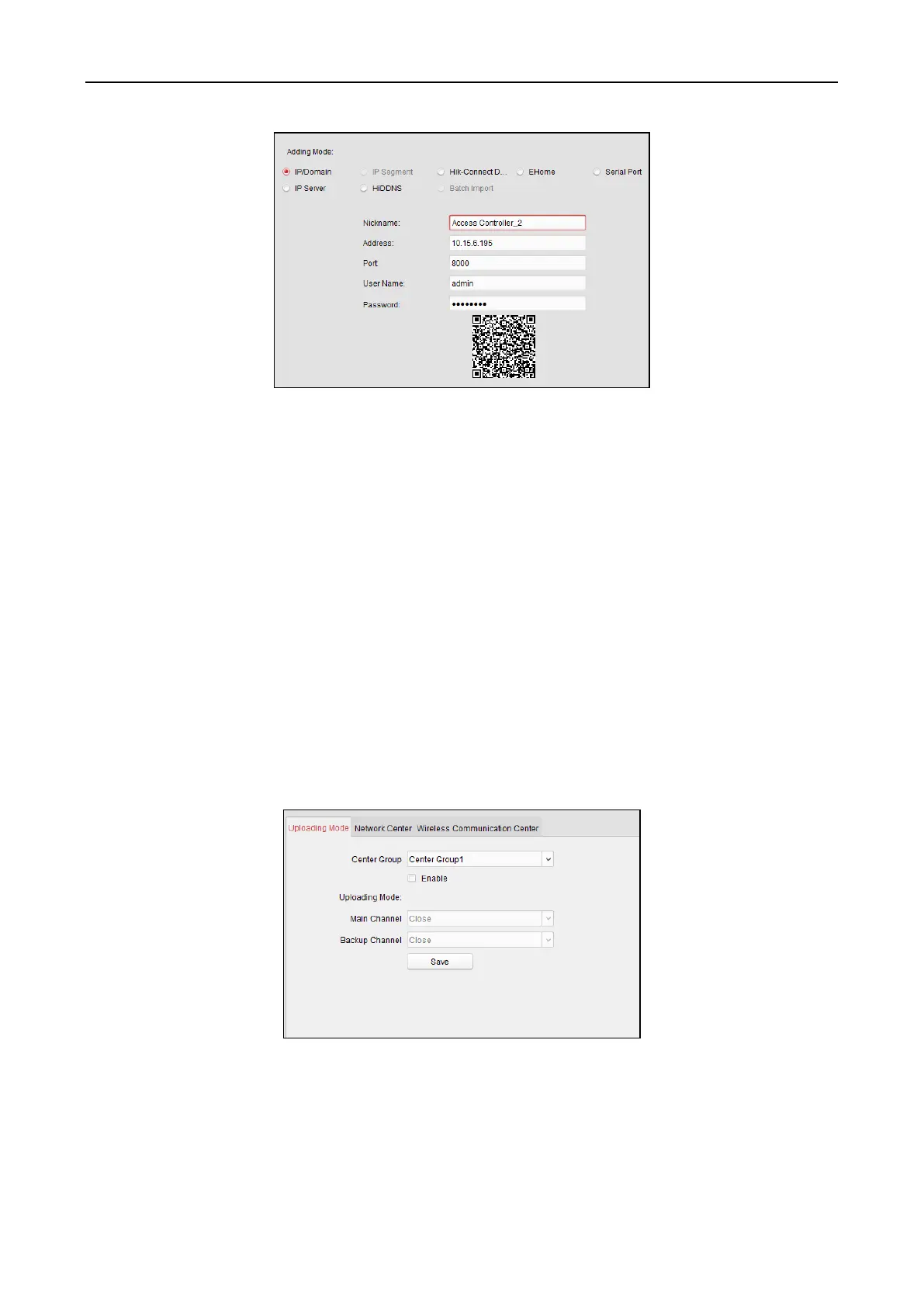

4. Edit the device information, including the adding mode, the device name, the device IP address,
port No., user name, and the password.
7.4.4 Network Settings
Purpose:
After adding the access control device, you can set the uploading mode, and set the network
center and wireless communication center.
Select the device in the device list, and click Modify to pop up the modifying device information
window.
Click Network Settings tab to enter the network settings interface.
Uploading Mode Settings
Purpose ：
You can set the center group for uploading the log via the EHome protocol.
Steps:
1. Click the Uploading Mode tab.
2. Select the center group in the dropdown list.
3. Check the Enable checkbox to enable the selected center group.
4. Select the uploading mode in the dropdown list. You can enable N1/G1 for the main channel
and the backup channel, or select Close to disable the main channel or the backup channel.
Note: The main channel and the backup channel cannot enable N1 or G1 at the same time.

HIKVISION DS-K2802 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
