HIKVISION DS-KD8003-IME2 User Manual

1) Connect Cable 1 and one end of Cable 2 to the
corresponding interfaces of the Main Unit, then place the
Main Unit into the upper grid of the le gang box.
2) Connect the other end of Cable 2 to the input interface of
Sub Module 1. Connect one end of Cable 3 to the output
interface of Sub Module 1 and insert it into the middle grid
of the
le gang box.
3) Finish the wiring and
inserng according to the cable
number and the
posion shown as below.

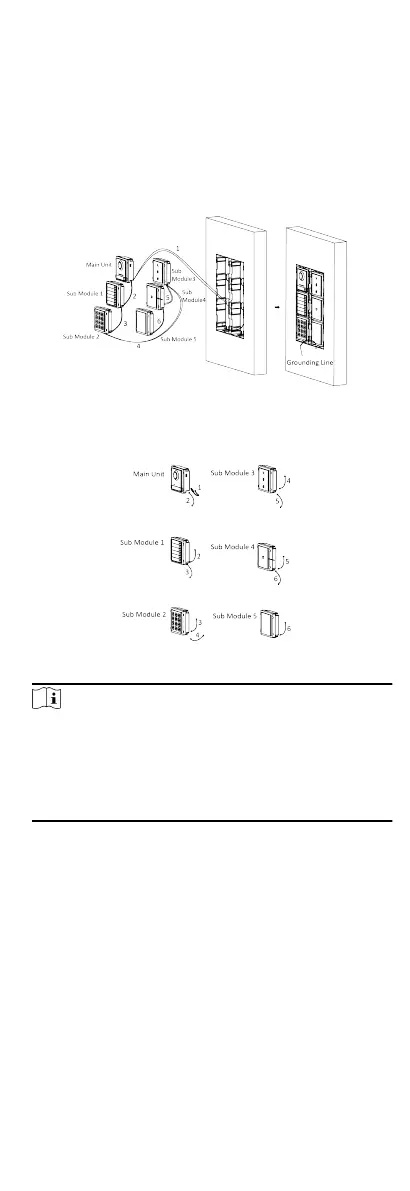

Figure 4-47 Install Mounng Frame
The cables connect to each module shown as below.
Figure 4-48 Cables Connecon
Note
●
Cable 2,3,5 and 6 are the module-connecng lines (190 mm)
in the package.
●
Cable 4 is the module-connecng line (400 mm) in the
package.
●
Main unit must be put in the top grid.
10. Pull the grounding line out and xed its two end to the screw
on the cover.
33

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
