3. Congure the video parameters.
Stream Type
Select the stream type to main stream or sub stream.
Video Type
Select the stream type to video stream, or video & audio
composite stream. The audio signal will be recorded only
when the Video Type is Video & Audio.
The video type is video & audio read only by default.
Resoluon
Select the resoluon of the video output.
Bitrate Type
Select the bitrate type as constant or variable.
Video Quality
When bitrate type is selected as Variable, 6 levels of video
quality are selectable.
Frame Rate
Set the frame rate. The frame rate is to describe the
frequency at which the video stream is updated and it is
measured by frames per second (fps). A higher frame rate is
advantageous when there is movement in the video stream,
as it maintains image quality throughout.
Max. Bitrate
Set the max. bitrate from 32 to 16384 Kbps. The higher value
corresponds to the higher video quality, but the
beer
bandwidth is required.
Video Encoding
The device supports H.264.
I Frame Interval
Set I Frame Interval from 1 to 400.
4. Click Save to save the sengs.
Audio Parameters
Steps
1. Click Video/Audio → Audio to enter the sengs page.

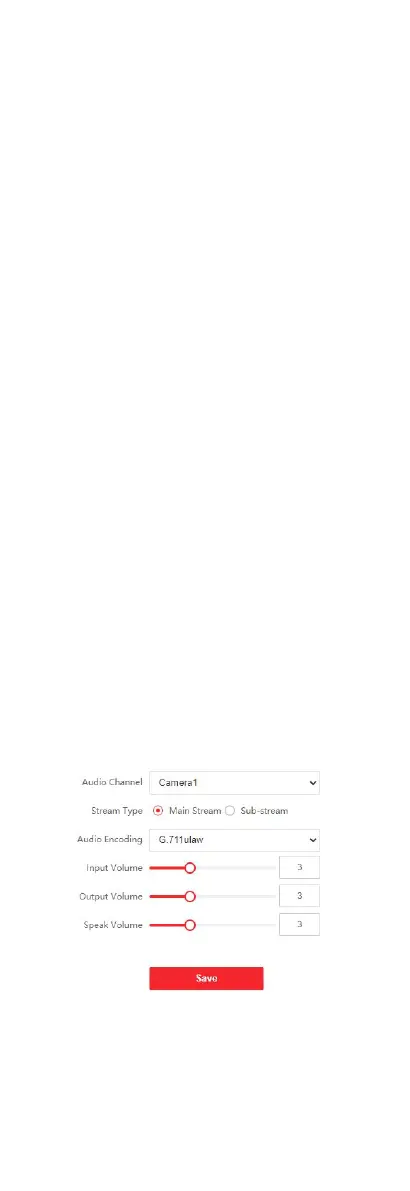

Figure 7-11 Audio Sengs
2. Congure the stream type and the audio encoding type.
64

HIKVISION DS-KD8003-IME2 Specifications

General

Megapixel	2 MP
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Viewing angle, vertical	96 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	180 °
Video codecs	H.264
Number of buttons	1 buttons
Streaming capability	Yes
Connectivity technology	Wired
Maximum number of cameras supported	-
Voice codecs	G.711u
Product color	Black, Grey
International Protection (IP) code	IP65
Operating relative humidity (H-H)	10 - 95 %
Door station operating temperature (T-T)	-40 - 60 °C
Indoor unit included	No
Outdoor unit power type	DC
Display diagonal	- \
Harmonized System (HS) code	85176920
