To connect the exit button, it is required to set the output of terminal AI1 to be exit
button with Batch Configuration Tool or iVMS-4200.

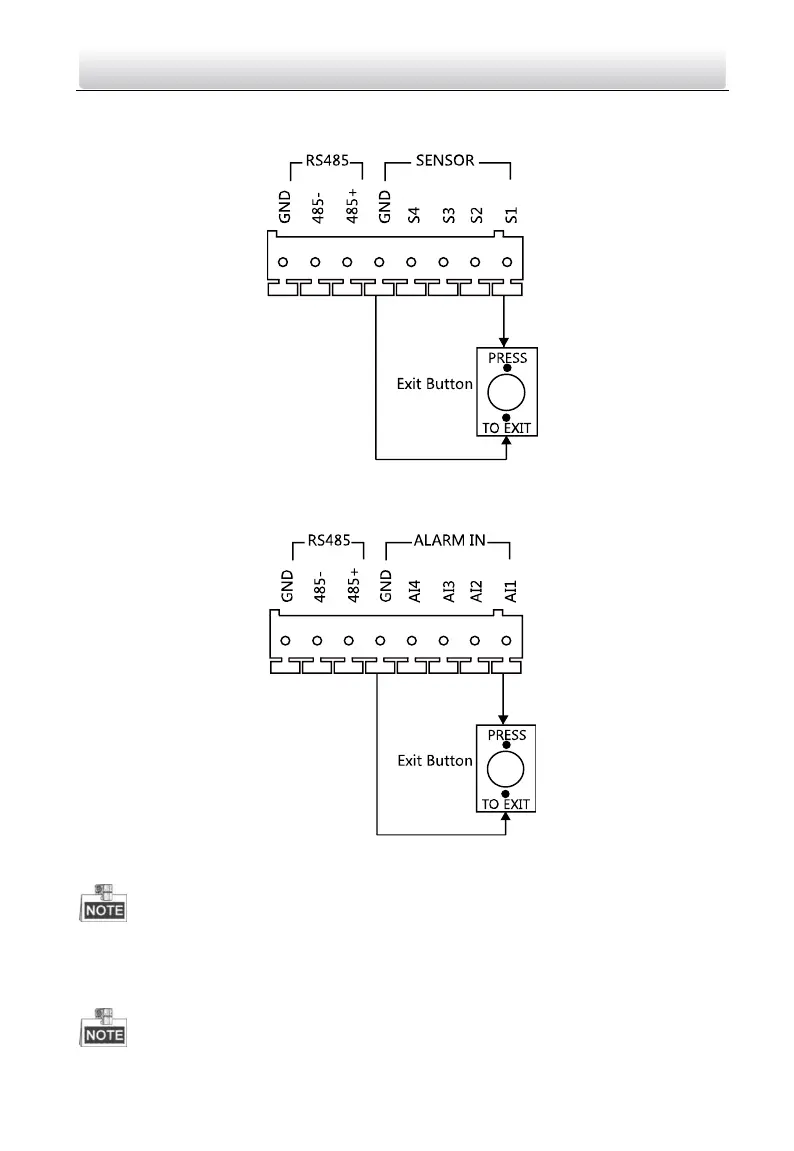

Figure 4-8 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (2)
Exit Button Wiring for DS-KD3002-VM
Figure 4-9 Exit Button Wiring for DS-KD3002-VM
Terminal S1 is set as default for connecting exit button.
