HIKVISION DS-KD8102 User Manual

Video Intercom Door Station·User Manual
47

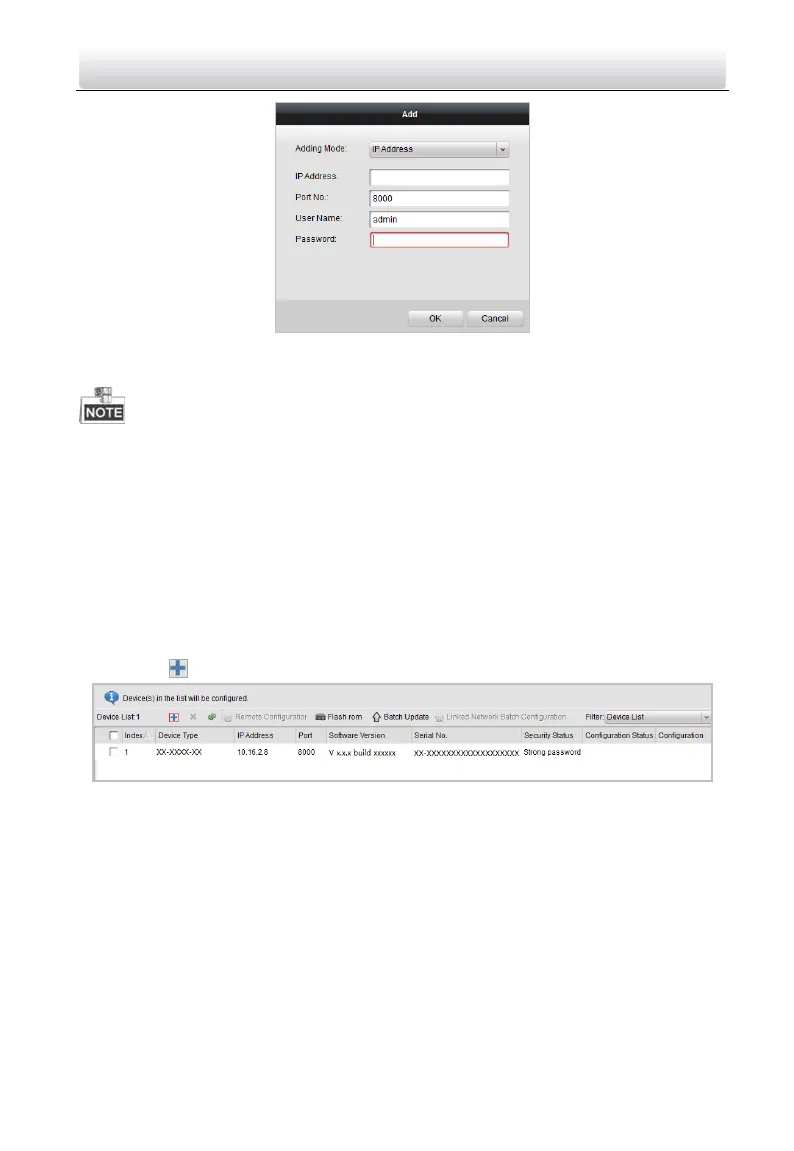

Figure 8-8 Adding by IP Address
4. Click the OK button to add the device to the device list.
 You cannot add the device(s) to the device list if the user name and password are not
identical.
 When you add devices by IP Address, IP Segment or Port No., the devices should be
online devices.
8.3.3 Adding by IP Segment
Purpose:
You can add many devices at once whose IP addresses are among the IP segment.
Steps:
1. Click the button to pop up the adding devices dialog box.
Figure 8-9 Adding Button
2. Select IP Segment in the adding mode drop-down list.
3. Set the Start IP Address and End IP Address.
4. Enter port No., user name, and password.

HIKVISION DS-KD8102 Specifications

General

Brand	HIKVISION
Model	DS-KD8102
Category	Intercom System
Language	English
