Video Intercom Door Station·User Manual
53
 After editing the password of device, click button from the device list, the added
device will not be there. You should add the device again with new password to
operate the remote configuration.
RS485
Click the RS485 button to enter the RS485 setting interface. You can view and edit the
RS485 parameters of the device.
When use RS-485 interface to connect the door station and the card reader, you should
set the bitrate as 19200, and set the working mode as Card Reader.
When use RS-485 interface to connect the door station and the elevator controller, you
should set the bitrate as 19200, and set the working mode as Elevator Control.

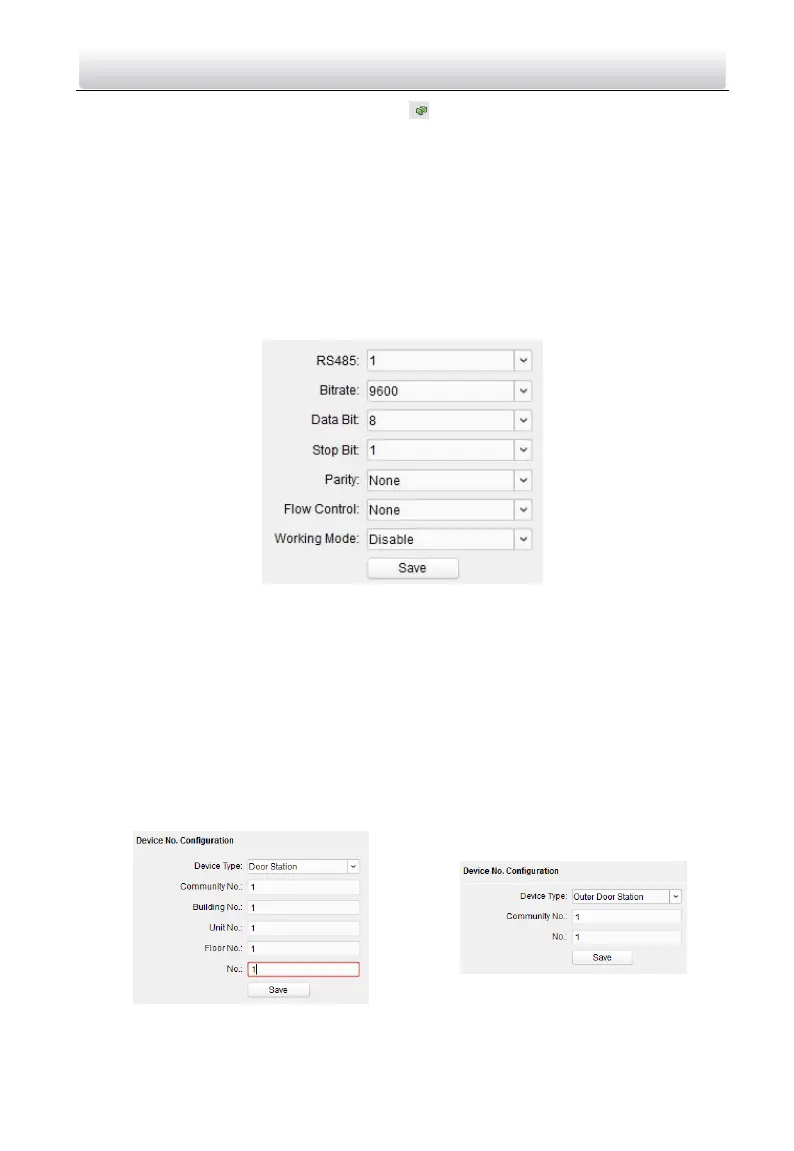

Figure 8-21 RS-485
8.4.2 Video Intercom
Click the Video Intercom button on the remote configuration interface to enter the
video intercom parameters settings: Device Number Configuration, Time Parameters,
Password, Zone Configuration, IP Camera Information, and Volume Input and Output
Configuration, and so on.
Device ID Configuration
Steps:
1. Click the ID Configuration button to enter device ID configuration interface.
Figure 8-22 Door Station
Figure 8-23 Outer Door Station
