3.2 Surface Mounting without Protective Shield
Before You Start
● Tools that you need to prepare for installation: Drill (ø2.846) and gradienter.
● Purchase the protective shield before installation.
Steps
1. Stick the mounting template on the wall. Drill screw holes according to the mounting template.
Remove the template from the wall.

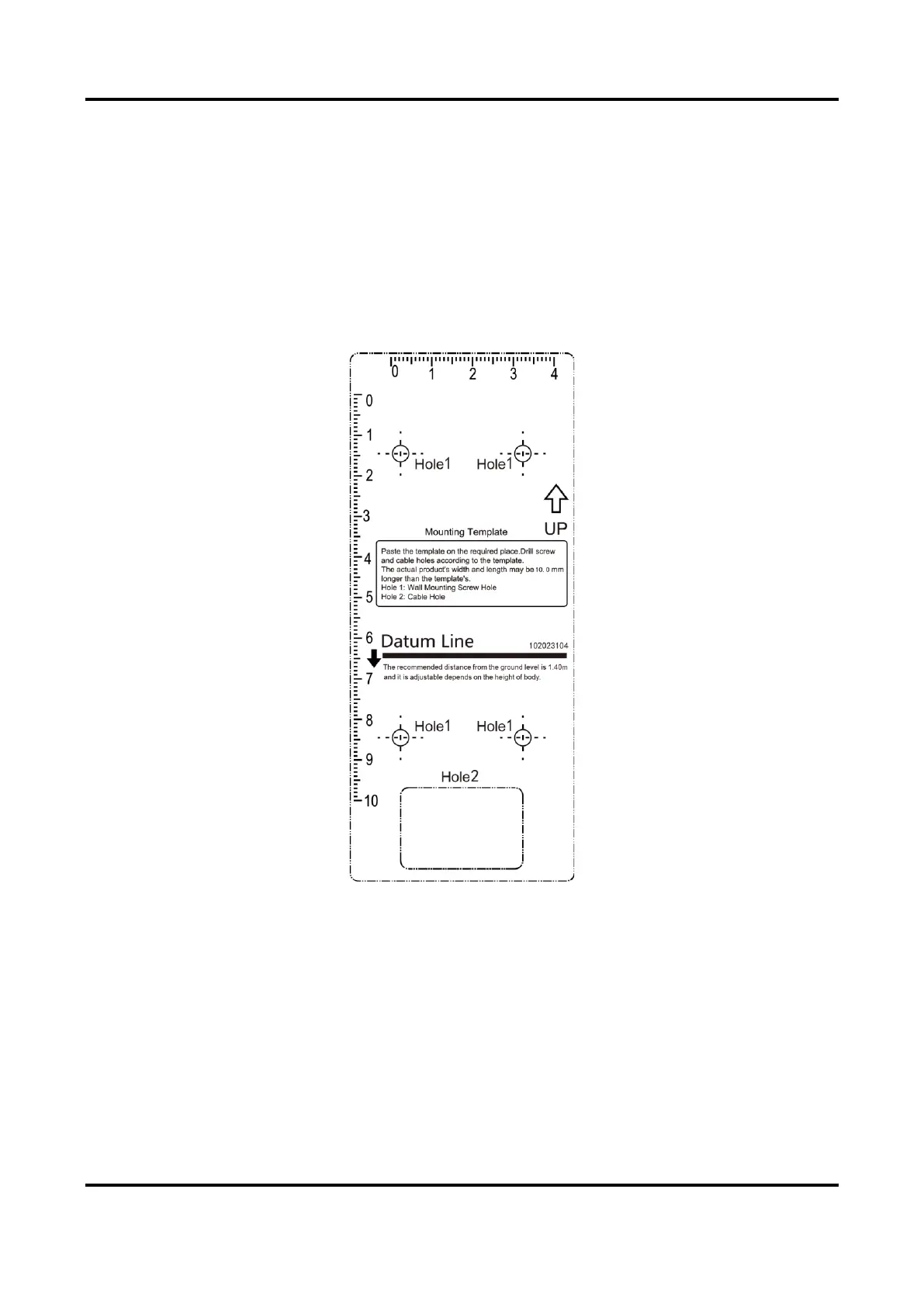

Figure 3-2 Mounting Template
2. Secure the mounting plate on the wall with 4 supplied screws according to the screw holes.
3. Install the villa door station to the mounting plate. Fix the device on the mounting plate with the
set screw.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
