HIKVISION DS-KV6113-PE1 User Manual

Video Intercom Villa Door Station User Manual
31

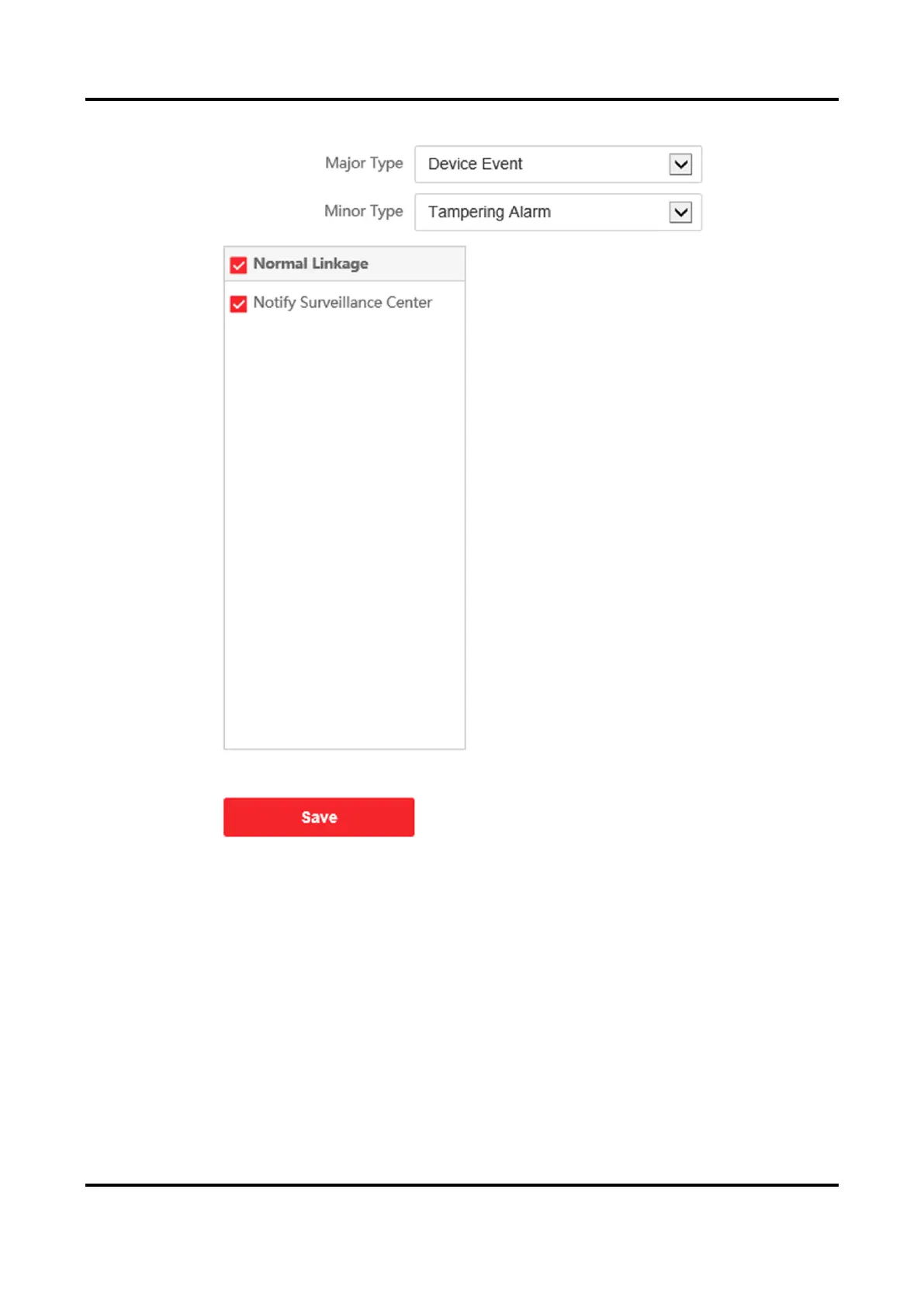

Figure 5-14 Event Linkage
2. Select the Major Type as Device Event or Door Event.
3. Select the type of the Normal Linkage for the event.
4. Click Save to enable the settings.
5.5.7 Schedule Settings
You can create call schedule, or else the device will call indoor station all day by default.
Steps
1. Click Schedule → Video Intercom.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
