HIKVISION E Series Quick Guide

E Series Network Speed Dome·Quick Guide
14
1. Hook the two ends of the safety rope to the back box of the speed dome and the wall mount
respectively. Route the cables through the mount as shown follows.
Safety Rope
Figure 2-4 Safety Rope
2. Loosen the lock screws on the wall mount as shown below.

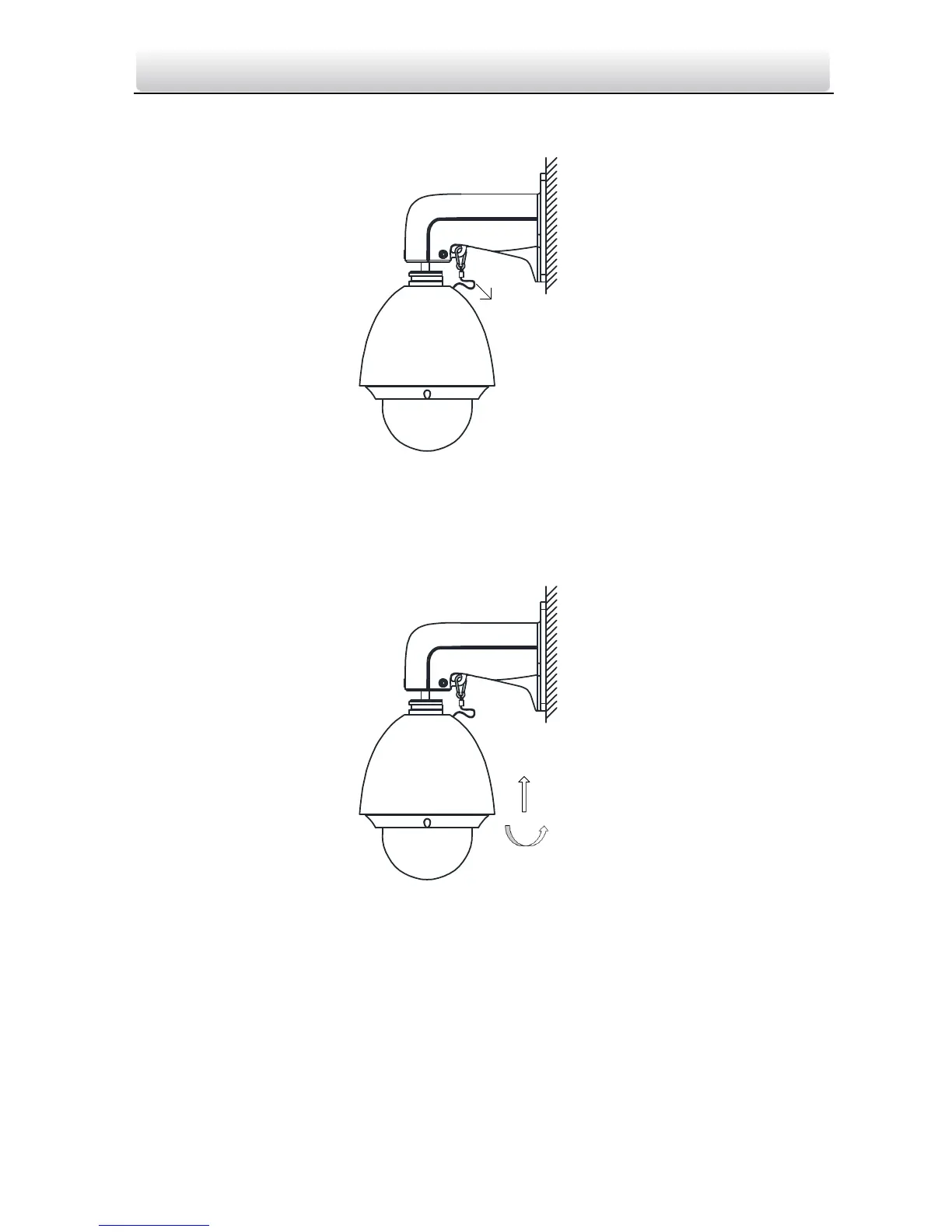

3. Align the speed dome with wall mount and rotate it counterclockwise or clockwise to the mount
tightly as shown below.
Push
Rotate
Lock
Screw
Figure 2-5 Align to the Mount
4. Use L-wrench to tighten the lock screws to secure the speed dome and the wall mount.
