Digital Video Rec
order User Manual
107

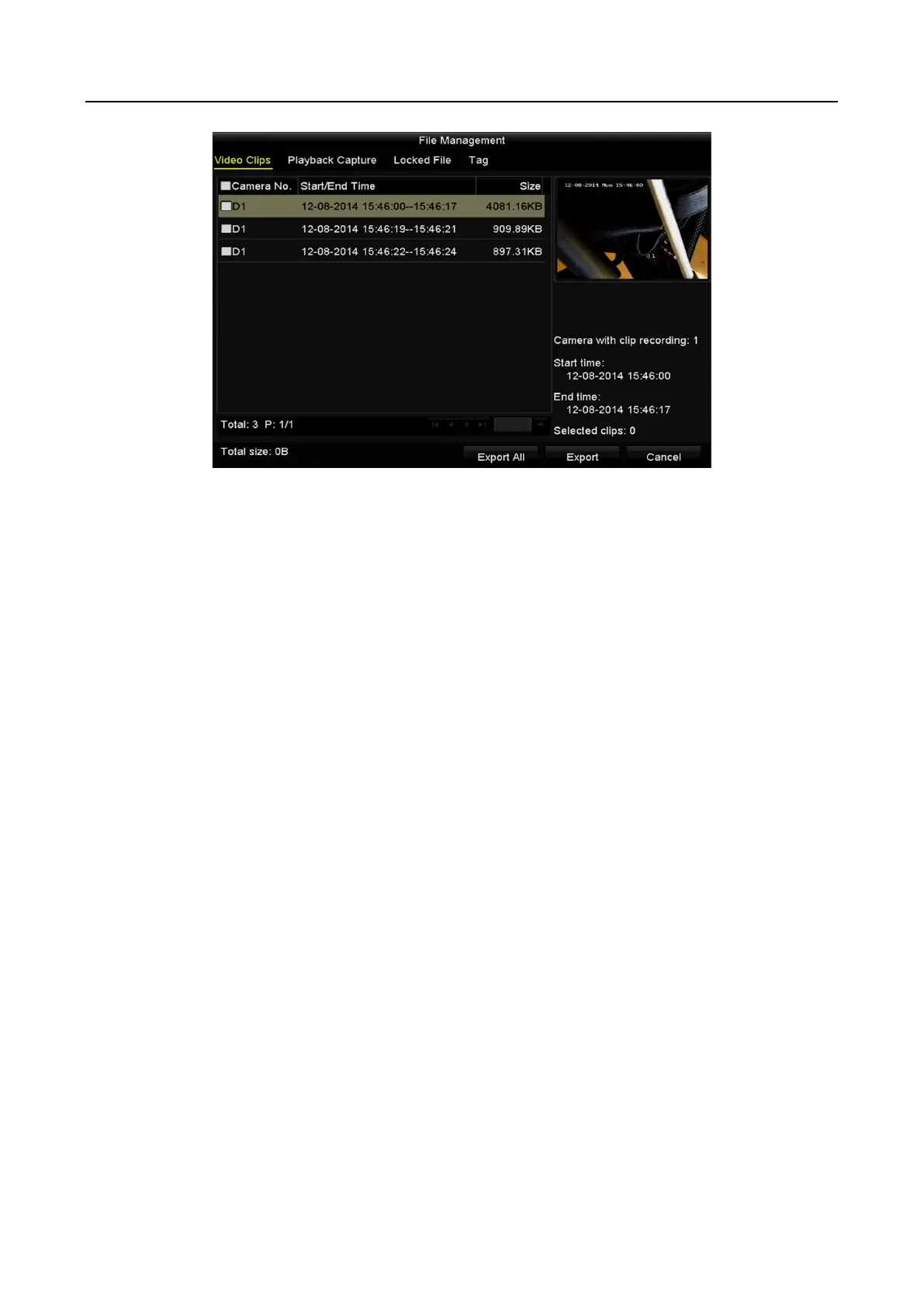

Figure 6-25
F
ile
Ma
nag
em
ent
Step 3
You can view the saved video clips, lock/unlock the file
s and edit the tags which you added in
the playback mode.
Step 4
If required, select the items and click
Export All
or
Export
to export the
clips/pictures/files/tags to local storage device.
107
109
