HIKVISION HWT-B123-M User Manual

Digital Video Recorder User Manual
83

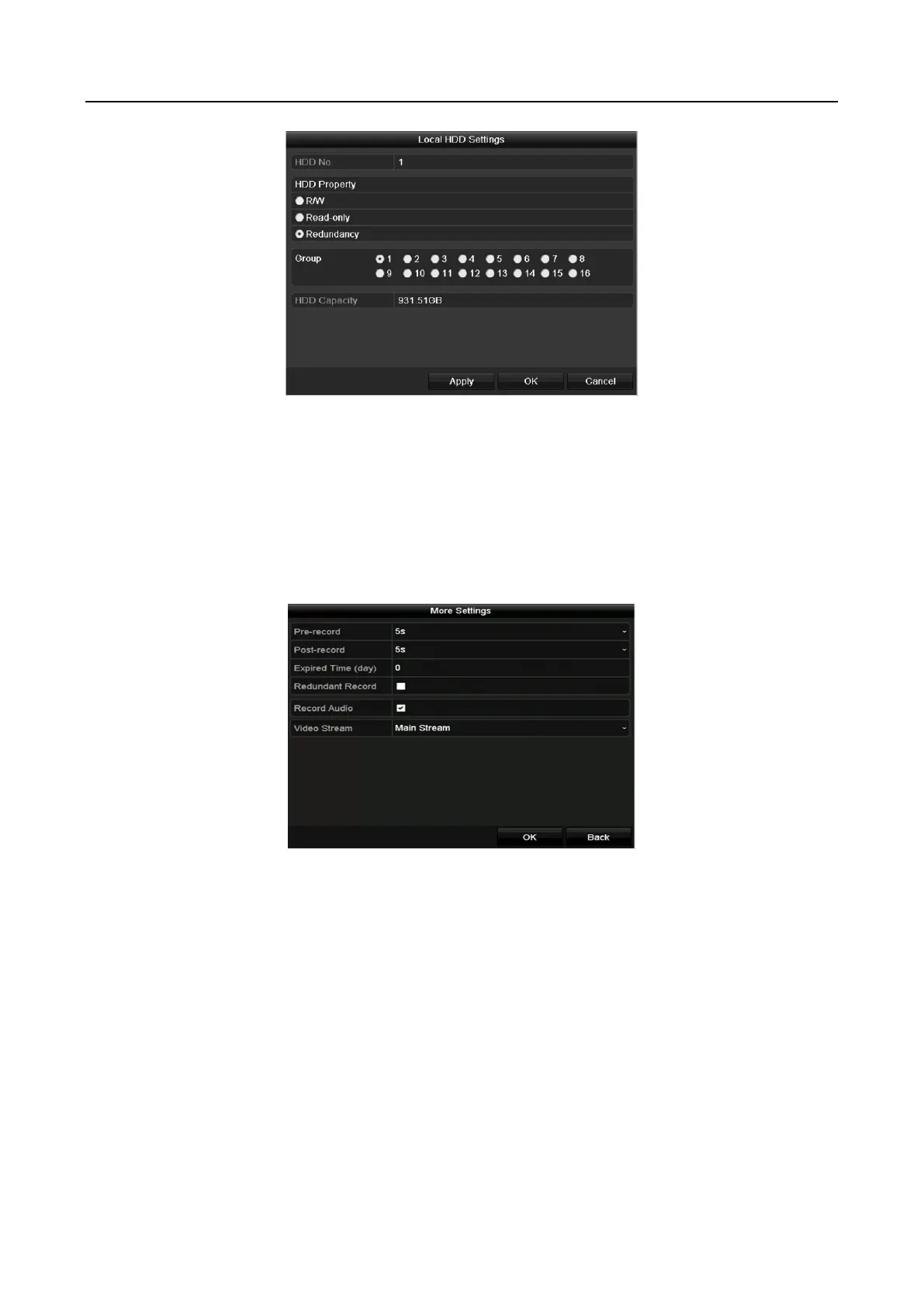

Figure 5-27 HDD General-Editing
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
Step 3 Go to Menu > Record > Parameters > Record.
1) Select Camera you want to configure.
2) Click More Settings button.
Figure 5-28 More Settings
3) Check the checkbox of Redundant Record.
4) Click OK to save the settings.
5) If the encoding parameters can also be used to other channels, click Copy and choose the
channel you want to apply the settings.
5.9 Configuring HDD Group
Purpose
You can group the HDDs and save the record files in certain HDD group.

HIKVISION HWT-B123-M Specifications

General

Brand	HIKVISION
Model	HWT-B123-M
Category	Security Camera
Language	English
