Digital Video Recorder User Manual
77

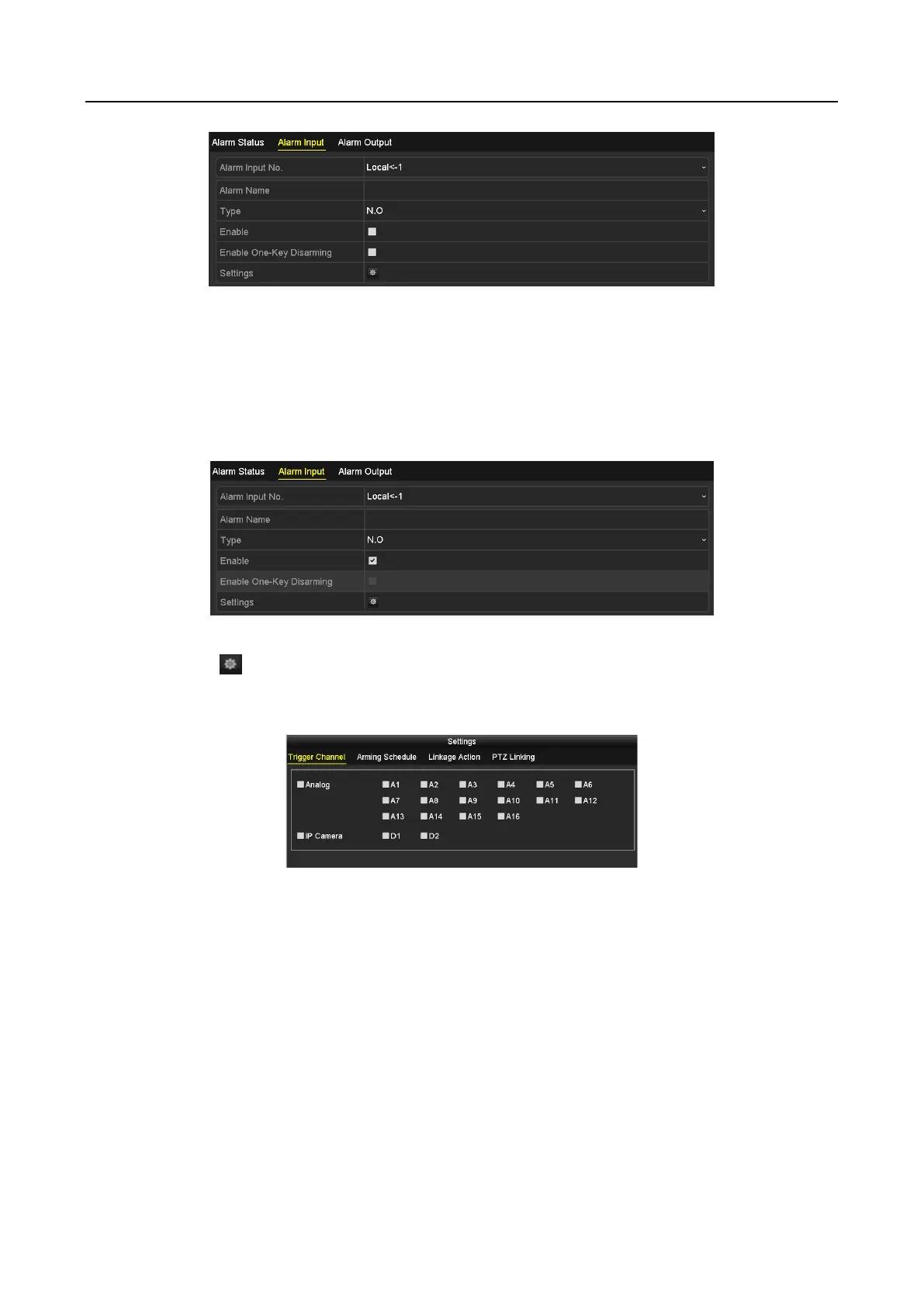

Figure 5-16 Alarm Settings- Alarm Input
Step 2 Select Alarm Input No.
Step 3 Input Alarm Name.
Step 4 Select N.O (normally open) or N.C (normally closed) for alarm type.
Step 5 Check the checkbox of Enable to enable alarm.
Figure 5-17 Enable Alarm
Step 6 Click the button after Settings to set the triggered channels, arming schedule, linkage
actions and PTZ linking. Refer to step 4 of Chapter 5.2 Configuring Recording and Capture
Schedule for detailed operations.
Figure 5-18 Alarm Handling
Step 7 Click Apply to save the settings.
Repeat the steps from 1 to 8 to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm
input number.
