HIKVISION HWT-B123-M User Manual

Digital Video Recorder User Manual
88
Task 1: Enabling the 1080P Lite Mode
Step 1 Go to Menu > Record > Advanced.

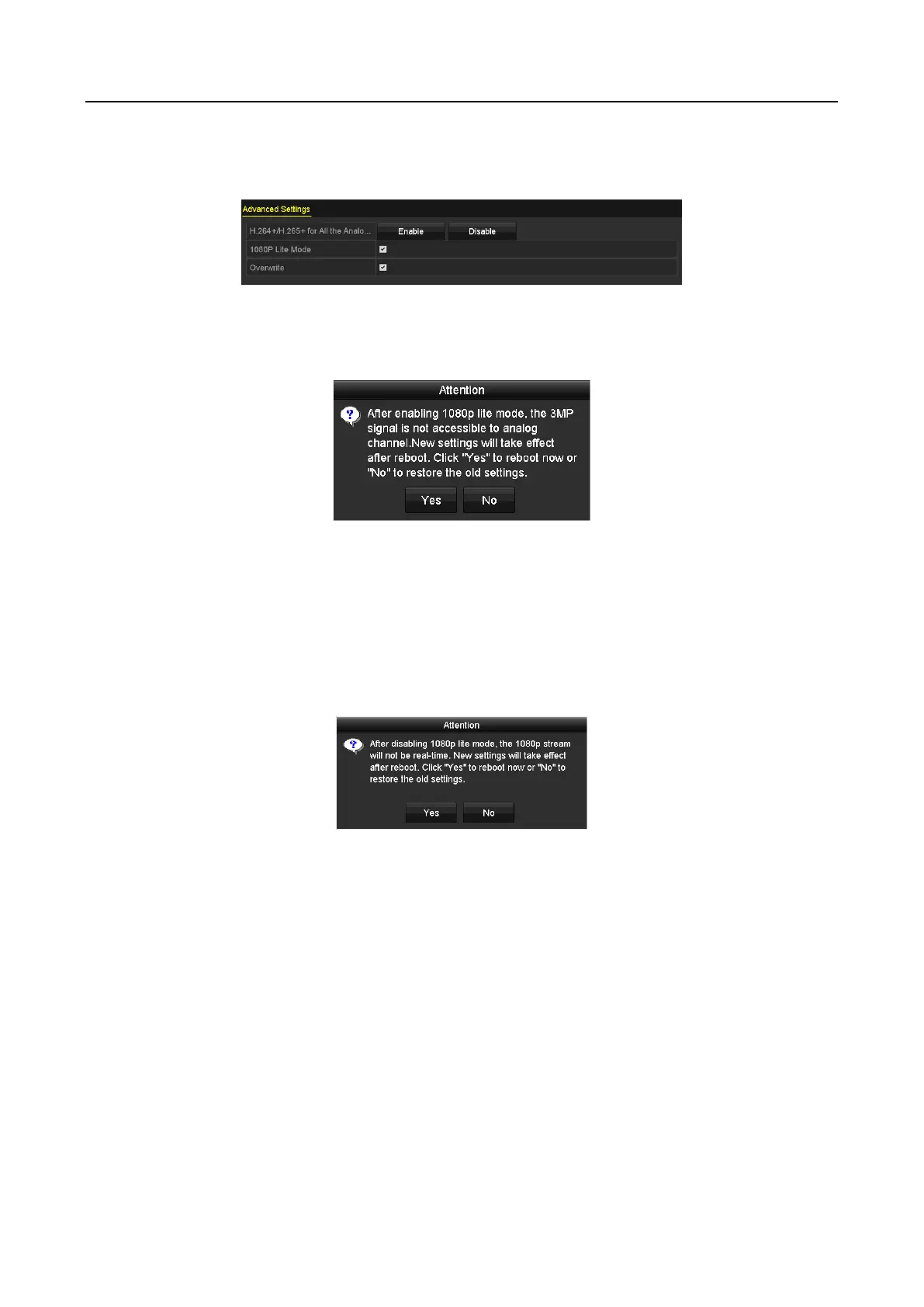

Figure 5-38 Advanced Interface
Step 2 Check the checkbox of 1080P Lite Mode and click Apply to pop up the attention box. After
enabling 1080p lite mode, the 3 MP signal is not accessible to analog channel.
Figure 5-39 Attention
Step 3 Click Yes to reboot the device to have new settings taken effect.
Task 2: Disabling the 1080P Lite Mode
Step 1 Go to Menu > Record > Advanced.
Step 2 Uncheck the checkbox of 1080P Lite Mode and click Apply. The following attention box
pops up.
Figure 5-40 Attention
Step 3 Click Yes to reboot the device to activate the new settings or No to restore the old settings.
