User Manual of Network Traffic Camera revise
17

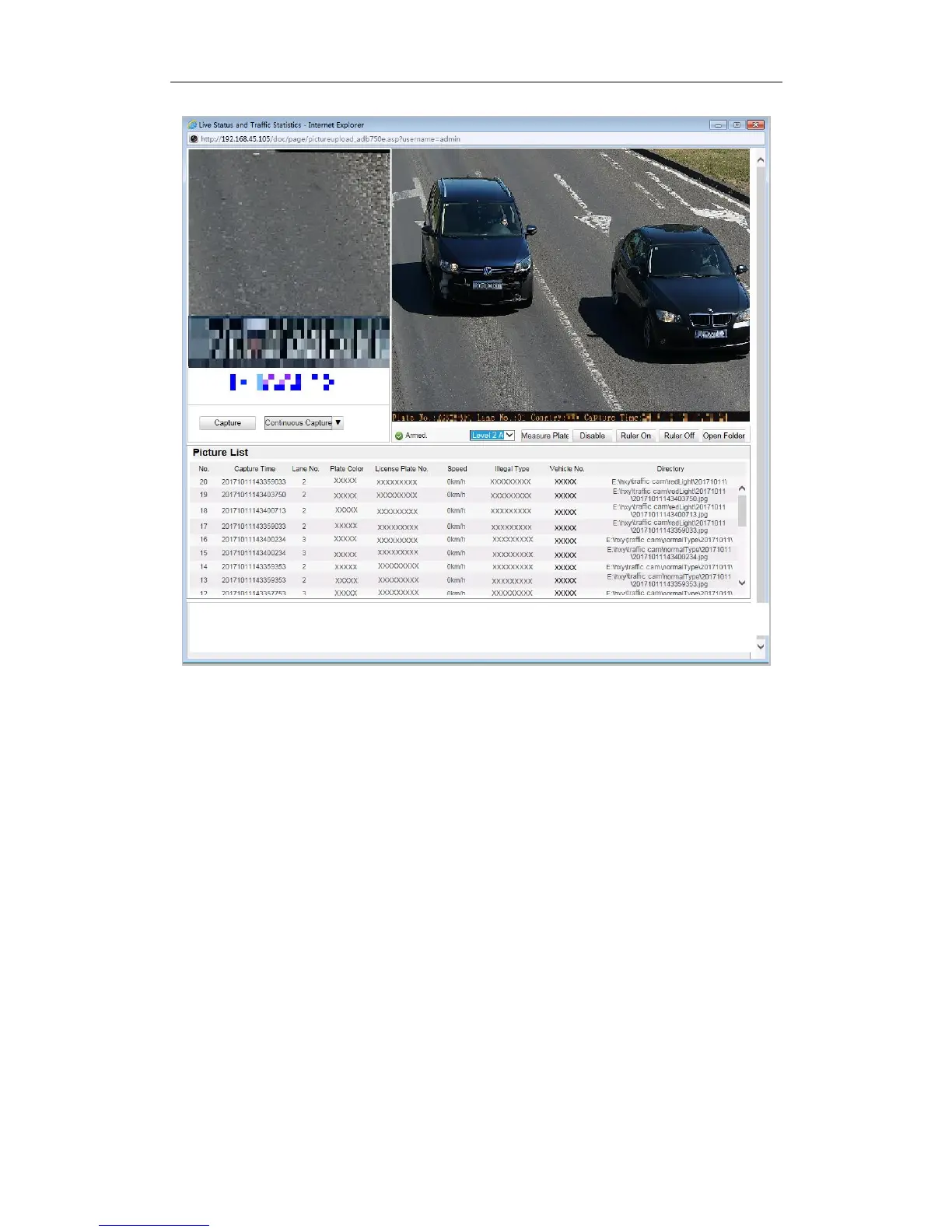

Figure 4-2 Live Status and Traffic Statistics
As displayed on the figure above, the picture area can be divided into three parts:
scene shot area, digital zoom area, license plate area.
Arm the camera: Level 1 Arming, Level 2 Arming, and Disarming are
selectable.
Level 1 Arming: The camera is allowed to connect to only one data storage
device for image and information uploading. It is recommended when you
develop products, that is, if you use SDK, level 1 arming is the only option.
Level 2 Arming: The camera is allowed to connect to three data storage
devices for image and information uploading.
Note: Level 2 Arming is recommended for debugging. Because when the
device is running, Level 1 Arming cannot be activated.
Measure Plate: Measure the pixel of the captured license plate. You can click

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION iDS-TCM203-A and is the answer not in the manual?

HIKVISION iDS-TCM203-A Specifications

General IconGeneral
Form factorBullet
Mounting typeCeiling/wall
Product colorGray
Protection featuresWater resistant
International Protection (IP) codeIP66
TypeIP security camera
CertificationCE, FCC
Placement supportedOutdoor
Connectivity technologyWired
Maximum operating distance50 m
Number of lenses1
Focal length range8 - 32 mm
Maximum aperture number1.4
Video streamingYes
Total megapixels2 MP
Maximum resolution1920 x 1080 pixels
Video compression formatsH.264, H.265, M-JPEG
Wi-FiNo
Ethernet interface typeGigabit Ethernet
Supported network protocolsTCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
RS-485 ports2
Sensor typeCMOS
Optical sensor size1/1.8 \
LED typeIR
Infra-red wavelength850 nm
Number of illumination LEDs3
Minimum illumination- lx
Field of view (FOV) angle42.5 °
Audio input channels2 channels
Sustainability certificatesRoHS
Operating temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)5 - 95 %
DC output voltage24
Power source typeDC
Power consumption (max)15 W
Weight and Dimensions IconWeight and Dimensions
Depth428.5 mm
Width120 mm
Height132.8 mm
Weight3120 g
