HIKVISION iDS-TCM203-A User Manual

User Manual of Network Traffic Camera revise
39

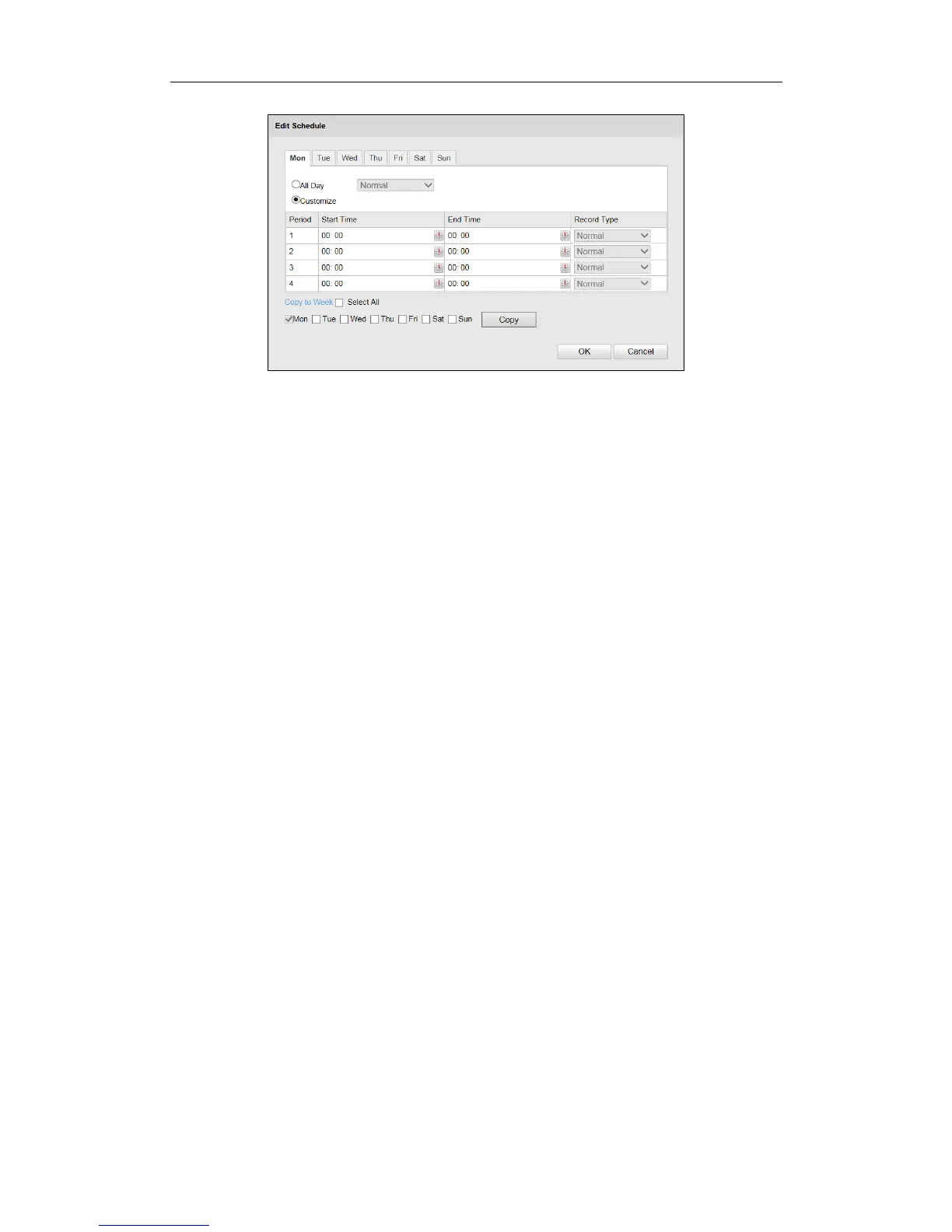

Figure 9-5 Edit Record Schedule
1) Select the day to set the record schedule.
2) Set all-day record or segment record.
If you want to configure the all-day recording, check the All Day checkbox.
If you want to record in different time sections, check the Customize
checkbox. Set the Start Time and End Time.
Notes:
 The time of each segment cannot be overlapped. Up to 4 segments can
be configured.
 The default record type is Normal and you cannot edit it.
3) Check Select All and click Copy to copy settings of this day to the whole
week. You can also check any of the checkboxes before the date and click
Copy.
4) Click OK to save the settings and exit from the interface.
6. Click Save to save the settings.
9.5 Configuring Redundant Storage
Purpose:
You can manage the storage, view the HDD information, format the HDD, etc.
Steps:
1. Go to Configuration > Device Configuration > Encoding and Storage >

HIKVISION iDS-TCM203-A Specifications

General

Form factor	Bullet
Mounting type	Ceiling/wall
Product color	Gray
Protection features	Water resistant
International Protection (IP) code	IP66
Type	IP security camera
Certification	CE, FCC
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	50 m
Number of lenses	1
Focal length range	8 - 32 mm
Maximum aperture number	1.4
Video streaming	Yes
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.265, M-JPEG
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
RS-485 ports	2
Sensor type	CMOS
Optical sensor size	1/1.8 \
LED type	IR
Infra-red wavelength	850 nm
Number of illumination LEDs	3
Minimum illumination	- lx
Field of view (FOV) angle	42.5 °
Audio input channels	2 channels
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
DC output voltage	24
Power source type	DC
Power consumption (max)	15 W

Weight and Dimensions

Depth	428.5 mm
Width	120 mm
Height	132.8 mm
Weight	3120 g

Summary

Safety and Precautions

General Safety Instructions

Essential instructions for safe operation and installation.

Network Connection Setup

Live View Functionality

Local Configuration Settings

Purpose and Notes

Configuring live view, recording, and picture settings on the PC.

System Configuration

Configuring Installation Parameters

Setting installation parameters for speed detection.

Configuring Serial Ports

Configuring TCP/IP Network Settings

Configuring network parameters like IP address and subnet mask.

Configuring Port Numbers

Setting HTTP, RTSP, and SDK port numbers.

Configuring HTTPS Secure Access

Steps to configure HTTPS for secure web access.

Encoding and Storage Configuration

Configuring Video Encoding

Settings for main and sub-stream video encoding.

Configuring Image Encoding

Settings for capture resolution and JPEG picture size.

Configuring ROI (Region of Interest)

Setting up Region of Interest encoding for better quality.

Configuring Record Schedule

Setting up scheduled recording and overwriting.

Configuring Redundant Storage

Managing storage, formatting HDD, and setting quotas.

Configuring FTP Upload

Configuring FTP server for uploading captured pictures.

Text Overlay Configuration

Configuring Single Picture Overlay

Setting overlay information for single captured pictures.

Configuring Text Overlay on Video

Customizing video OSD on the screen.

Capture Parameters Configuration

Configuring License Plate Parameters

Settings for license plate recognition.

Configuring Flash Light Parameters

Settings for flash light control.

Configuring Cabinet Parameters

Image Parameters Configuration

Configuring General Parameters

Setting general image parameters like saturation and sharpness.

Configuring Video Image Parameters

Adjusting brightness, contrast, shutter speed for video.

Configuring Picture Parameters

Configuring shutter parameters for captured images.

Configuring ICR (IR Cut Filter)

Configuring IR Cut Filter modes for surveillance.

Application Mode Configuration

Smart Mode Configuration

Configuring target capture and license plate recognition via video analysis.

Exception Handling

Exception Type Configuration

Maintenance Procedures

Checking Device Status

Managing User Accounts

Configuring device accounts and user permissions.

Adding a New User Account

Steps to add a new user account with specific permissions.

Modifying a User Account

Restoring Default Settings

Importing Configuration File

Upgrading the System

Appendix: SADP Software

Modifying Network Parameters

Steps to modify network parameters of selected devices using SADP.
