HIKVISION MV-PD030001-01 User Manual

Hikvision Fixed Under Vehicle Surveillance System User Manual
14
 Modularized design for easy installation and maintenance
 Dual protections from water and fog
 Professional light source driver module to ensure stable lighting
 Professional lighting angle design to ensure uniform illuminance for various vehicle
undercarriage types
 High-power super bright LED module
 Wide working temperature, ranging from -25 ºC to +70 ºC
 Anti-corrosion stainless steel cover to bear heavy vehicles
2.3 Wiring Instruction
Wiring of the UVSS is quite simple. You only need to connect cables of the main body to the
control cabinet, as shown below.

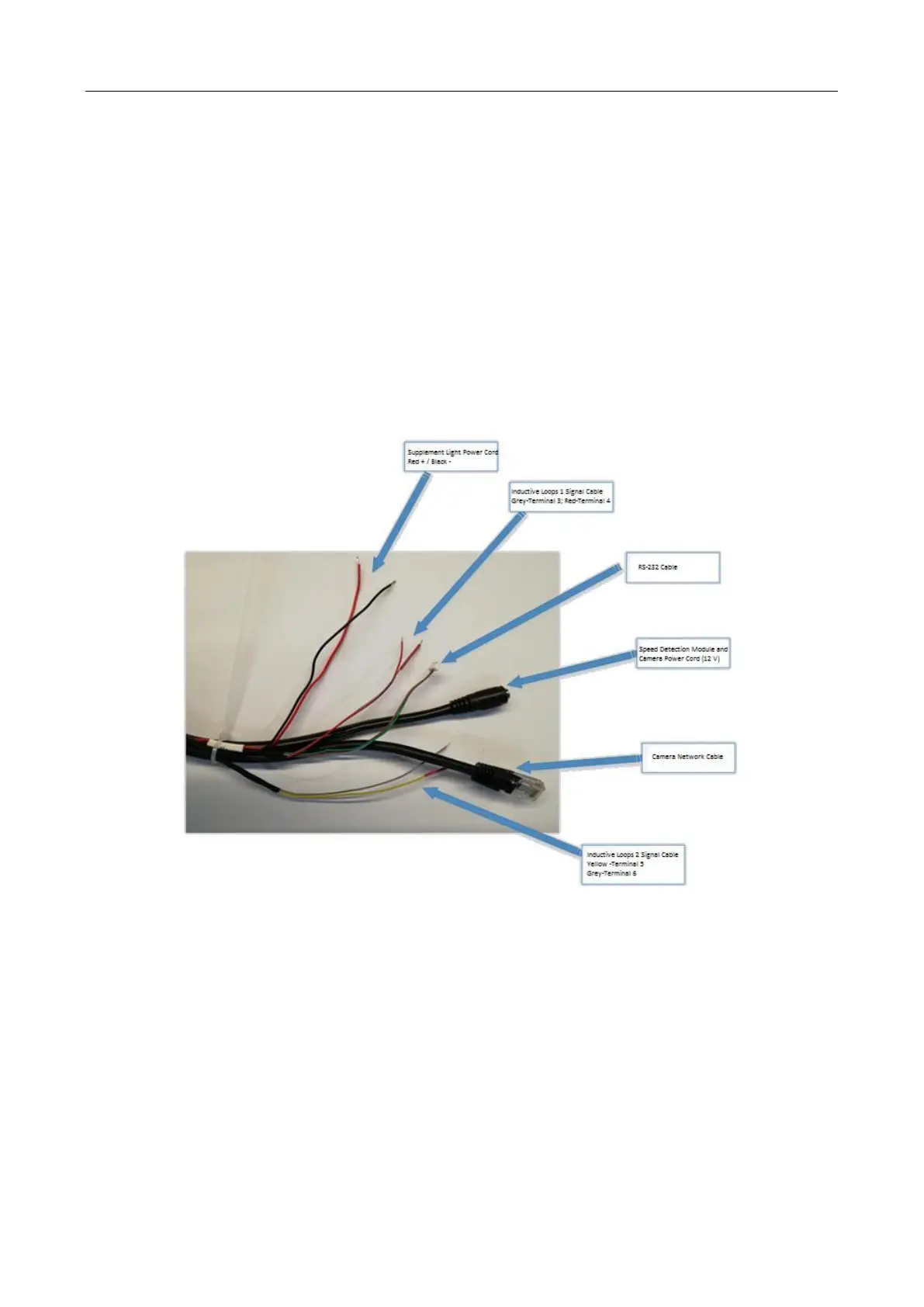

Figure 2-7 Main Body Cable Connectors

HIKVISION MV-PD030001-01 Specifications

General

Brand	HIKVISION
Model	MV-PD030001-01
Category	Security System
Language	English
