When using the remote control switch ( ) or the
automatically recognized as the slave unit of the indoor unit #2 and
unit is not required. However, the contents of the setting should be
checked.)
#
When using other controllers than the described above, the indoor unit can not be recognized as the slave unit
automatically, and set as the master unit of group 5. In this case change the setting to the slave unit of the group
3 according to the above "Group Setting Procedure".

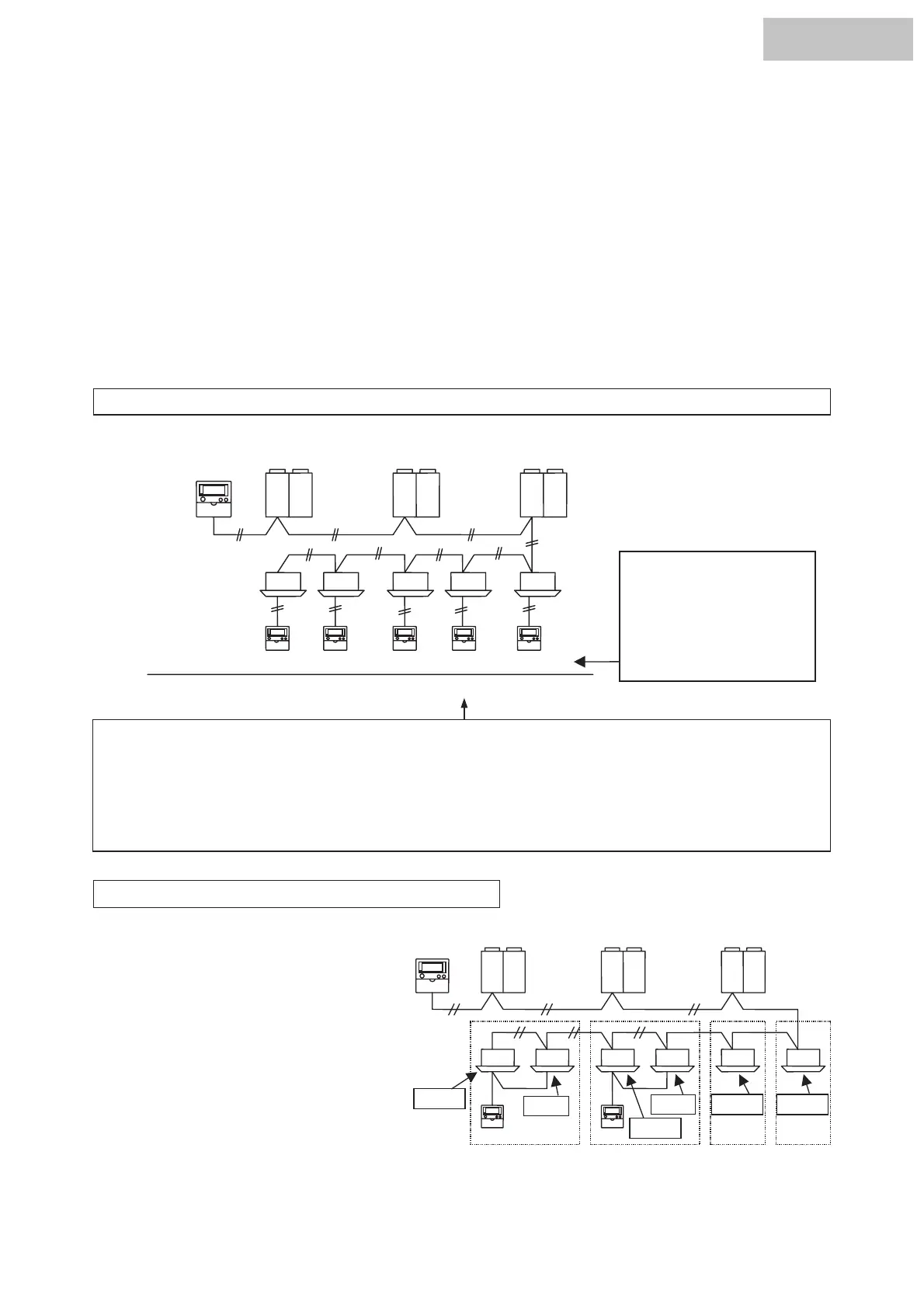

Case 1: System of Less Than 16 Indoor Units Connected, Refrigerant System Address and Indoor Unit Address
The group is automatically set as zone No. 1 by the indoor unit address regardless of the refrigerant cycle address.
Set the indoor unit address without duplication of address.
Setting of
Indoor Unit RSW
Group No.
The address setting "0" to "15"
or "0" to "F" of indoor unit is
corresponding to the group No.
"1" to "16" of central station.
(The setting can be changed by
the procedure of "2. System of
More Than 17 Indoor Units
Connected".)
01 23
4
12 3* 5
Central
Station
Case 2:
System of More Than 17 Indoor Unit Connected
In this case, the group setting by central
station is required. Group setting is for
master unit (directly connected to remote
control switch) and slave unit (connected
by extension cable).
In case that the remote control switch is
not connected, the group setting by
remote control switch is not available and
only one master unit is controlled as one
group.
In case of up to 16 indoor units connected,
the group setting is automatically
performed as described in "1. System of
Less Than 16 Indoor Units Connected,
Refrigerant System Address and
Indoor Unit Address". In this case,
correct the group setting by the
next page procedure.
Without Remote
Control Switch
Master
Slave
Master
Master
Slave
Master
Refrigerant No. Setting
1 1 2 2 3 3
Indoor Unit RSW Setting 0 1 0 1 0 1
Group No. 1 2 3 4
Central
Station
!
Group Setting Procedure
- The group setting consists of the master unit setting and the slave unit setting. The indoor unit, which is connected
directly to the remote control switch, is set as the master unit, and the indoor unit connected with the transmission
line is set as the slave unit.
- Without the remote control switch, the control by the remote control switch group is not available.
Therefore, in this case, one indoor unit is set as one group. (Only the master unit is set without the slave unit.)
- When setting the remote control switch group without transmission line between indoor units, the indoor unit
connected with the remote control switch shall be set as master unit.
- When using the remote control switch ( ) or receiver kit
central station automatically set the slave unit.
Check for the setting state by the slave unit setting mode.
HYXE‐A01H
(HYRE-V01H), after the setting of master unit, the
HYXE‐A01H
receiver kit (HYRE-V01H), the indoor units are
set to the group 3. (The setting of the slave
HYJE-D02H
To Next Page
