8-3. Confirmation for Use of Sub Fence (B)
The Models C 10FCH2 and C 10FCE2 are equipped with
sub fence (B). Use sub fence (B) for miter cutting and
right bevel cutting. Sub fence (B) supports the workpiece
widely for stable cutting. In the case of left bevel cutting,

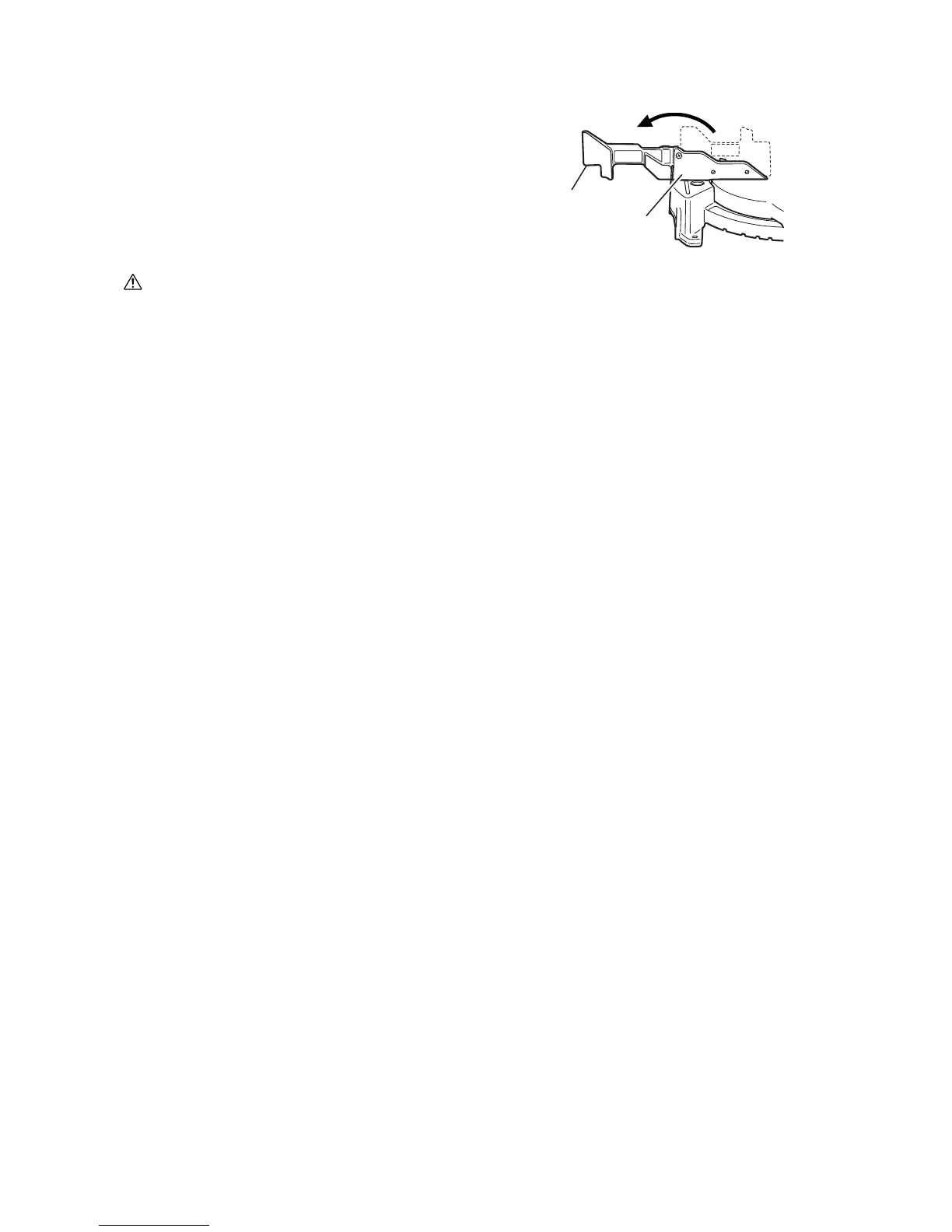

raise sub fence (B) as illustrated in Fig. 11 and turn it
counterclockwise.
Sub fence
Left bevel cutting
Fig. 11
Miter cutting
Right bevel cutting
WARNING: In the case of left bevel cutting, turn sub fence (B)
counterclockwise. Unless it is turned counterclockwise, the main body or saw blade may
contact the sub fence, resulting in an injury. Be sure to instruct the customers to turn sub
fence (B) counterclockwise in the case of left bevel cutting.
Fence (B)
Turn.

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
