Hitachi C 10FCH2 Technical Data And Service Manual

--- 20 ---
11. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY
11-1. Precautions in Disassembly and Reassembly of the Laser Marker (Only the Model C 10FCH2)
Do not stare into the laser emitting aperture during disassembly and reassembly of the laser marker. Do not
observe beam directly with an optical instrument. Use of controls or adjustments or performance of procedures
other than those specified in this TECHNICAL DATA AND SERVICE MANUAL and the Instruction Manual may
result in hazardous radiation exposure.
11-2. Disassembly
Special attention in disassembly should be given to the following items. The circled numbers in the figures and
the [Bold] numbers in the descriptions below correspond to the item numbers in the pars list and exploded
assembly diagram of the Model C 10FCH2. For the Model C 10FCE2, refer to the parts list separately.
Be sure to first disconnect the power plug when performing disassembly or replacement of the saw blade.

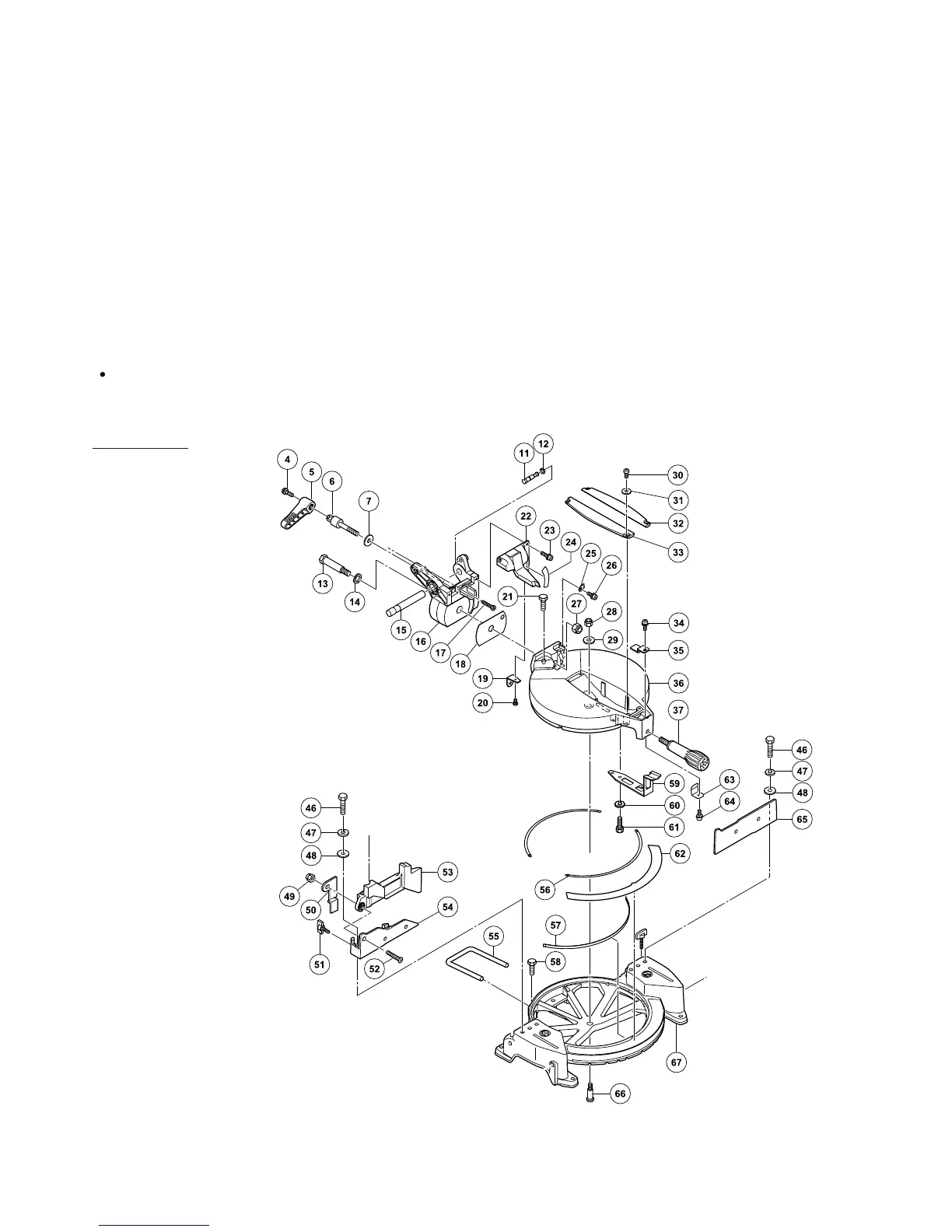

A. Turn table and base
Tools required:
• Phillips screwdriver
• Flat-blade screwdriver
• Box wrench 13 mm
• Box wrench 19 mm
Fig. 27

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
