Hitachi C 10FCH2 Technical Data And Service Manual

--- 35 ---
Tolerance
0.38/220 (0.016"/8-5/8")
0.4/height of fence (0.016"/height of fence)
0.1 (0.004")
0.4/100 (0.016"/4")
0.4/100 (0.016"/4")
0.2 ( 0.008")
0.1 ( 0.004")
11-7. Lubrication
Advise the customer to lubricate the machine as indicated below at least once a month. Also, prior to applying
lubrication, any sawdust, dirt or other foreign matter should be thoroughly wiped away with a soft cloth.
(1) Swiveling section of the Gear Case [123] and the Hinge [16]
Coat the swiveling and sliding portion of the Gear Case [123] and the Hinge [16] with machine oil.
(2) Vise ass'y section
Coat the screw thread portion of the Knob Bolt M10 x 66 [39] of the Vise Ass'y [38] with machine oil.
(3) Swiveling section of the Turn Table [36] and the Hinge [16]
Coat the swiveling and sliding portion of the Turn Table [36] and the Hinge [16] with machine oil.

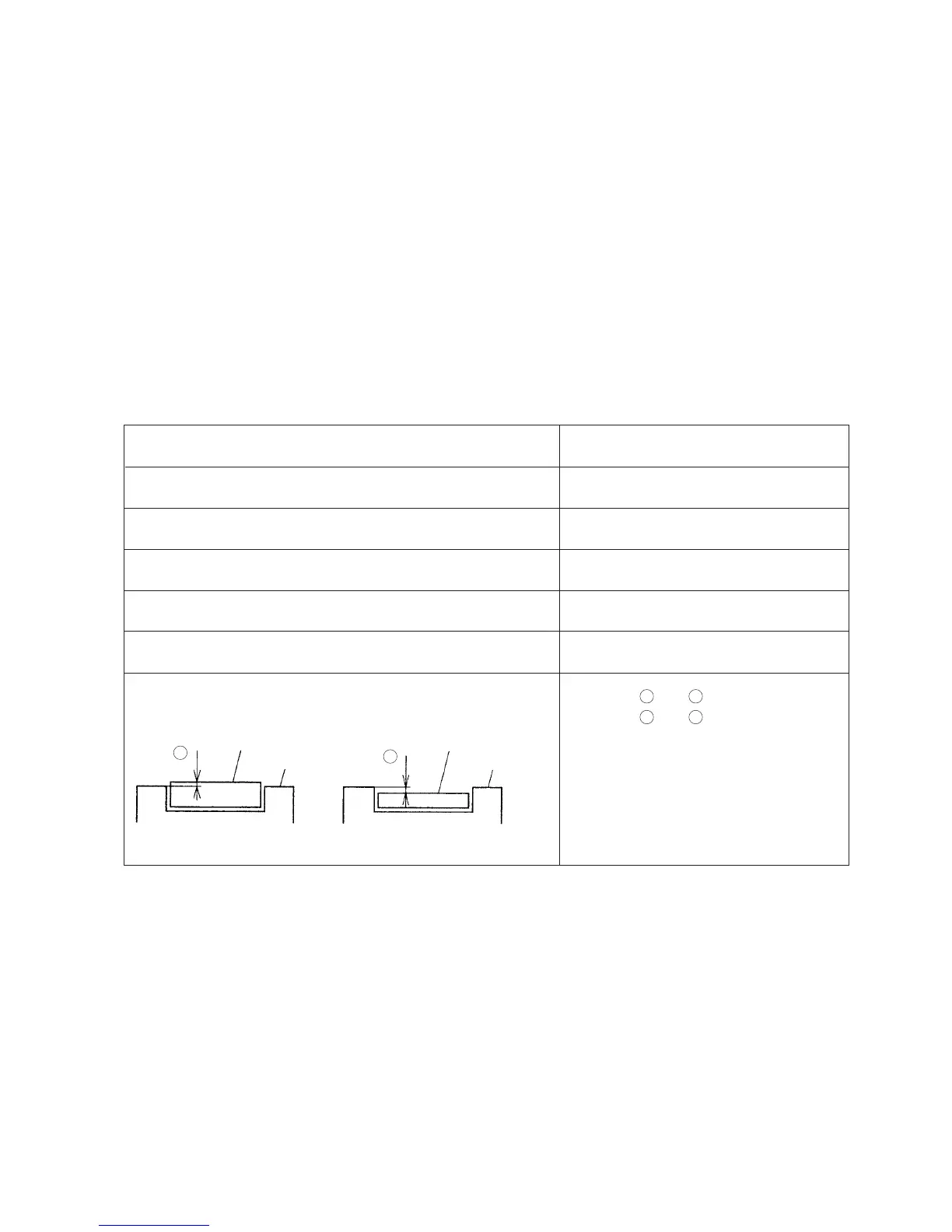

11-8. Product Precision
On completion of reassembly, confirm precision tolerances.
Item
Run-out of dummy disc
Squareness between base and fences (A) and (B)
Flatness between fence (A) and fence (B)
Squareness between dummy disc and fences (A) and (B)
Squareness between dummy disc and turn table
Surface alignment of base and turn table
(Use the upper surface of the base as a reference.)
(Unit: mm)
Turn table
--
+
--
+
Base
Turn table
Base
Fig. 38
+
--

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
