Hitachi C 10FCH2 Technical Data And Service Manual

--- 28 ---

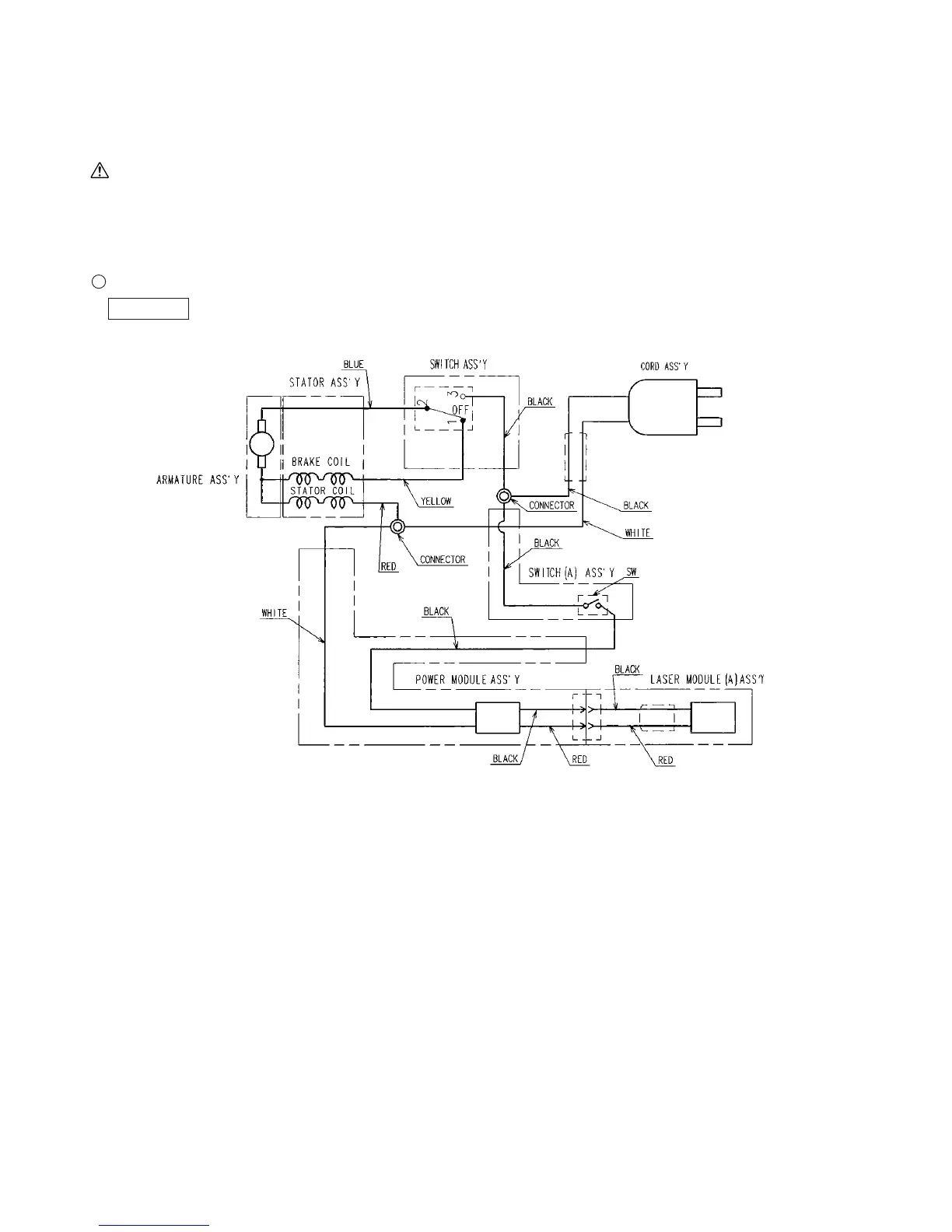

11-4. Wiring Diagram
Carefully ensure that wiring is accomplished as illustrated below. As incorrect wiring will result in lack of rotation,
reverse rotation or other malfunctions, close attention is absolutely necessary.
WARNING: Be sure to turn off the Switch (W/Cover) [165] on the side of the switch handle and unplug
the power cord plug from the receptacle before replacing the Laser Holder [1] and the
Switching Power Supply [157]. Do not stare into beam while the laser marker is lighting.
Wiring diagram
C 10FCH2 USA/CAN
Fig. 32-1
1

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
