APPLICATIONS
Wood and aluminum sash.
PREPARATION BEFORE OPERATION
Make the following preparations before operating the power tool:
1. Installation

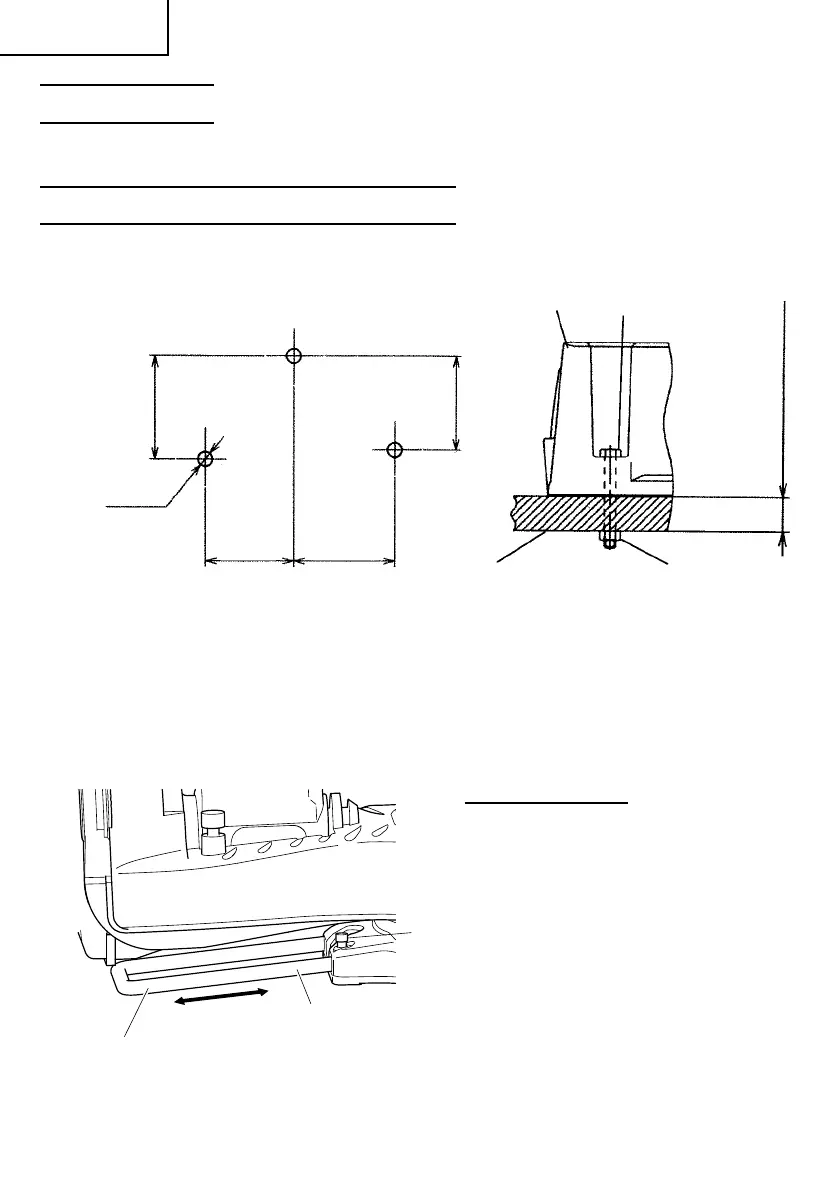

Fig. 4
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16" (8 mm) diameter bolts suitable in length for the thickness of the work
bench.
Bolt length should be at least 1-9/16" (40 mm) plus the thickness of the work bench.
For example, use 2-9/16" (65 mm) or larger bolts for a 1" (25 mm) thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Holder adjustment:
Loosen the 6 mm bolt with the 10 mm
box wrench.
Adjust the holder until its bottom surface
contacts the work bench surface.
After adjustment, firmly tighten the 6
mm bolt.
Fig. 5
6 mm
Bolt
Move
Adjust the holder until its bottom surface contacts
the work bench surface.
Holder
11-1/16"
(281 mm)
11/32" (9 mm)
3 holes
10-5/64"
(256 mm)
9-39/64"
(244 mm)
1" (25 mm) thick bench
Work bench 5/16" (8 mm) nut
5/16" (8mm) boltBase
11-1/16"
(281 mm)
