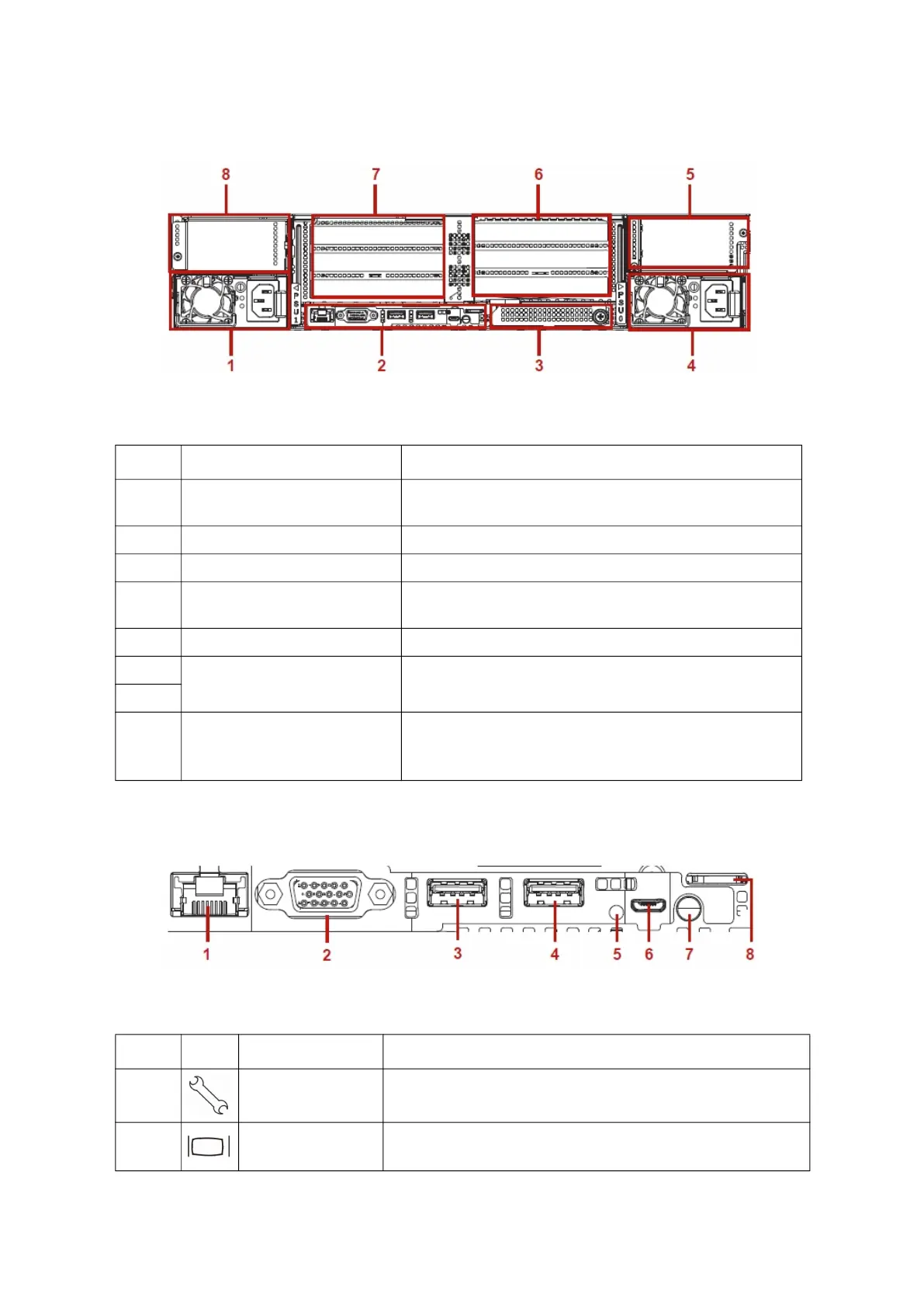

System Rear View
Figure 1-4. System Rear View
System Rear I/O
Figure 1-5. System Rear I/O
Table 5: System Rear View
NO. FEATURE DESCRIPTION
1. Power sub-system
Main power supply unit (PSU1). See Power Sub-System on
page 1-12
2. System I/O ports See System Rear I/O on
page 1-11
3. Expansion slot Support OCP 3.0 mezzanine card installation (CPU0)
4. Power sub-system
Main power supply unit (PSU0). See Power Sub-System on
page 1-12
5. Expansion op
tion Single-Wide HHHL PCIe Expansion Slot
6.
Expansion slot Support full height PCIe card installation
7.
8. Expansion option
 Rear 2.5” HDD: House up to two 2.5” storage drives
 Rear Single-Wide Expansion Slot: House HHHL PCIe card
installation
Table 6: System Rear I/O Definition
NO. ICON NAME DESCRIPTION
1. Dedicated NIC Dedicated RJ45 connector
2. VGA connector
Maximum display resolution: 1920x1200 32bpp@60Hz
(reduced blanking) (Display Priority: First; one device one time)
