Hitachi L32A102 User Manual

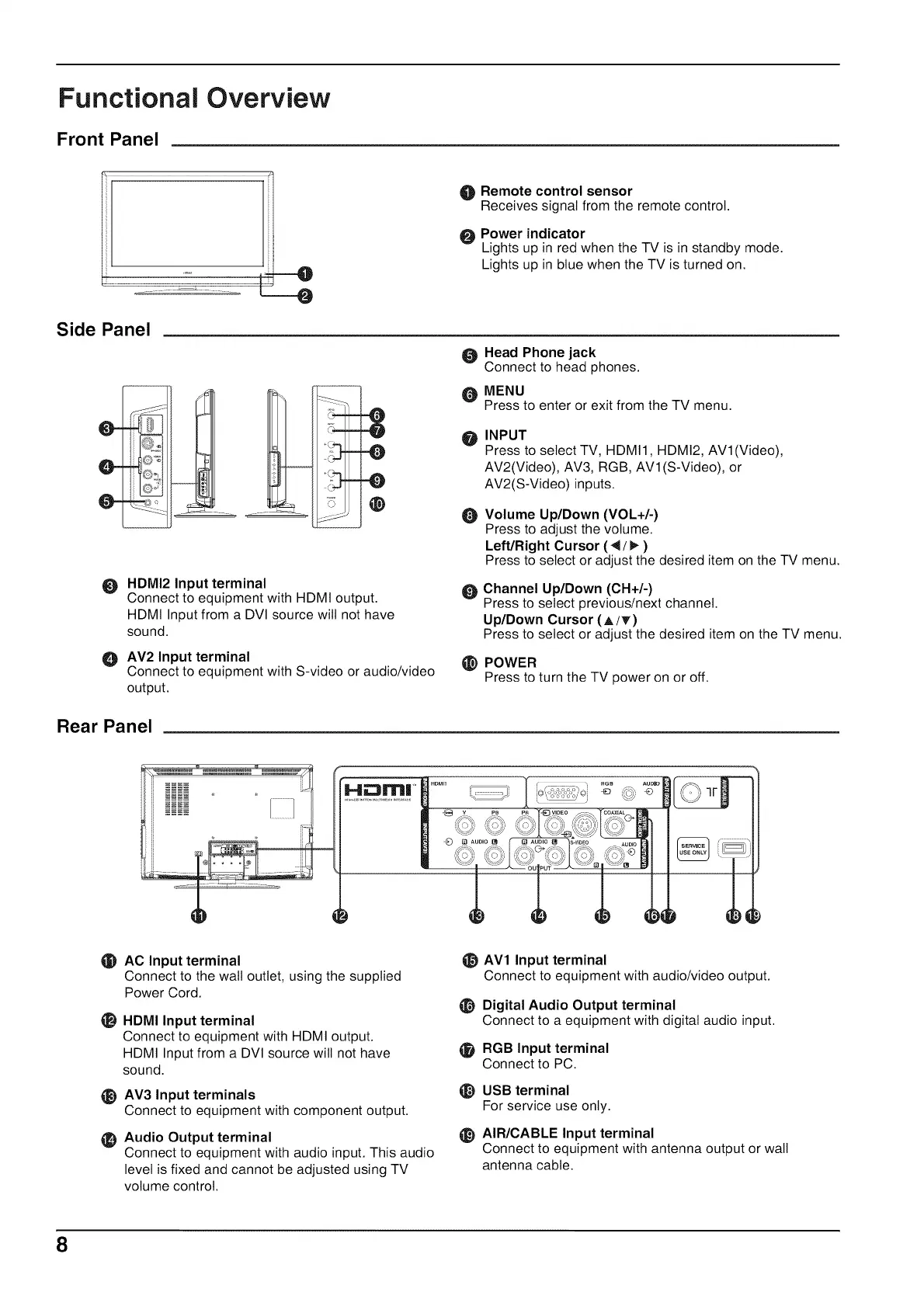

Functional Overview
Front Panel
O Remote control sensor
Receives signal from the remote control.
Power indicator
Lights up in red when the TV is in standby mode.
Lights up in blue when the TV is turned on.
Side Panel
Head Phone jack
Connect to head phones.
_G"q
Gj ¸
_ii @
MENU
Press to enter or exit from the TV menu.
@
INPUT
Press to select TV, HDMI 1, HDMI2, AVl(Video),
AV2(Video), AV3, RGB, AVl(S-Video), or
AV2(S-Video) inputs.
O Volume Up/Down (VOL+/-)
Press to adjust the volume.
Left/Right Cursor (4 / _ )
Press to select or adjust the desired item on the TV menu.
HDMI2 Input terminal
Connect to equipment with HDMI output.
HDMI Input from a DVI source will not have
sound.
0
Channel Up/Down (OH+l-)
Press to select previous/next channel.
Up/Down Cursor (A/T)
Press to select or adjust the desired item on the TV menu.
O AV2 Input terminal
Connect to equipment with S-video or audio/video
output.
_) POWER
Press to turn the TV power on or off.
Rear Panel
.... ...............l__< }
®
®
®
®
AC Input terminal
Connect to the wall outlet, using the supplied
Power Cord.
HDMI Input terminal
Connect to equipment with HDMI output.
HDMI Input from a DVI source will not have
sound.
AV3 Input terminals
Connect to equipment with component output.
Audio Output terminal
Connect to equipment with audio input. This audio
level is fixed and cannot be adjusted using TV
volume control.
® AVl Input terminal
Connect to equipment with audio/video output.
® Digital Audio Output terminal
Connect to a equipment with digital audio input.
® RGB Input terminal
Connect to PC.
® USB terminal
For service use only.
®
AIR/CABLE Input terminal
Connect to equipment with antenna output or wall
antenna cable.
8

Hitachi L32A102 Specifications

General

Brand	Hitachi
Model	L32A102
Category	LCD TV
Language	English
