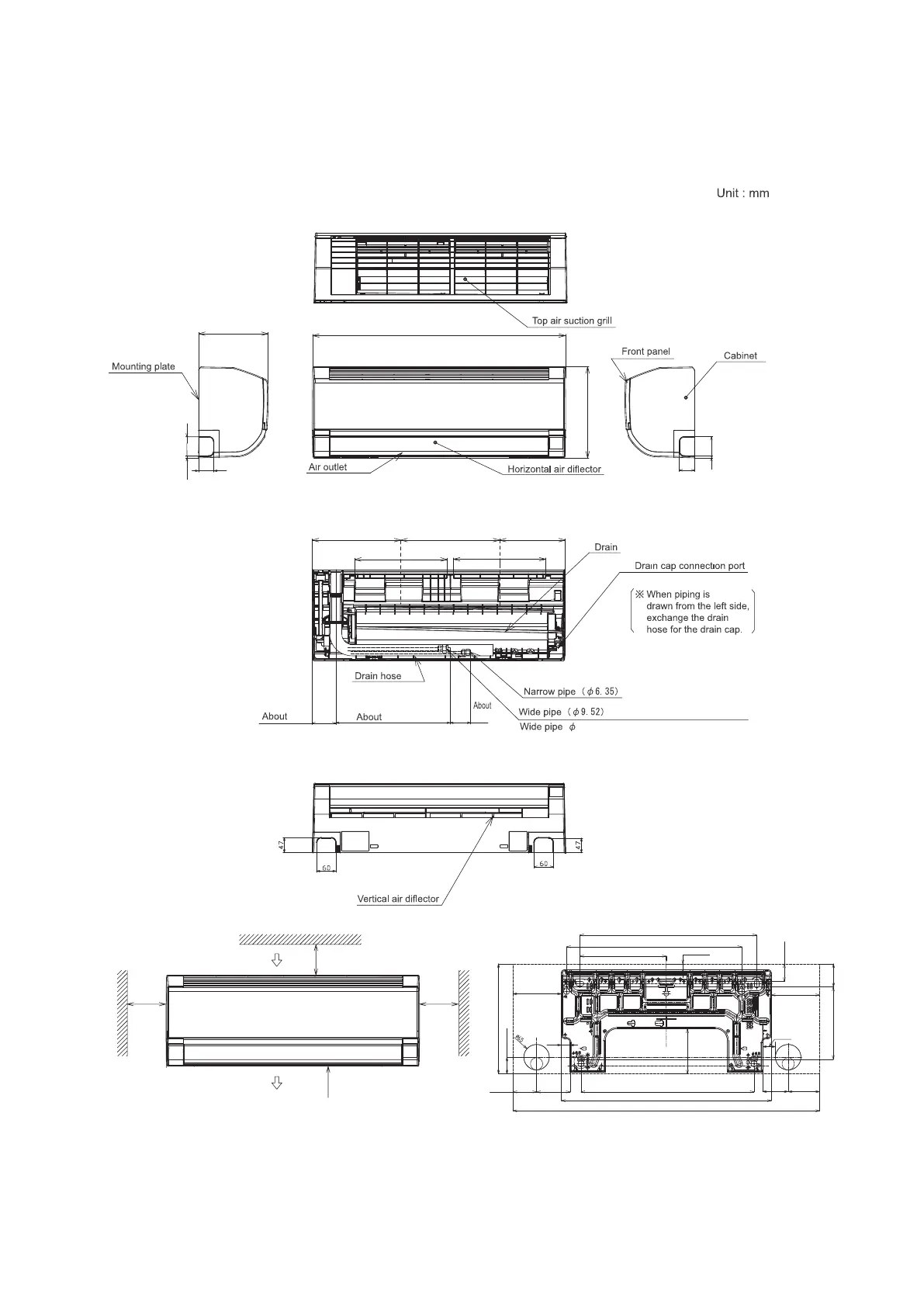

CONSTRUCTION AND DIMENSIONAL DIAGRAM
MODEL RAK-15QEF,RAK-18REF,RAK-25RE
RAK-25REFC,RAK-35REFC,RAK-50REFC
F,RAK-35REF,RAK-50REF
More than
50mm
More than
More
than
50mm
50mm
More
than
Service space
2300mm
INDOOR UNIT
(RAK-18/25/35REF、RAK-25/35REFC)
( 12.7) (RAK-50REF、RAK-50REFC)
440mm
534mm
780mm
65mm
450mm
445mm
220mm
123mm
85mm
60mm
80mm
22mm
32.5mm
123mm
280mm
42.5mm
184mm
59mm
45mm
115mm
15mm
215 780
304
347
70
73
47 47
5 60
280
5 06
203273
284 284
19
