Hitachi SJ300 Series Quick Reference Guide

3

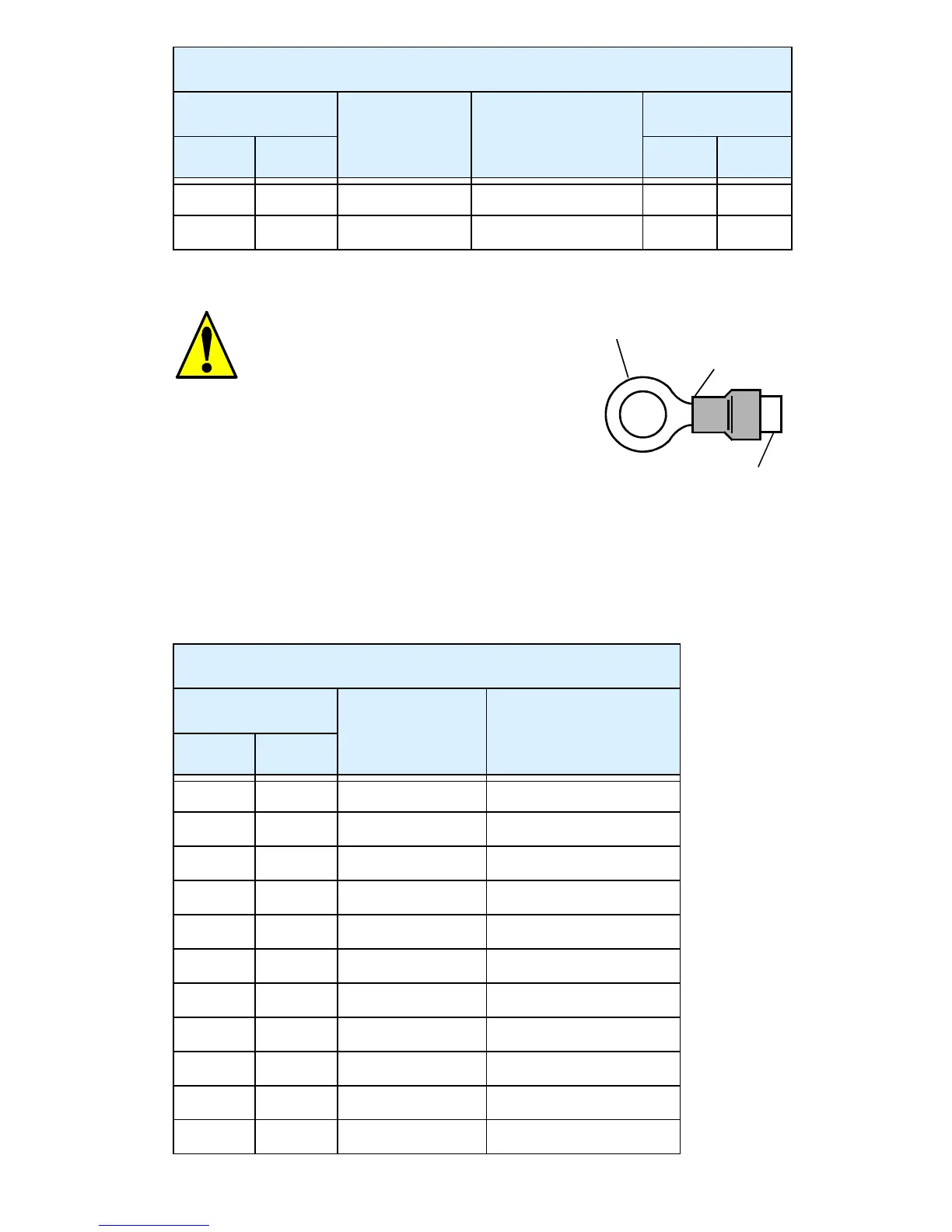

Wire Connectors
Warning: Field wiring connections
must be made by a UL Listed and CSA
Certified ring lug terminal connector
sized for the wire gauge being used.
The connector must be fixed using the
crimping tool specified by the con-
nector manufacturer.
Fuse and Circuit Breaker Sizes
The inverter’s input power wiring must include UL Listed, dual-element,
600V fuses, or UL Listed, inverse-time, 600V circuit breakers.
132 175 –1320HFU/E 3/0 || 3/0 10.1 13.7
150 200 –1500HFU/E 3/0 || 3/0 10.1 13.7
200V Models
Motor output
Inverter
Model
Ampere Rating for
Fuse or Breaker
kW HP
0.4 1/2 –004LFU 10
0.75 1 –007LFU 10
1.5 2 –015LFU 10
2.2 3 –022LFU 15
3.7 5 –037LFU 20
5.5 7 1/2 –055LFU 30
7.5 10 –075LFU 40
11 15 –110LFU 60
15 20 –150LFU 80
18.5 25 –185LFU 100
22 30 –220LFU 125
400V Models
Motor output
Inverter
Model
Wire Size (AWG)
Torque
kW HP ft-lbs (N-m)
Terminal (ring lug)
Cable support
Cable
