OPS PC (Optional Built In PC)
Disconnect the Display from the power supply before connecting or disconnecting the OPS. Failure to do so may
cause damage to the OPS and/or the Display.
players. It may be based on x86 or ARM structure. This Panel complies with both structures. The OPS size
is standard (180 mm x 119 mm x 30 mm)

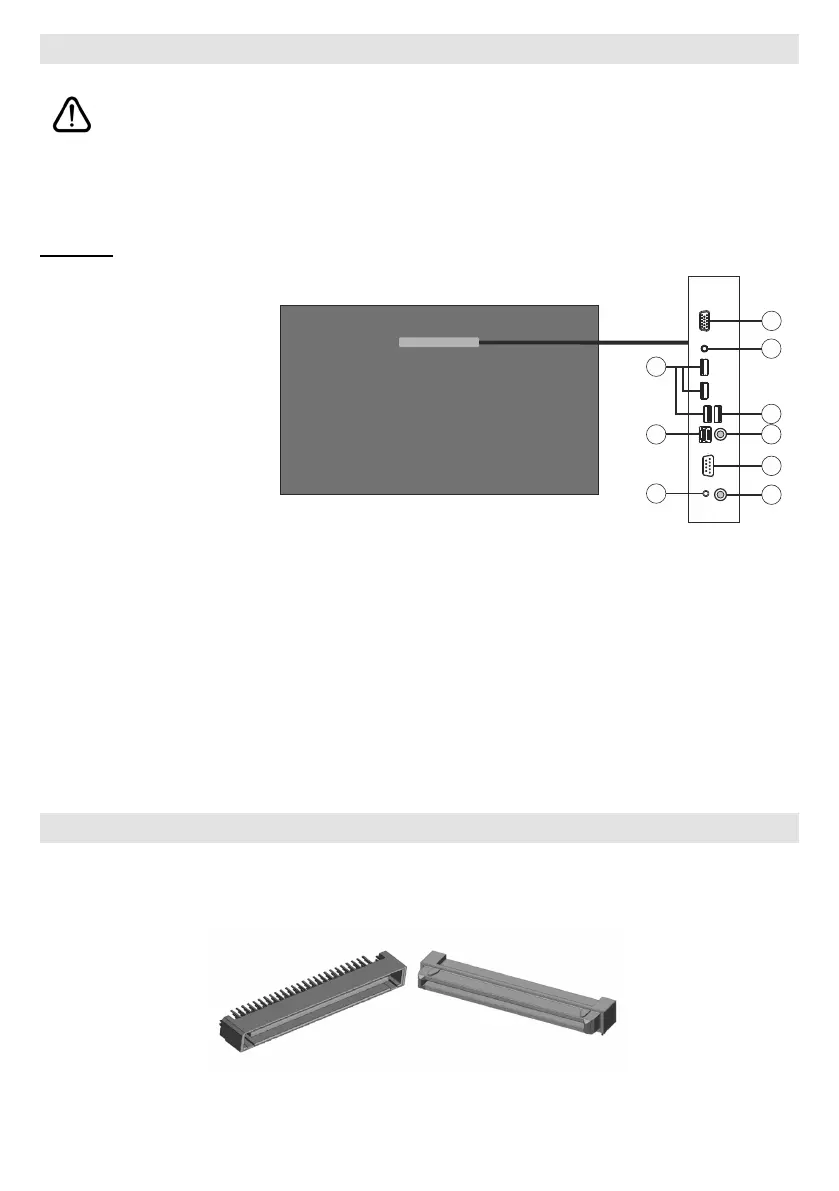

Rear Side
1. VGA
2. Microphone / Headphone
(3.5mm jack)
3. USB 2.0 port
4. WiFi Antenna Connector
5. RS232
6. WiFi Antenna Connector
7. 3 x USB 3.0 ports
8. RJ45 10/100/1000 Mbps
Ethernet
9. On/Off Button
1
5
3
2
7
6
4
8
9
USB 2.0 / USB 3.0 Ports
Use a commercially available USB cable to bidirectional transfer data.
Lan Terminal/Ethernet
Use commercially available Ethernet cable to connect Local Area Network.
Microphone and Headphone terminals
Use Microphone terminal to record the sounds.
Wi-Fi Antenna
Connect a wireless antenna to this connector.
OPS Connection Scheme
Connection Scheme refers to both Intel and ARM OPS PC. OPS PC has an 80 pin OPS standard connection
board…) is provided by JAE TX24/TX25 plug and receptacle connectors.
Left: OPS PC plug connector (p/n: TX25-80P)
Right: Receptacle connector (p/n: TX24-80P)
