Example 5

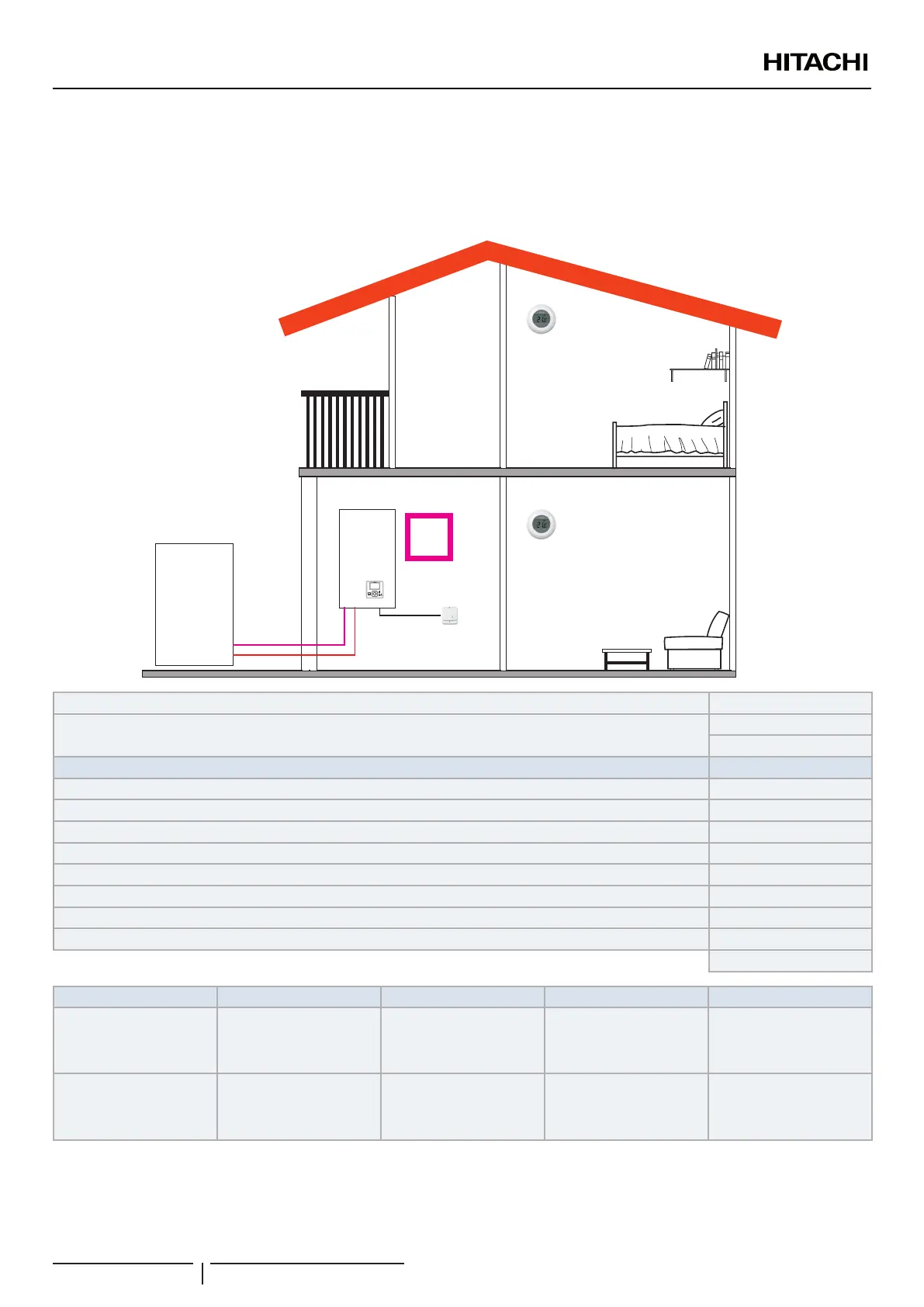

1- Master unit controller as unit conguration
2- Wireless intelligent thermostat for zone 1 (ATW-RTU-04) (Receiver + Room thermostat)
3- Wireless intelligent thermostat for zone 2 (ATW-RTU-06) (Only Room thermostat)
OK
Indoor unit
1
Living room Zone 1
Bedrrom Zone 2
Order FIRST
Type
Master
Unit + Circuits
Questions Answers
Is this device attached to the unit? NO
Is this device used as a Room Thermostat of a zone? YES, IN BOTH ZONES
Which are the emitters of circuit 1? Underoor heating
Which are the emitters of circuit 2? Underoor heating
Do you have domestic hot water tank? NO
Do you have swimming pool? NO
Do you have boiler? NO
Do you have electric backup heater? NO
COMPLETED
CODE Description Default Value Range Selected value
Thermostat 1 (otC1) Thermostat 1 -
None
C1
C2
C1+C2
C1
Thermostat 2 (otC2) Thermostat 2 -
None
C1
C2
C1+C2
C2
UNIT CONTROLLER
PMML0335A rev.1 - 04/2016
128
