RAS-(8/10)WHNPE + RWM-(8.0-10.0)NE
Nº Part name
1 Compressor
2 Air side heat exchanger
3 Accumulator
4 OU electronic expansion valve
5 4-way valve
6 Solenoid valve for gas by-pass
7 OU refrigerant strainer
8 Distributor
9 Refrigerant check joint
10 High pressure switch for protection
11 Sensor for refrigerant pressure
Nº Part name
12 Stop valve for gas line
13 Stop valve for liquid line
14 Check valve
15 Pressure switch for control
16 Ambient thermistor
17 Discharge gas thermistor
18 Pipe thermistor
19 OU refrigerant gas connection
20 OU refrigerant liquid connection
21 IU refrigerant strainer
22 IU electronic expansion valve
Nº Part name
23 Water side heat exchanger
24 Water electric heater
25 Low pressure switch
26 Air purger
27 Safety valve
28 Drain pipe
29 Expansion vessel
30 Expansion vessel drain port
31 Water pump
32 Manometer
33 Water strainer
Nº Part name
34 IU refrigerant gas connection
35 IU refrigerant liquid connection
36 Water inlet connection
37 Water outlet connection
38 Shut-off valve (Accessory)
39 Gas pipe thermistor (Heating)
40 Liquid pipe thermistor (Heating)
41 Water inlet thermistor
42 PHEX water outlet thermistor
43 Water outlet thermistor
Refrigerant
Heating refrigerant ow Cooling refrigerant ow Water ow (Heating/Cooling) Field supplied piping line Flare nut connection Brazed connection R410A
Outdoor unit
YUTAKI S

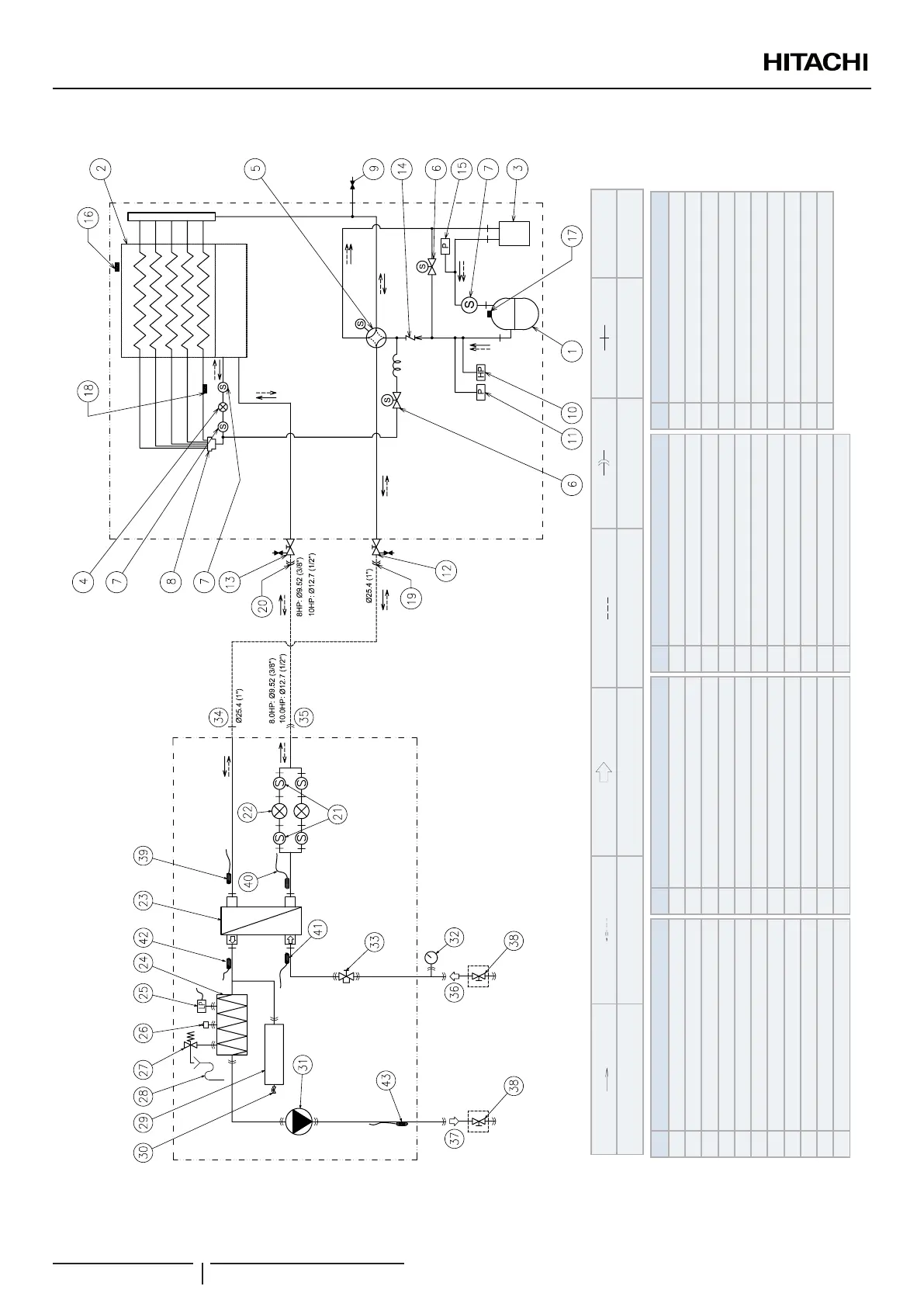

REFRIGERANT CYCLE AND HYDRAULIC CIRCUIT
PMML0335A rev.1 - 04/2016
