6.3 Extendable media shelf (model-specic)

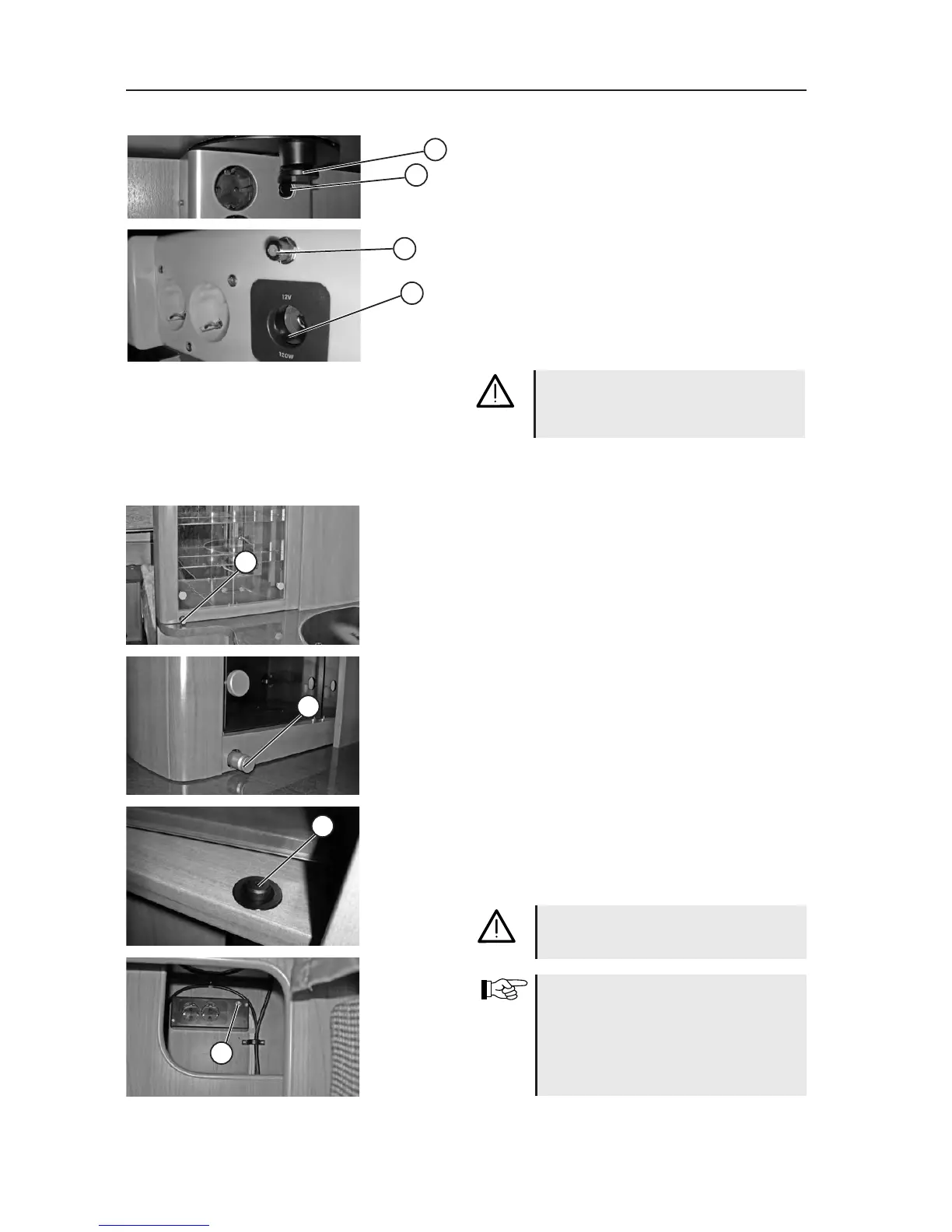

The extendable media shelf is an extendable,
pivot-mounted room divider which can be used
both as a bar and as a TV cabinet for at screens.
To pull out the room divider, pull the knob
n
out; to secure the room divider when it has been
pulled out, push the knob back in. To pivot the
upper part of the media unit, pull on the pin
j
;
after turning the unit 180°, press and lock the pin
to secure the unit.
The LED lighting in the bar is switched on and off
using the ambience lighting on the control panel.
The 230 V sockets and the antenna terminal
l
for the TV and the receiver are located under the
extendable media shelf in a separately accessi-
ble compartment.
While driving, the extendable media
shelf must be recessed and secured.
The cables for the antenna termi-
nals of both the TV cupboards and
the external socket of the outer tent
converge loosely in the clothes cup-
board to enable you to hook up the
TV sets individually.
3
5
5
1
3
4
2
1
While driving, the media oval must
always be well secured and locked
into place.
The switch
k
for turning the LED lighting for the
bar on and off is located directly beneath the me-
dia oval next to the 230 V sockets for the kitchen.
In most models, the lighting for the bar cannot be
turned on and off using the control panel.
The 230 V sockets as well as the antenna terminal
l
for the television and the receiver are located
underneath the media oval in the top compart-
ment of the kitchen L-element. The 12 V socket
m
shown in the photo is not included in standard
delivery. (It can be ordered as an option.)
