07-11
7.3 Electrical supply

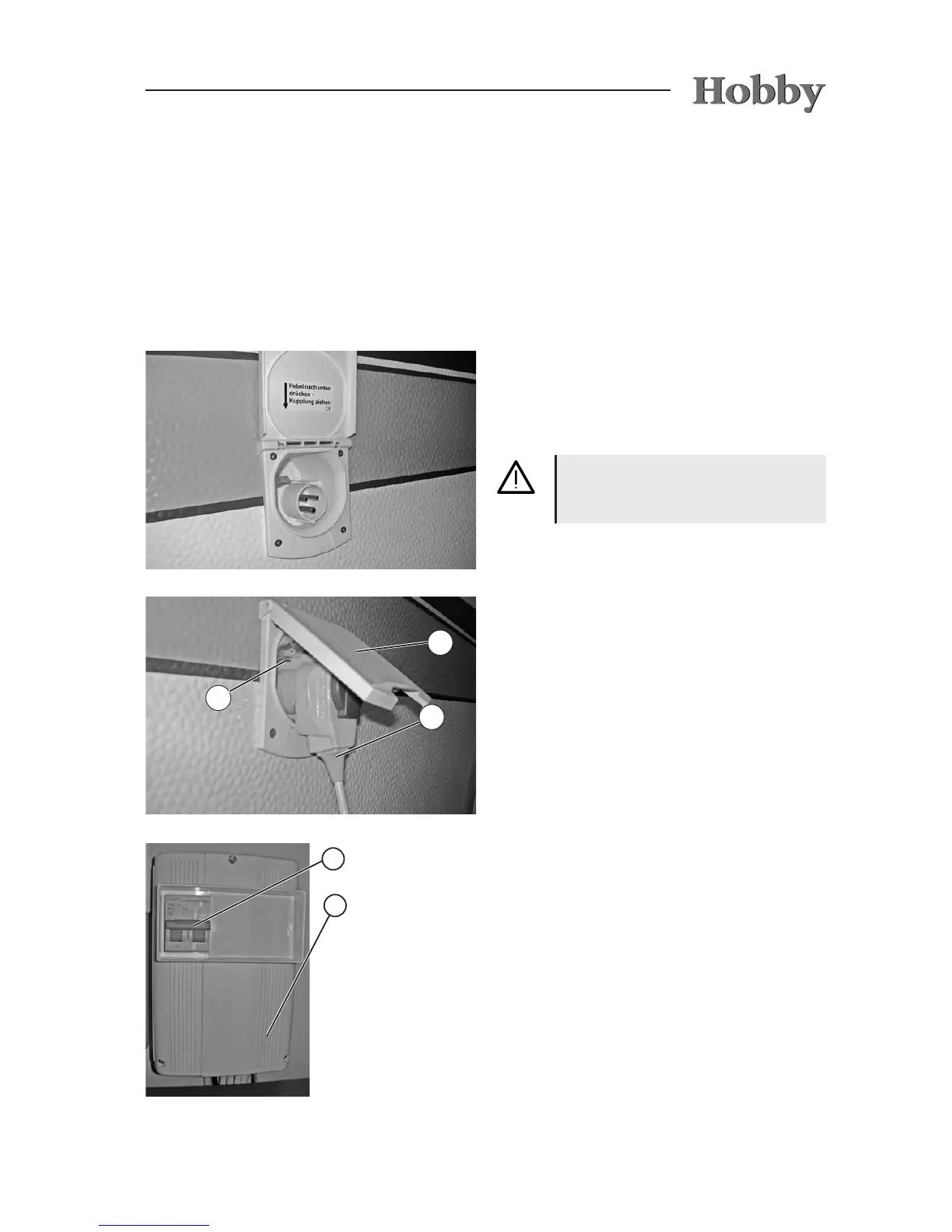

Supply via mains connection
The camper receives its electric power supply
via the 230 V CEE feeder plug on the side wall of
the vehicle.
To set up an electric connection
• Pull out the 13-pole plug that connects to the
base vehicle.
• Switch off the automatic circuit breaker
m
by
pressing the rocker button down
n
.
• Take hold of the bottom of the cover ap of
the external socket
j
and pull it up.
• Completely unwind the connector cable, at-
tach the plug
k
and click it into place.
•
Switch the automatic circuit breaker
m
back on.
To disconnect the electric connection
• Switch off the automatic circuit breaker
m
by
pressing the rocker button down
n
.
• Press the lever
l
in the external socket
down.
• Remove the CEE plug
k
.
• Press the cover ap
j
down until it clicks
into place.
The 230 V system is protected by a two-pole 13
A automatic circuit breaker
m
, which is loca-
ted in the clothes cupboard. (Exceptions to this
include special installations, such as ultraheat,
hot-water heating, etc.. In this case, an addi-
tional two-pole 16 A circuit breaker has been
installed.) If there are two automatic circuit brea-
kers, both must be switched on.
Electricity for the camper can be obtained from
the following connections:
- 230 V mains connection 50 Hz
- via the base vehicle if it is connected using
the 13-pole plug (limited functions)
- via a built-in auxiliary battery (special request)
Everything that uses 12 V, such as lighting,
water supply, etc., is available.
2
1
3
4
5
The external 230 V supply must be
protected by a residual current device
(RCD).
