Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK (0 and
check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

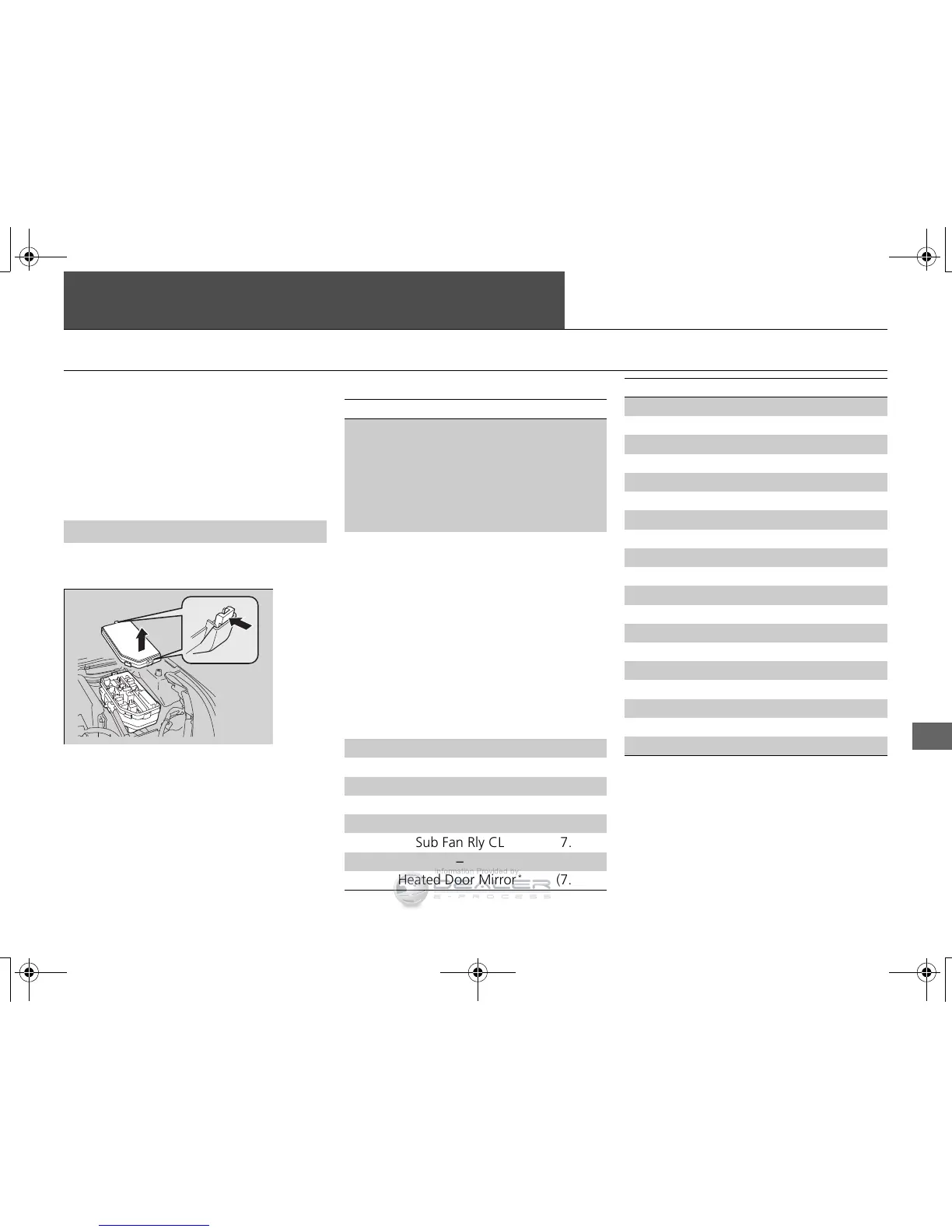

Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse Box
■ Circuit protected and fuse rating
Circuit Protected Amps
1
EPS 70 A
− −
ABS/VSA Motor 40 A
ABS/VSA FSR 20 A
E-DPS
*
(30 A)
Main Fuse 100 A
2
IG Main 50 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A
Headlight Main 30 A
− −
Rear Defogger 30 A
−−
Blower 40 A
Front Wiper Main 30 A
Sub Fan Motor 20 A
Main Fan Motor 20 A
3 − −
4− −
5 − −
6− −
7 − −
8 Sub Fan Rly CL 7.5 A
9 − −
10 Heated Door Mirror
*
(7.5 A)
11 STRLD 7.5 A
12 Fog Lights
*
(20 A)
13 Premium Amp
*
(20 A)
14 Horn 10 A
15 Hazard 10 A
16 Stop 10 A
17 IG Coil 15 A
18 IGP2 15 A
19 − −
20 − −
21 − −
22 DBW 15 A
23 IGP 15 A
24 Left Headlight Low Beam 10 A
25 Right Headlight Low Beam 10 A
26 SMALL 20 A
27 MG Clutch 7.5 A
28 Interior Lights 7.5 A
29 Backup 10 A
Circuit Protected Amps
