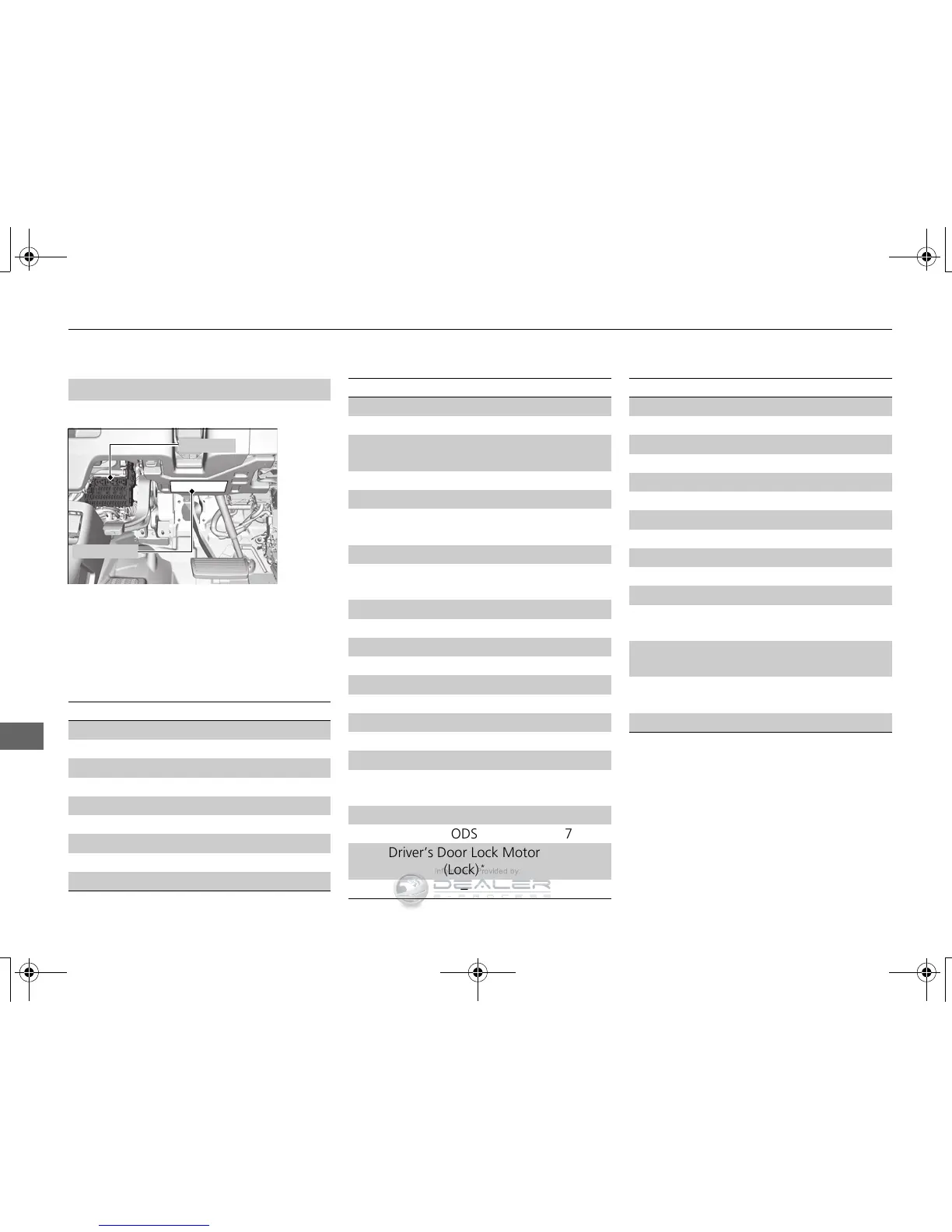

Located under the dashboard.
Fuse locations are shown on the label on
the cover.
Locate the fuse in question by the fuse
number and label number.
■ Circuit protected and fuse rating
■
Interior Fuse Box
Circuit Protected Amps
1 − −
2 ACG 10 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 10 A
6 Power Window 7.5 A
7 VB SOL 7.5 A
8 Door Lock Motor 2 (Unlock) 15 A
9 Door Lock Motor 1 (Unlock) 10 A
10 Trailer
*
(7.5 A)
11 Moonroof
*
(20 A)
12
Accessory Power Socket
(Center Console)
*
(15 A)
13 − −
14 Seat Heaters
*
(20 A)
15
Driver’s Door Lock Motor
(Unlock)
10 A
16 Driver's Power Seat Sliding
*
(20 A)
17
Driver's Power Seat
Reclining
*
(20 A)
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 A/C 7.5 A
23 Rear Wiper 10 A
24 ABS/VSA 7.5 A
25 Audio 10 A
26 − −
27
Accessory Power Socket
(Front)
15 A
28 Washer 15 A
29 ODS 7.5 A
30
Driver’s Door Lock Motor
(Lock)
*
10 A
31 − −
Circuit Protected Amps
32 Door Lock Motor 2 (Lock) 15 A
33 Door Lock Motor 1 (Lock) 15 A
34 Small Lights 10 A
35 Illumination 7.5 A
36 − −
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 TPMS 7.5 A
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Passenger’s Side
Power Window
20 A
44
Front Passenger’s Side
Power Window
20 A
45
Rear Driver’s Side Power
Window
20 A
46 − −
Circuit Protected Amps
